janitza UMG 511 Installation And Commissioning

13
UMG 511
Ethernet Connection

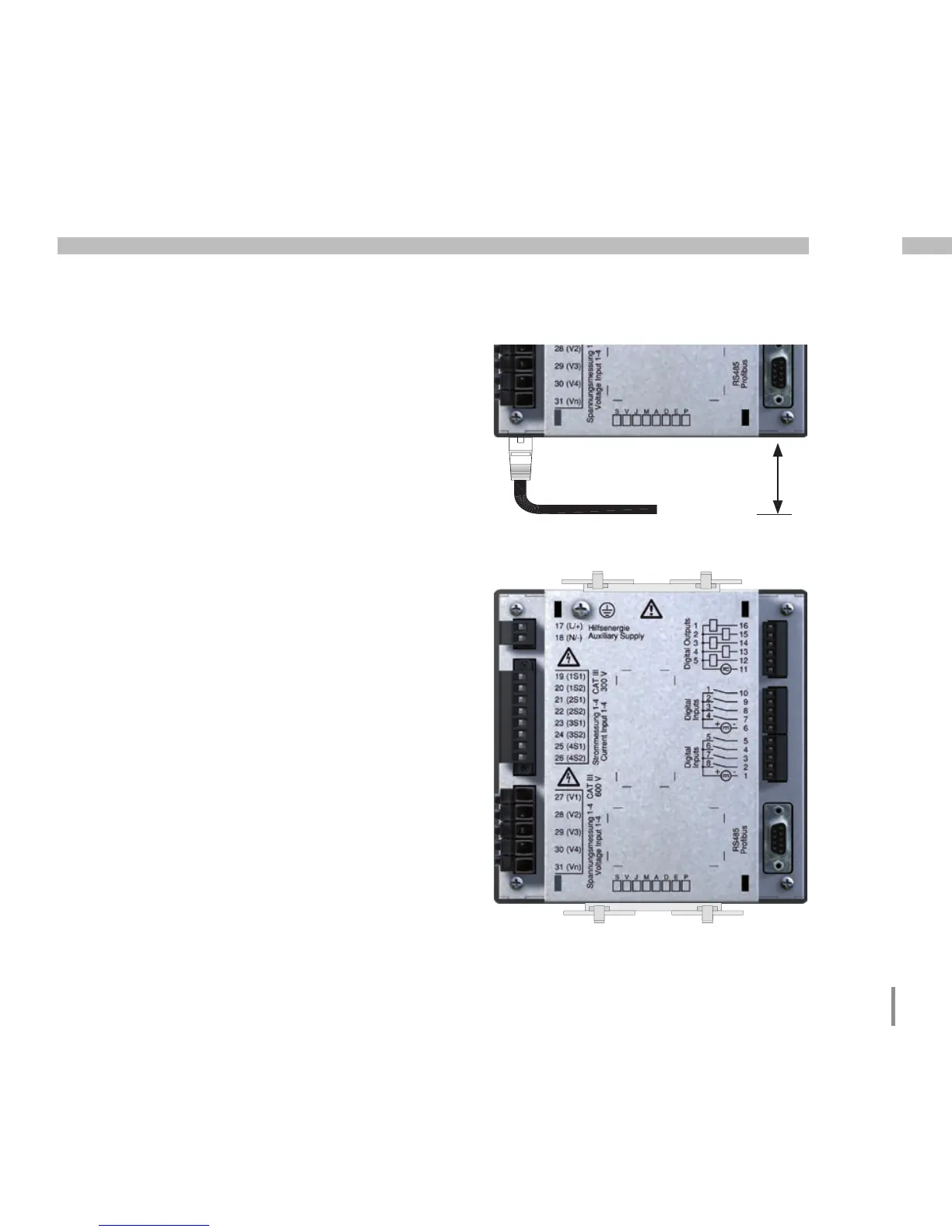

The UMG511‘s Ethernet connection is located
on the underside of the housing.
Depending on the bending radius of the Ether-
net cable and plug type, you must provide a
connection area beneath the UMG511.
The connection area beneath the UMG511
should not be less than 50 mm.
Fixing
The UMG511 is fi xed into the switch board with
two fi xing clips that are each mounted on the
device at the top and bottom.
Ethernet Connection
Patch Cable
50 mm
Fixing Clips
Fixing Clips
