40
UMG 511
Operation

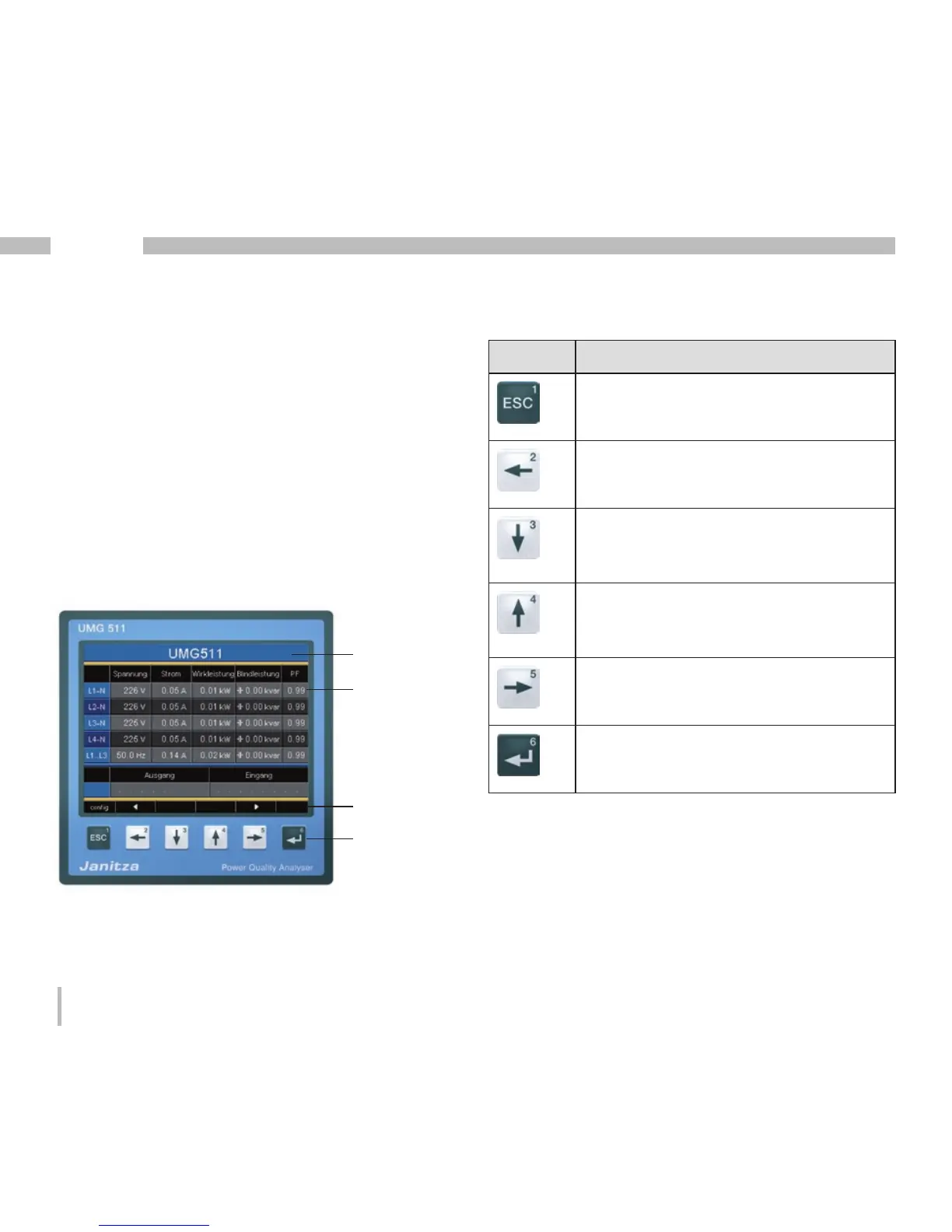

The UMG511 is operated using six function keys.
The six keys are allocated different functions de-
pending on the context:
Selection of measurement value displays.
Navigation within the menu.
Processing the device settings.
Function key
labeling
Display titles
Measurement
values
Function keys
Explanation of buttons
Button Function
Return to first screen (Home)
Exit menu
Select number
Select main values (U, I, P ...)
Change (number -1)
Select secondary values
Select menu point
Change (number +1)
Select secondary values
Select menu point
Select number
Select main values (U, I, P ...)
Open selection menu
Confirm selection
