UMG 511
Digital inputs
The UMG511 has 8 digital inputs. The digital in-
puts are divided into two groups, each with 4 in-
puts. Each group has a joint reference.

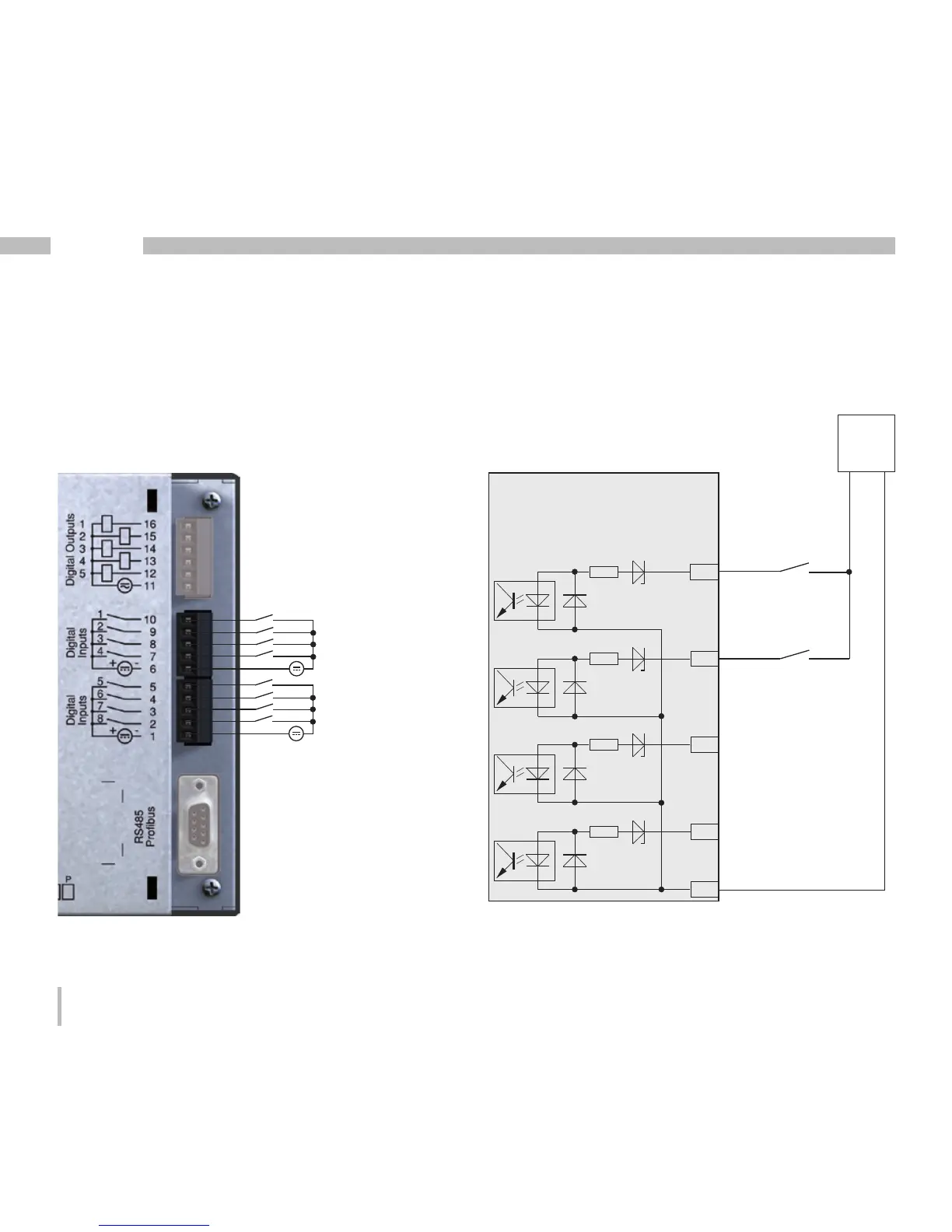

Fig. example for the connection of the external
contacts S1 and S2 to the digital inputs 1 and 2.
24V
DC
-
+
External
Auxiliary voltage
S1
S2
UMG511
Digital Inputs 1-4
3,9V
4k
10
Digital
Input 1
Digital
Input 3
Digital
Input 2
Digital
Input 4
3,9V
3,9V
3,9V
4k
4k
4k
9
8
7
6
-
+
-
+
Fig. example of the con-
nection of digital inputs
