janitza UMG 511 Installation And Commissioning

16
UMG 511
Voltage measurement
Three-phase 4 conductor system
The UMG511 can be used in a three-phase 4 con-
ductor system (TN, TT networks) with an earthed
neutral wire. The bodies of the electrical systems
are earthed.
Three-phase 3 conductor system
The UMG511 is only restrictedly suitable for use
in IT networks because the measurement voltage
is measured against the housing potential and the
input impedance of the device causes a leakage
current against earth. The leakage current can
cause the insulation monitoring in IT networks to
respond.
The connect variations with voltage converter are
suitable for use in IT networks without any restric-
tions.

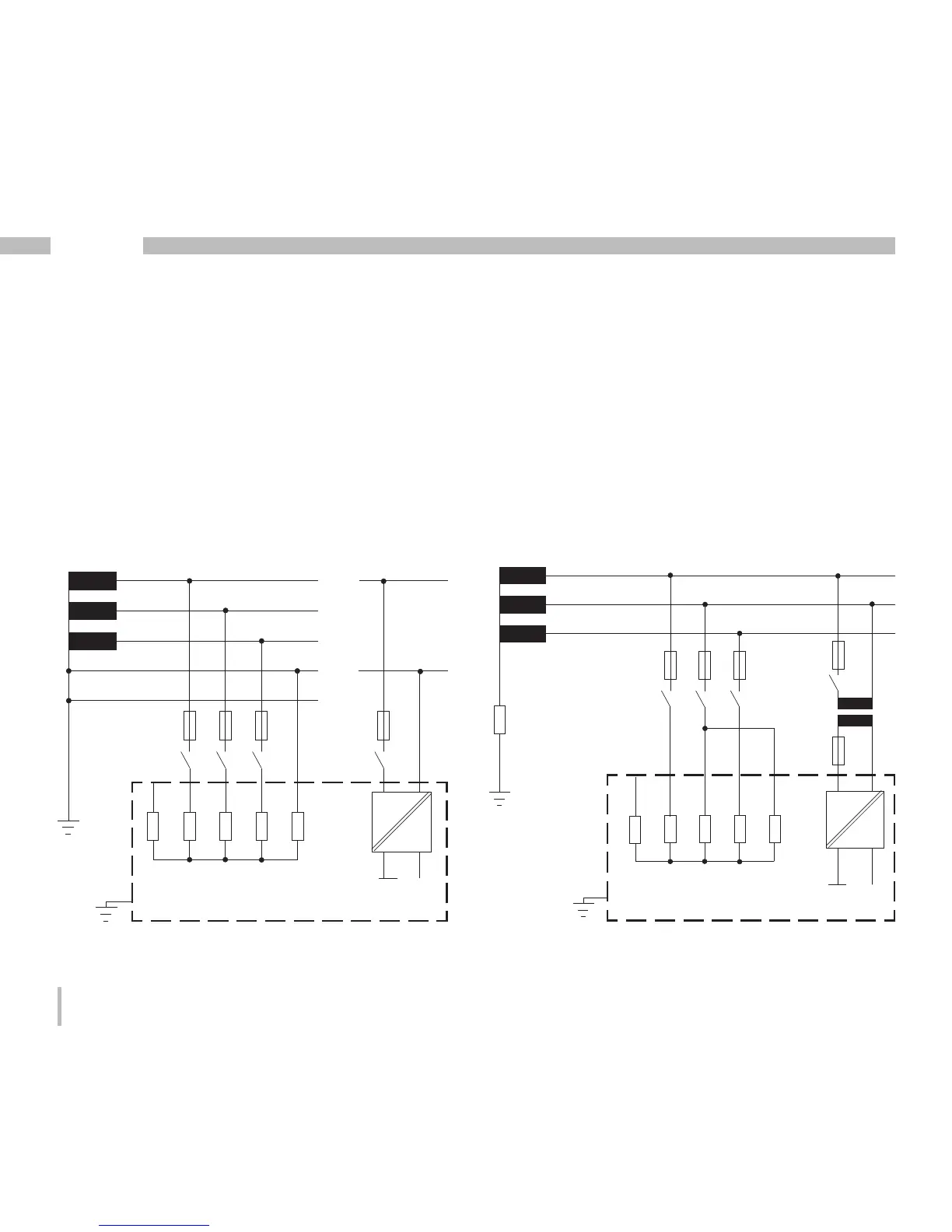

Fig. principle circuit diagram, UMG511 in the
TN network.
Fig. principle circuit diagram, UMG511 in the IT
network without N.
PE
347V/600V 50/60Hz
L2
L3
N
L1
N
L1
240V
50/60Hz
System
grounding
DC
AC/DC
Auxiliary energy
Voltage measurement
4M
4M
4M 4M
V1 V3V2 Vref
4M
V4
UMG 511
600V 50/60Hz
DC
AC/DC
L2
L3
Auxiliary energy
Voltage measurement
4M
4M
4M 4M
V1
V3V2
4M
V4
System
grounding
Impedance
L1
UMG511
Vref
