47
UMG 511

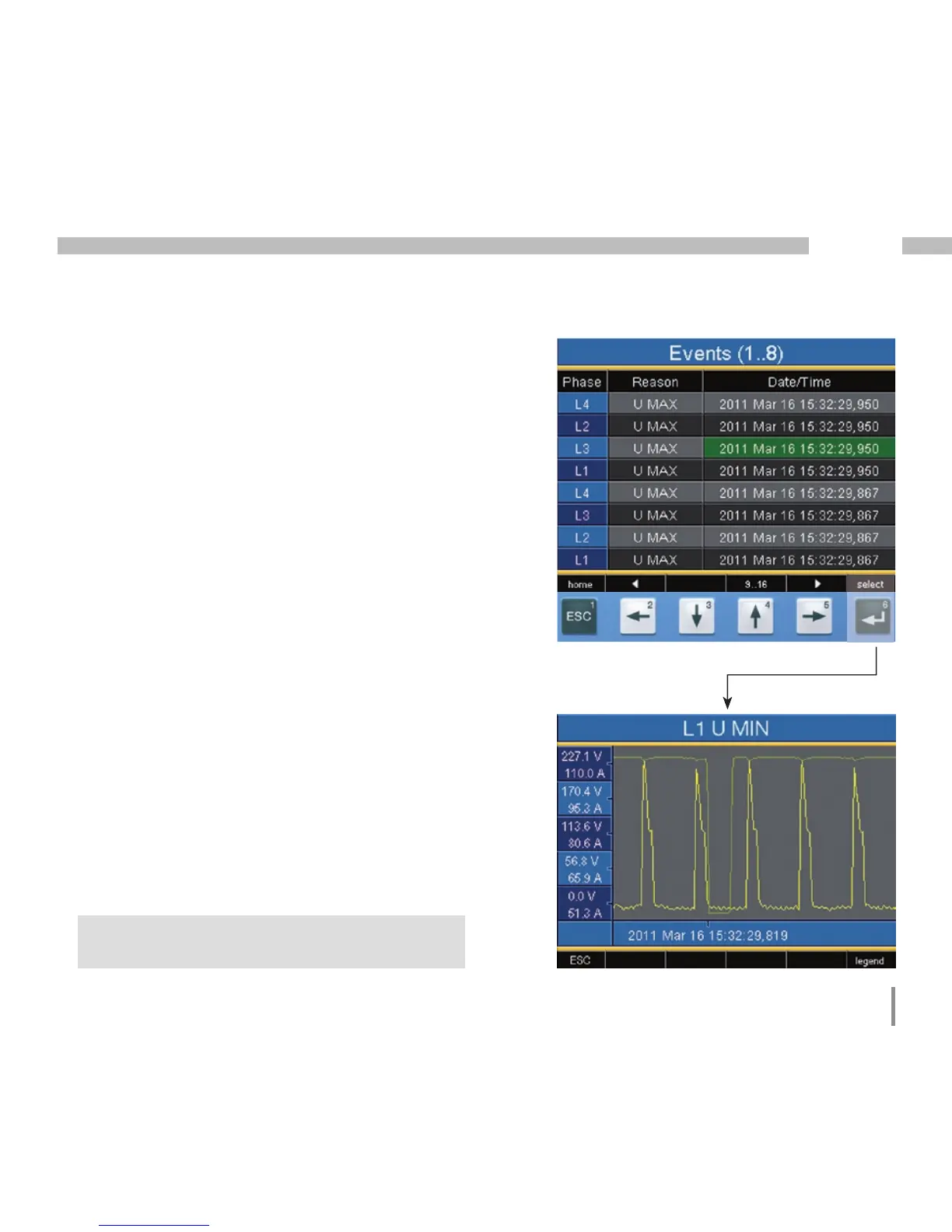

List of events
Recognized events are listed in the events list.
• The events list consists of 2 pages.
• Events 1 to 8 are listed on page 1 and events
9 to 18 on page 2.
Display incident
• Browse with keys 2 or 5 to the main value
display „Transients“.
• Select with key 4 the required page.
• Go to the events list with key 6 (select) and
select an event with keys 3 or 4.
• Allow the incident to be graphically presented
with key 6 (enter).
• Show or hide the legends with key 6 (legends).
• You can exit the graphic presentation of the
transients with key 1 (esc).
Events are limit value violations of effective
current and voltage values.
