55
UMG 511

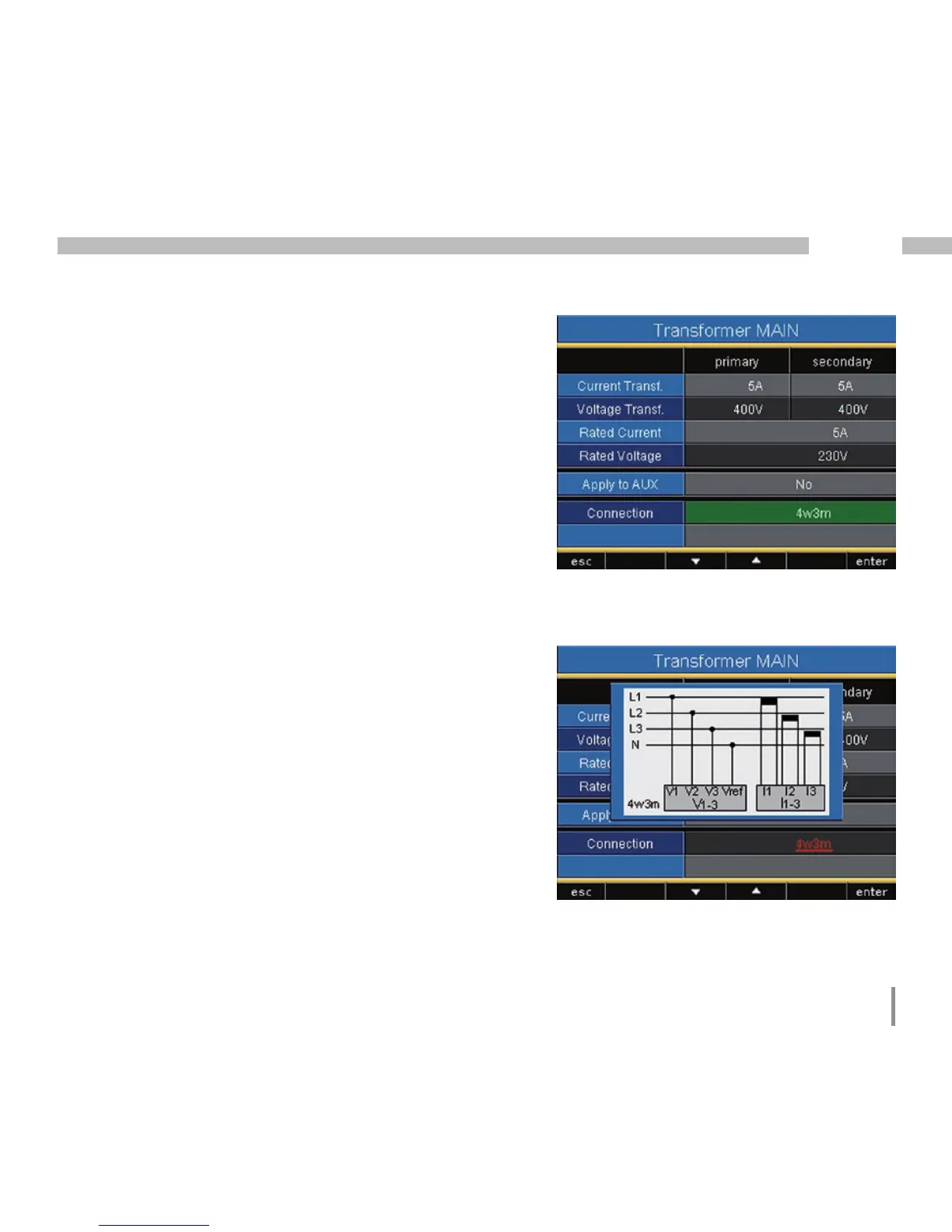

Connection
For the voltage and current measurement, you can
select between different connection diagrams.
(see page 20).
Factory pre-setting: 4w3m
Fig. measurement in a three-phase 4 con-
ductor network with asymmetrical load.
Accepting AUX / MAIN
The measuring transducer can be configured for
main and auxiliary measurement. You can accept
the measuring transducer settings in each case
from the auxiliary or main measurement.
• No - The settings from the auxiliary and main
measurement will not be accepted
• Yes - The settings from the auxiliary and main
measurement will be accepted.
