77
UMG 511
Voltage and current have a
difference of approximately
180° in the phase.

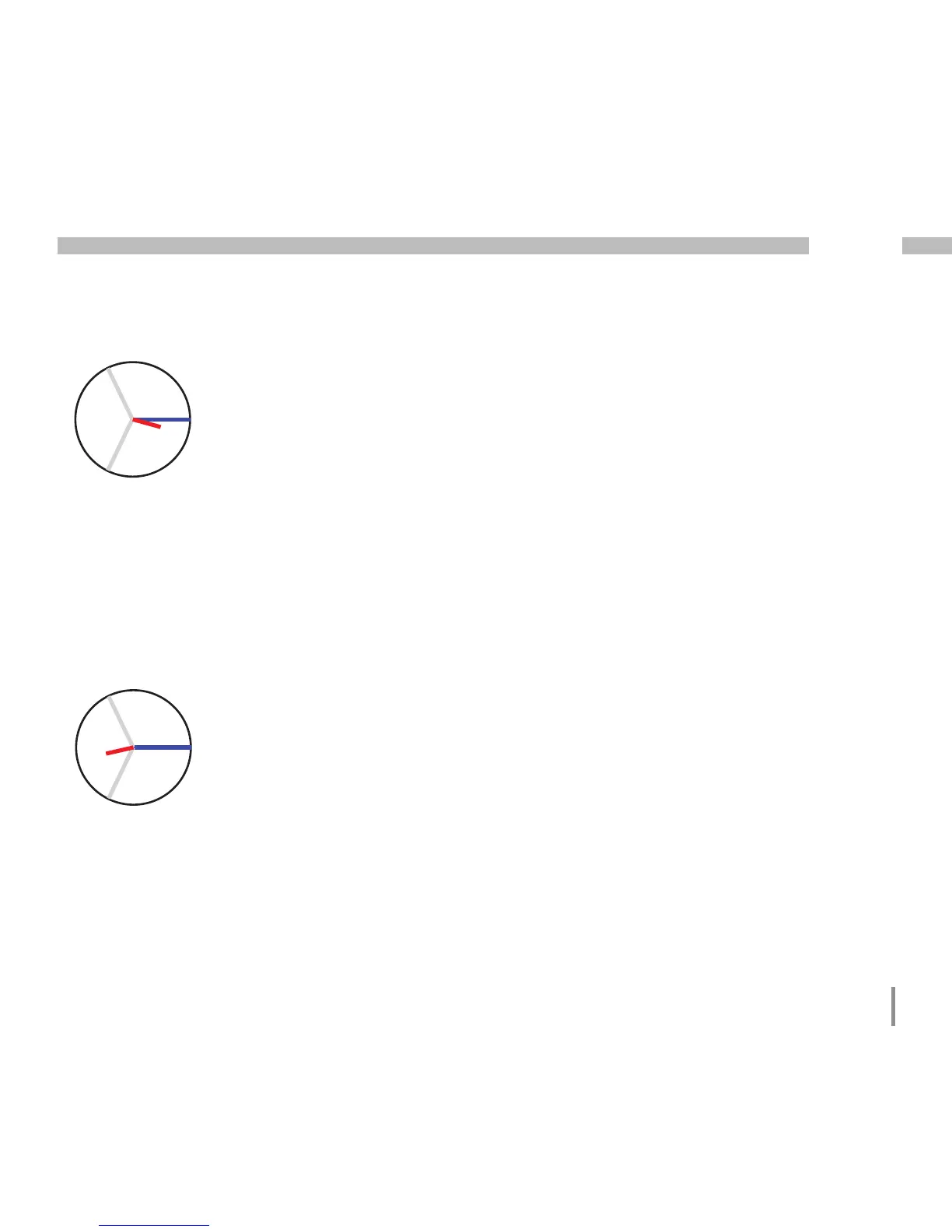

Pointer diagram, example 2
Primarily ohmic load.
• The current measurement input is allocated
to the right voltage measurement input.
• In this current measurement, the connections
k and l are swapped over or there is a return
feed into the supplier network
Voltage and current only
have a minor difference in the
phase.
Pointer diagram, example 1
Primarily ohmic load.
• The current measurement input is allocated
to the right voltage measurement input.
