Replacing electronic components
DC motor
NOTE:
Do not disconnect connectors by pulling on cord.
To disconnect the connectors, grasp the connector,
not the cord.
To remove:
1. Remove the belt cover, the top cover and the front
cover (see pages 1, 2 and 5).
2. Disconnect the DC motor connector from the printed
circuit board A (see page 8).
3. Remove the motor belt.
4. Remove the setscrews (2 pcs), and the DC motor.
To attach:
1. Attach the DC motor and slightly tighten the setscrews.
2. Attach the motor belt and adjust the belt tension.
Push the middle of the belt span with approximately
200 grams pressure. Adjust the motor position so that
the belt deects 5 mm.
3. Tighten the setscrews securely.
4. Connect the DC motor connector to the printed circuit
board A (see page 7).
5. Attach the front cover, the top cover and the belt cover.

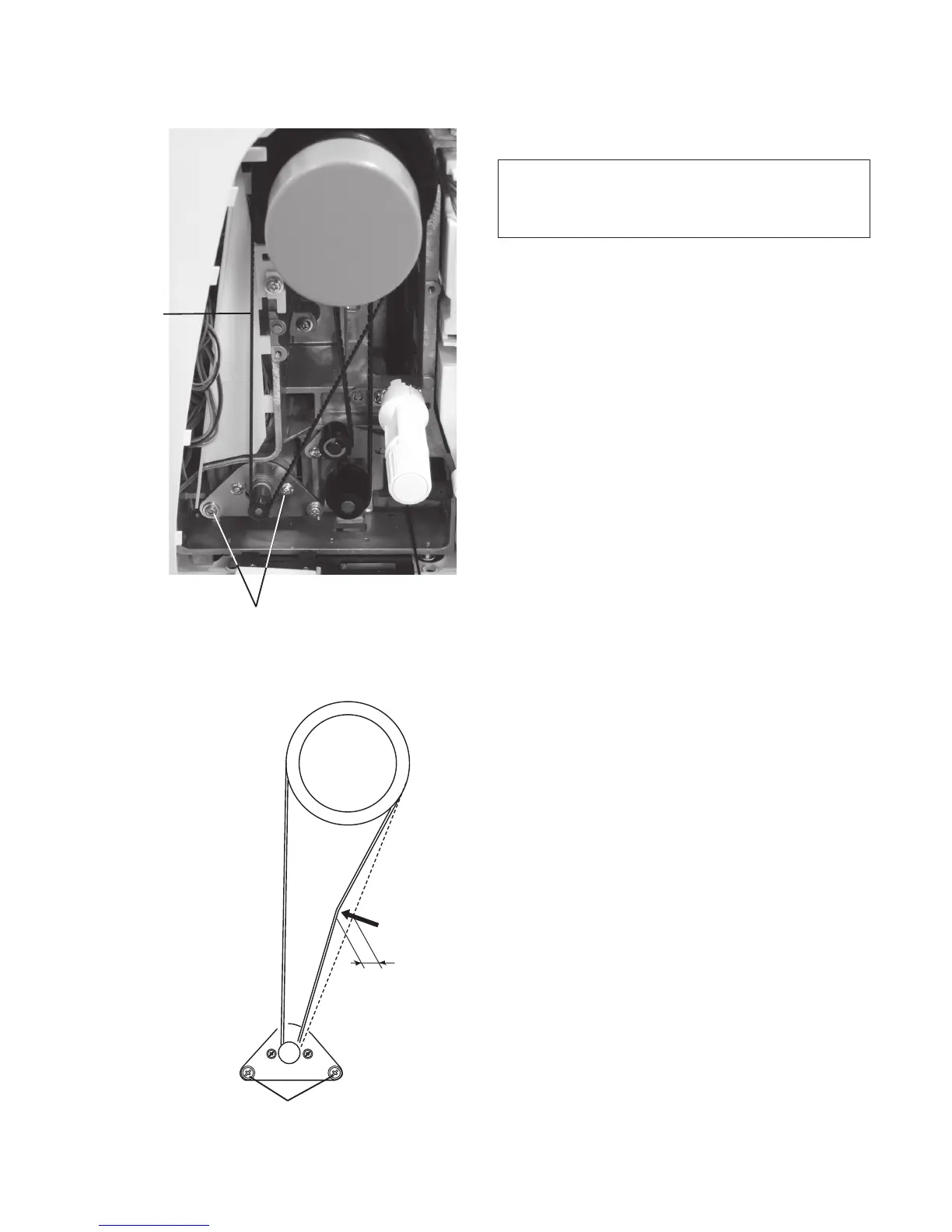

Setscrews
Setscrews
Motor belt
200 gr pressure
5 mm
