Replacing external parts
Rear cover
To remove:

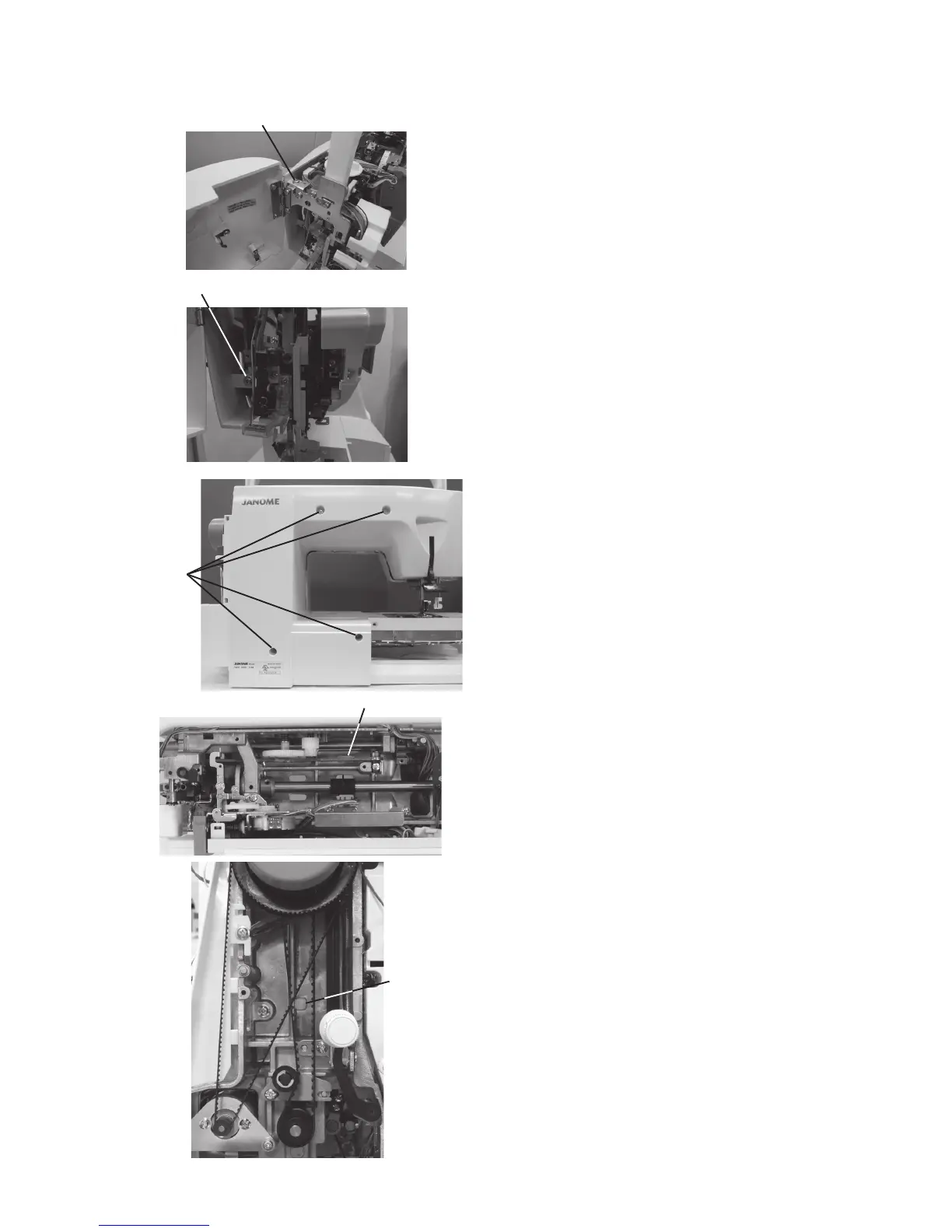

1. Lower the presser foot. Remove the belt cover, top
cover and base cover (see pages 1-3).
2. Loosen the setscrew A.
3. Loosen the setscrew B
4. Remove the four setscrews C.
5. Push the rear cover from the holes D and E with a
screwdriver to remove the hook of rear cover.
6. Remove the rear cover.
To attach:
Follow the above procedure in reverse.
Setscrew A
Setscrew B
Setscrew C
Hole D
Hole E
