Thread drawing lever
5.5 – 6.0 mm
Hexagonal socket bolt
Hook race
View A
Thread drawing lever
View A
Hook race

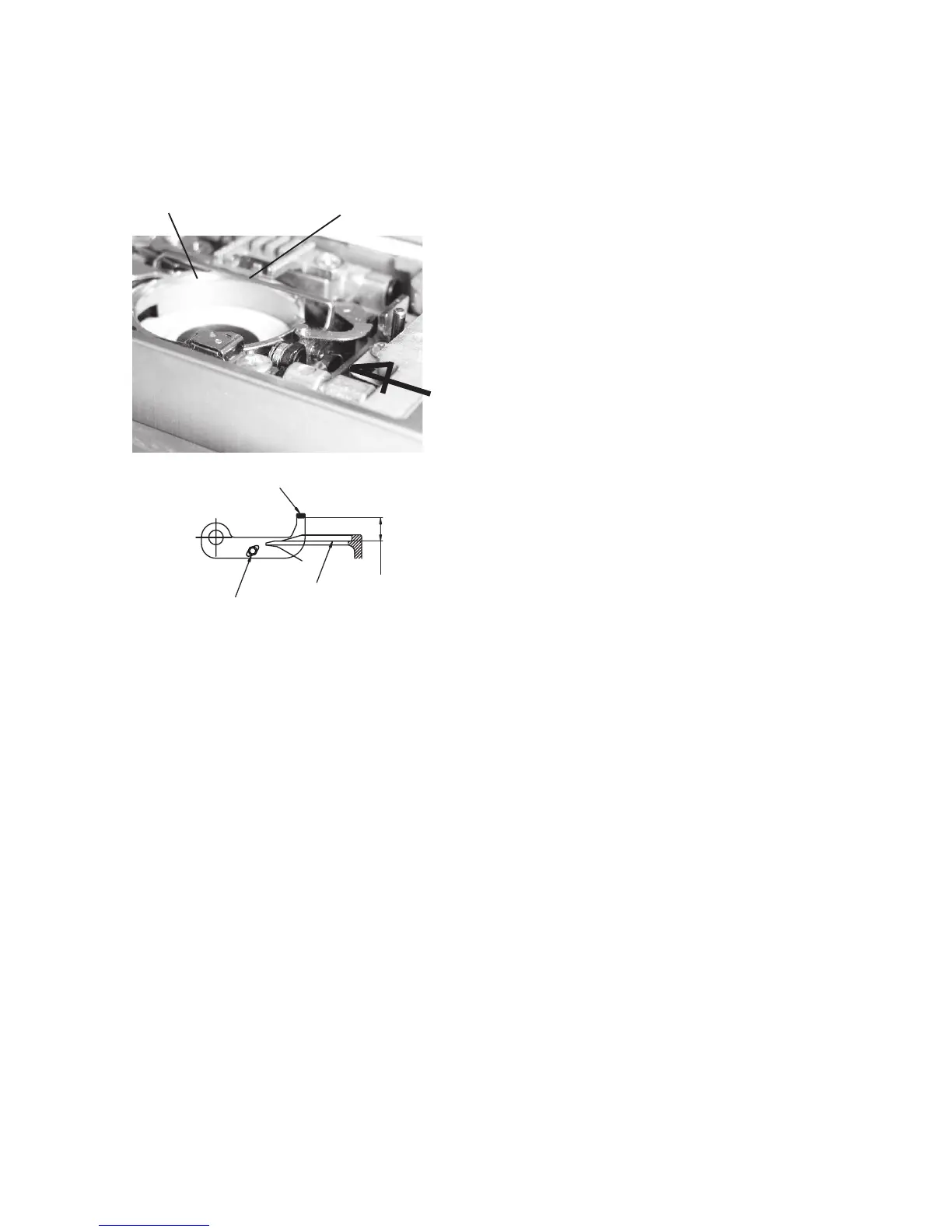

Mechanical adjustment
Thread drawing lever
The standard height of the thread drawing lever from the surface of bobbin holder should be in the range of 5.5 – 6.0
mm.
1. Remove the presser foot, the needle plate and the
bobbin holder.
2. Loosen the hexagonal socket bolt (use an Allen
key of 1.5 mm width across ats) . Adjust the distance
between the lower part of thread drawing lever and
the hook race to 5.75 mm by moving the thread
drawing lever up or down.
3. Tighten the hexagonal socket bolt.
