5
Replacing external parts

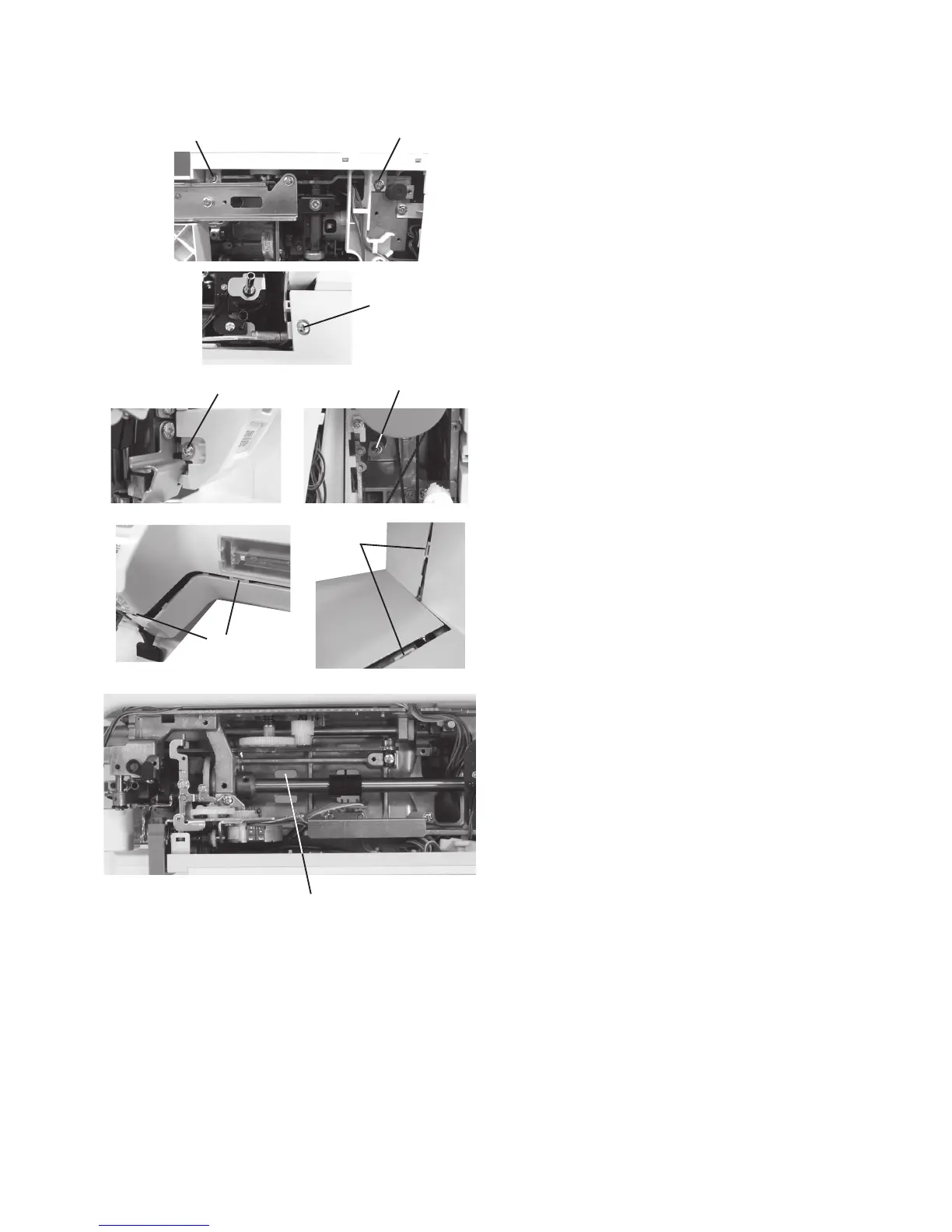

Front cover
To remove:
1. Remove the top cover, belt cover, base cover, machine
base and free arm cover (see pages 1-4).
2. Loosen the setscrews A (underside of the machine).
3. Remove the setscrew B.
4. Loosen the setscrew C (behind the face cover).
5. Loosen the setscrew D (inside of the machine body).
6. Unlock the hooks from the front cover.
7. While pushing the rear cover through the hole A with a
screwdriver, remove the front cover.
Remove the connectors from the circuit board A.
To attach:
Follow the above procedure in reverse.
Refer to page 8 for locating connector posts.
Setscrew A
Setscrew A
Setscrew B
Setscrew D
Setscrew C
Hooks
Hooks
Hole A
