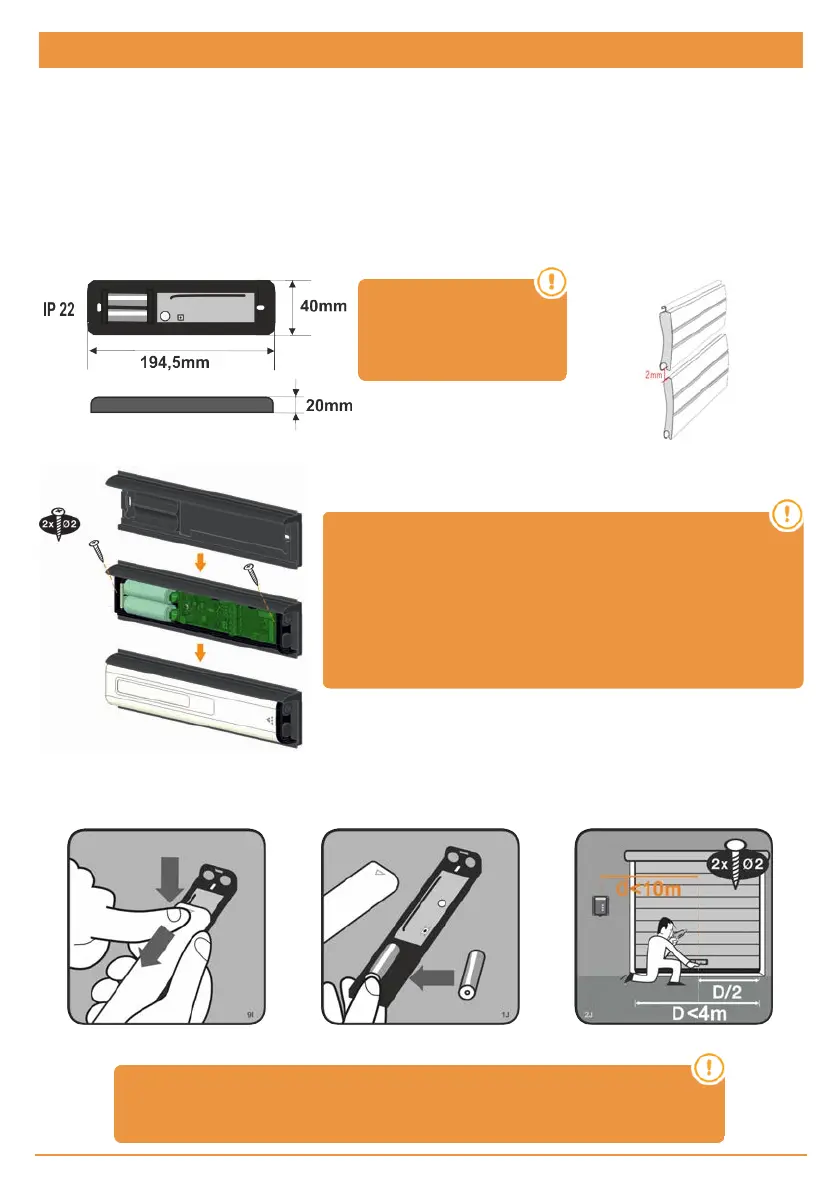

RadioSens3 System
Installation
Install the transmitter following the steps and recommendations below. Pass the cables through the holes indicated (only if you
use the lock connection).
Install the transmitter in a horizontal position, at the middle of the last slat (it must have a tolerance of minimum 2mm of
movement). Avoid placing metallic surfaces between the receiver and the transmitter.
It is recommended to use limit switches in the installation and to have them properly connected, or to assure that the door will
stop always at the same point. The speed of the door must be uniform.
Options and sensibility selectors must be set before programming. Any later change will have no effect.
The last slat must have a
tolerance of minimum
2mm of movement.
First, place the visor on the surface of the door to use it as
template to make the holes in the door.
Then place the bottom part of the device. Screw the two
pieces together.
Finally close the equipment with the top cover.
Control panel detects automatically the limit switches in the tubular motor. An adjustment of the limit switches before Radi-
oSens3 installation is requested.
SWIPE TO OPEN COVER REMOVE COVER DRILL DOOR
Maximum width of the door: 4 m. Recommended door speed:
0.1m/s or higher (and 17 rpm motors).
