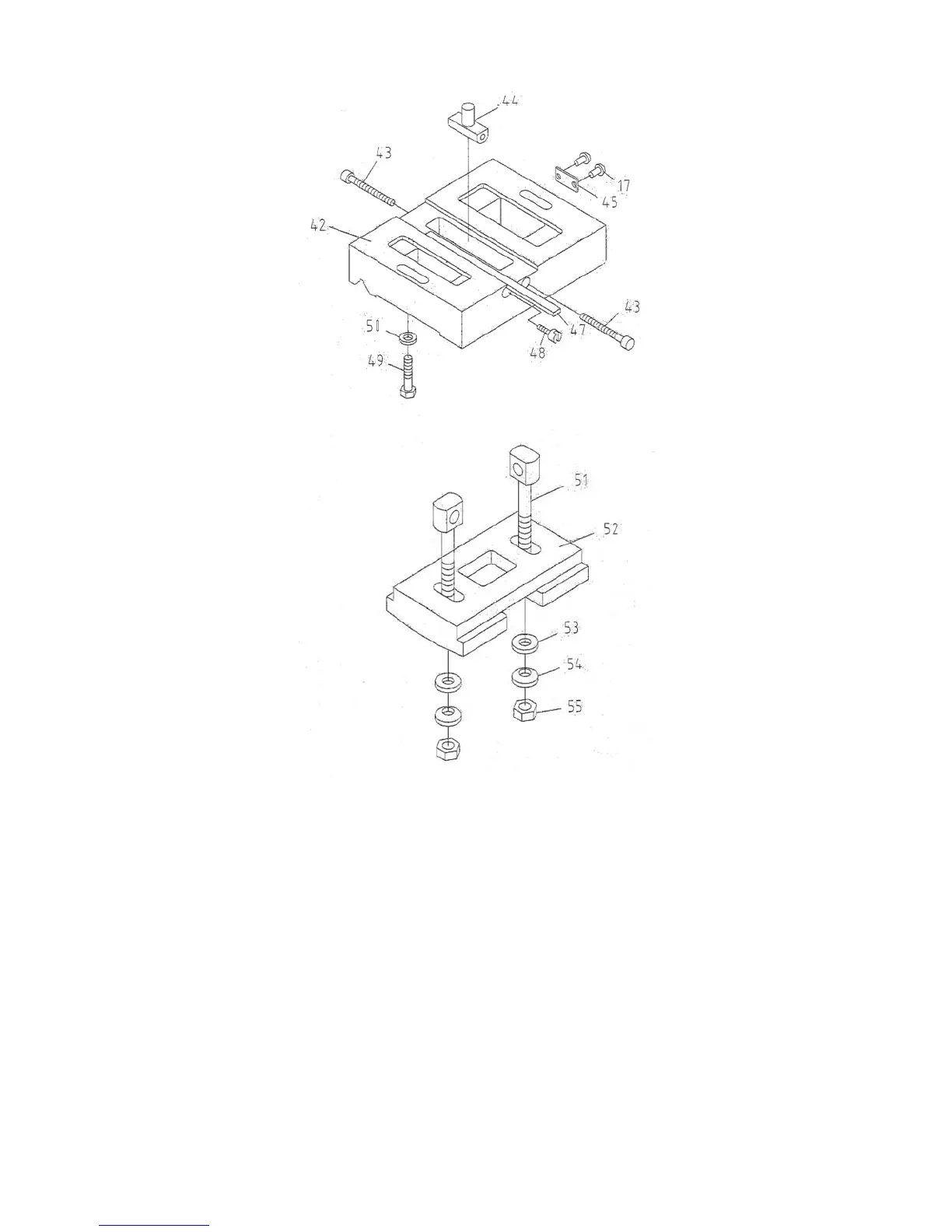

21.0 Tailstock Assembly II – Exploded View
21.1 Tailstock Assembly II – Parts List
IndexNo. PartNo. Description Size Qty
42 .............. 1640ZK-1942 ............ Sliding Base ...................................................... ............................................. 1
43 .............. GB70-8x80 ................ Hex Socket Cap Screw ..................................... M8x80 .................................. 2
44 .............. 1640ZK-1944 ............ Nut .................................................................... ............................................. 1
45 .............. 1640ZK-1945 ............ Scale Plate........................................................ ............................................. 1
47 .............. 1640ZK-1947 ............ Gib .................................................................... ............................................. 1
48 .............. ZX-03718C ................ Adjusting Screw ................................................ ............................................. 2
49 .............. TS-1491121 .............. Hex Cap S crew ................................................. M10 x70 ................................ 2
50 .............. TS-1550071 .............. Flat Washer ...................................................... 10 mm .................................. 2
51 .............. 1640ZK-1951 ............ Pulling Rod ....................................................... ............................................. 2
52 .............. 1640ZK-1952 ............ Clamping Bracket ............................................. ............................................. 1
53 .............. ZX-T28 ...................... Taper Washer ................................................... 16 mm .................................. 2
54 .............. ZX-T29 ...................... Spherical Washer ............................................. 16 mm .................................. 2
55 .............. TS-2310162 .............. Hex Nut ............................................................. M16 ...................................... 2
