54
28.0 Electrical Components – Parts List

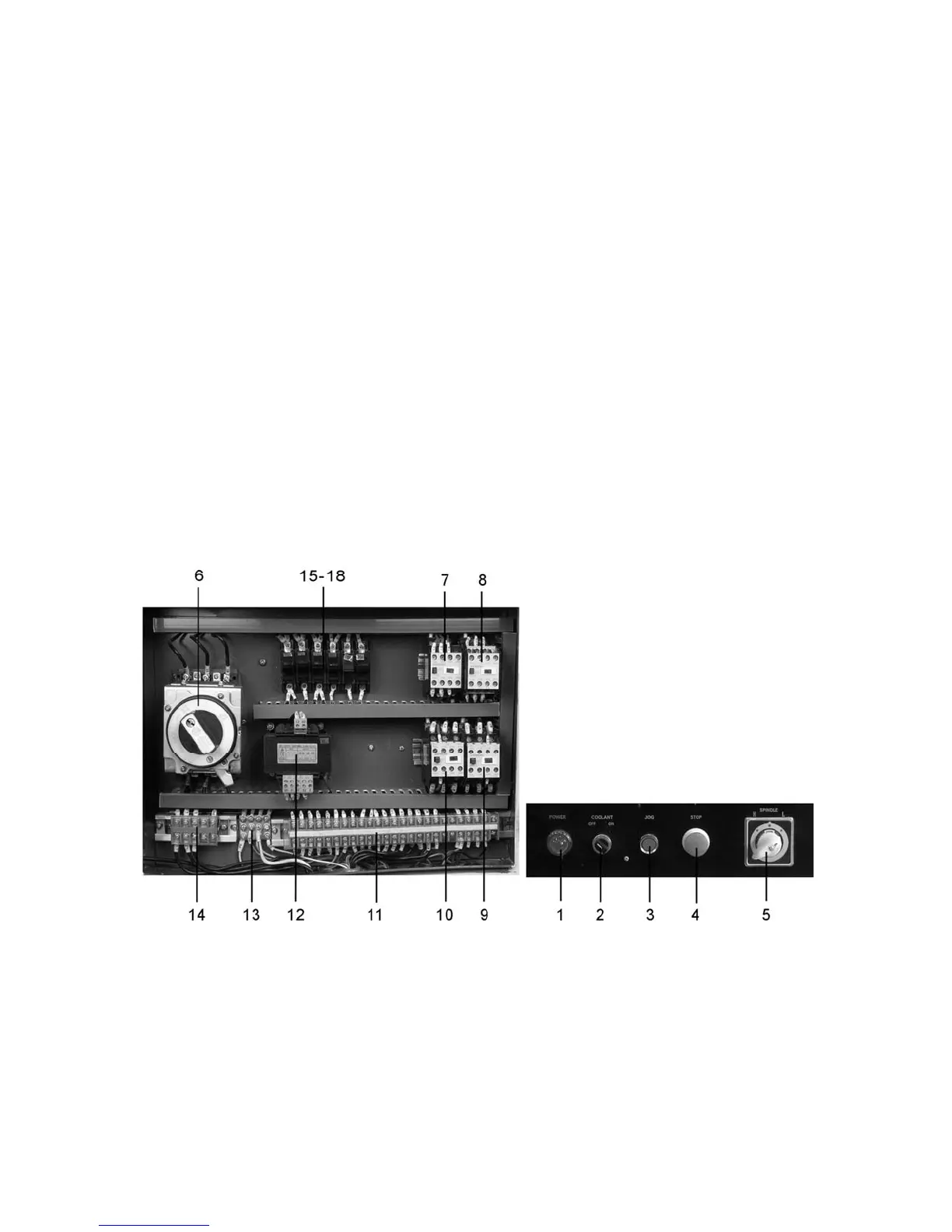

(Index numbers are shown below; diagram numbers are shown on following page.)
IndexNo. DiagramNo. PartNo. Description Size Qty
1......... ........ HL .................... ZK-HL .............. Power Indicator Light ......................... AD11-30/20 ........................ 1
2 ................. SA2 .................. ZX-SA2 ............ Coolant Pump Switch ........................ LAY3-11X/2 ........................ 1
3 ................. SB2 .................. ZX-SB1 ............ Jog Button ......................................... LAY3-11 ............................. 1
4 ................. SB1 .................. ZK-SB1 ............ Emergency Stop Button ..................... LAY3-01ZS/1 ..................... 1
5 ................. SA1 .................. ZK-SA1 ............ Commutator Switch ........................... LW5D-16 ............................ 1
6 ................. QF .................... ZK-QF ............. Master Switch (40A) .......................... DZ15-40 ............................. 1
7 ................. KA .................... ZK-KA .............. A.C. Contactor ................................... 3TH80 ................................ 3
8 ................. KM3 ................. ZK-KM3 ........... A.C. Contactor ................................... 3TB40 ................................ 1
9 ................. KM2 ................. ZX-KM3 ........... A.C. Contactor ................................... 3TB43 ................................ 1
10 ............... KM1 ................. ZX-KM3 ........... A.C. Contactor ................................... 3TB43 ................................ 1
11 ............... XT2 .................. ZX-XT2 ............ Wiring Board ...................................... JX0 ..................................... 1
12 ............... TC .................... ZK-TC .............. Control Transformer .......................... JBK5-100-TH ..................... 1
13 ............... XB .................... ZK-XB .............. Copper Plate (for grounding) ............. ........................................... 1
14 ............... XT1 .................. ZX-XT1 ............ Wiring Board ...................................... JT1 ..................................... 1
15 ............... FU1 .................. ZK-FU1 ............ Fuse (2A) ........................................... am1-16 ............................... 1
16 ............... FU2 .................. ZK-FU2 ............ Fuse (3A) ........................................... am1-16 ............................... 1
17 ............... FU3 .................. ZK-FU1 ............ Fuse (2A) ........................................... am1-16 ............................... 1
18 ............... FU4 .................. ZK-FU2 ............ Fuse (3A) ........................................... am1-16 ............................... 1
19 ............... SQ2 .................. ZK-SQ2 ........... Limit Switch ....................................... JW2-11H/W1 ...................... 1
20 ............... SA3 .................. ZX-SA3 ............ Rotary Switch .................................... HZ3-452 ............................. 1
21 ............... EL .................... ZK-EL .............. Machine Lamp ................................... JC11-1 ............................... 1
To Next Page
