Jet GH-1640ZK User Manual

49

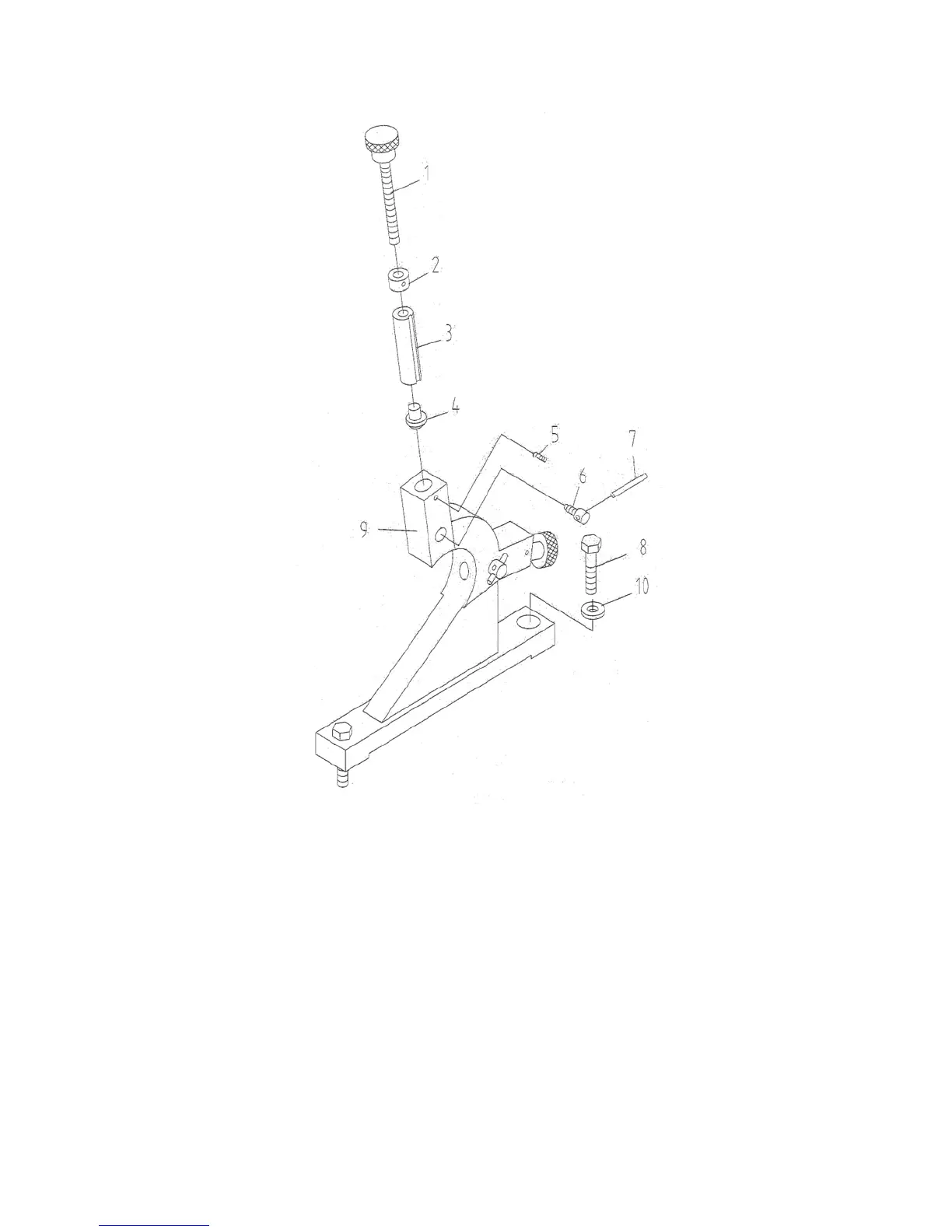

23.0 Follow Rest Assembly – Exploded View
23.1 Follow Rest Assembly – Parts List
IndexNo. PartNo. Description Size Qty
.................. ZK-FRA16 ................. Follow Rest Assembly (index #1-9) ......................... ...................................... 1
1 ................ 1640ZK-2101 ............ Screw ....................................................................... ...................................... 2
2 ................ 1640ZK-2102 ............ Nut ........................................................................... ...................................... 2
3 ................ 1640ZK-2103 ............ Sliding Sleeve .......................................................... ...................................... 2
4 ................ 1640ZK-2104 ............ Supporting Piece ..................................................... ...................................... 2
5 ................ ZX-SR05 ................... Slotted Set Screw .................................................... M6x10 ........................... 4
6 ................ 1640ZK-2106 ............ Locking Screw ......................................................... ...................................... 2
7 ................ 1640ZK-2107 ............ Handle ..................................................................... ...................................... 2
8 ................ ZX-FR8...................... Hex Cap Screw ........................................................ M12x55 ......................... 2
9 ................ 1640ZK-2109 ............ Follow Rest Casting ................................................. ...................................... 1
