7.0 Unpacking
Open shipping container and check for shipping
damage. Report any damage immediately to your
distributor and shipping agent. Do not discard any
shipping material until the Lathe is set up and
running properly.
Compare the contents of your container with the
following parts list to make sure all parts are intact.
Missing parts, if any, should be reported to your
distributor. Read the instruction manual thoroughly
for set up, maintenance and safety instructions.
7.1 Contents of the Shipping Container
(Refer to Figure 3)
1 Lathe
1 Steady Rest (mounted on Lathe)
1 Follow Rest (mounted on Lathe)
1 Three Jaw Scroll Chuck, 8” (mounted on
Lathe) – A
1 Drive Plate 8” – B
1 Four Jaw Independent Chuck, 10” – C
1 Face Plate, 16” – D
1 Tool Box, containing the following:
1 Morse Reduction Sleeve 6/4 – E
1 Live Center, MT-4 – F
1 Dead Center, MT-4 – G
1 Crossfeed Handle – H
2 Shear Pins – I
1 Cam Wrench – J
1 Chuck Wrench – K
1 Tool Post Wrench – L
1 Gap Bridge Pin Driver – M
1 Taper Piece – N
2 Round Nut Spanners (100-110,
115-130 mm) – O
1 Hex Key Set (2.5,3,4,5,6,8,10) – P
5 Fuses (2A,3A) – Q
8 Leveling Bolts with Hex Nuts – R
8 Leveling Pads – S
1 Flat Blade Screwdriver – T
1 Cross Point Screwdriver – U
2 Open End Wrenches (10-12,9-11,
12-14,17-19) – V
1 Gear, 3.5m36T – W
1 Adjustable Wrench – X
1 White Touch-up Paint Can – Y
1 Oil Gun – Z
1 Indicator bulb 110V (not shown)
1 Operating Instructions Manual
1 Parts List Manual
1 Warranty Card
1 Test Record
1 Packing List
NOTE: Optional accessories are available for JET Lathes, such as Taper Attachment, Collet Closer and
Digital Read Out. Contact your dealer or Walter Meier (Manufacturing) Inc., for more information.

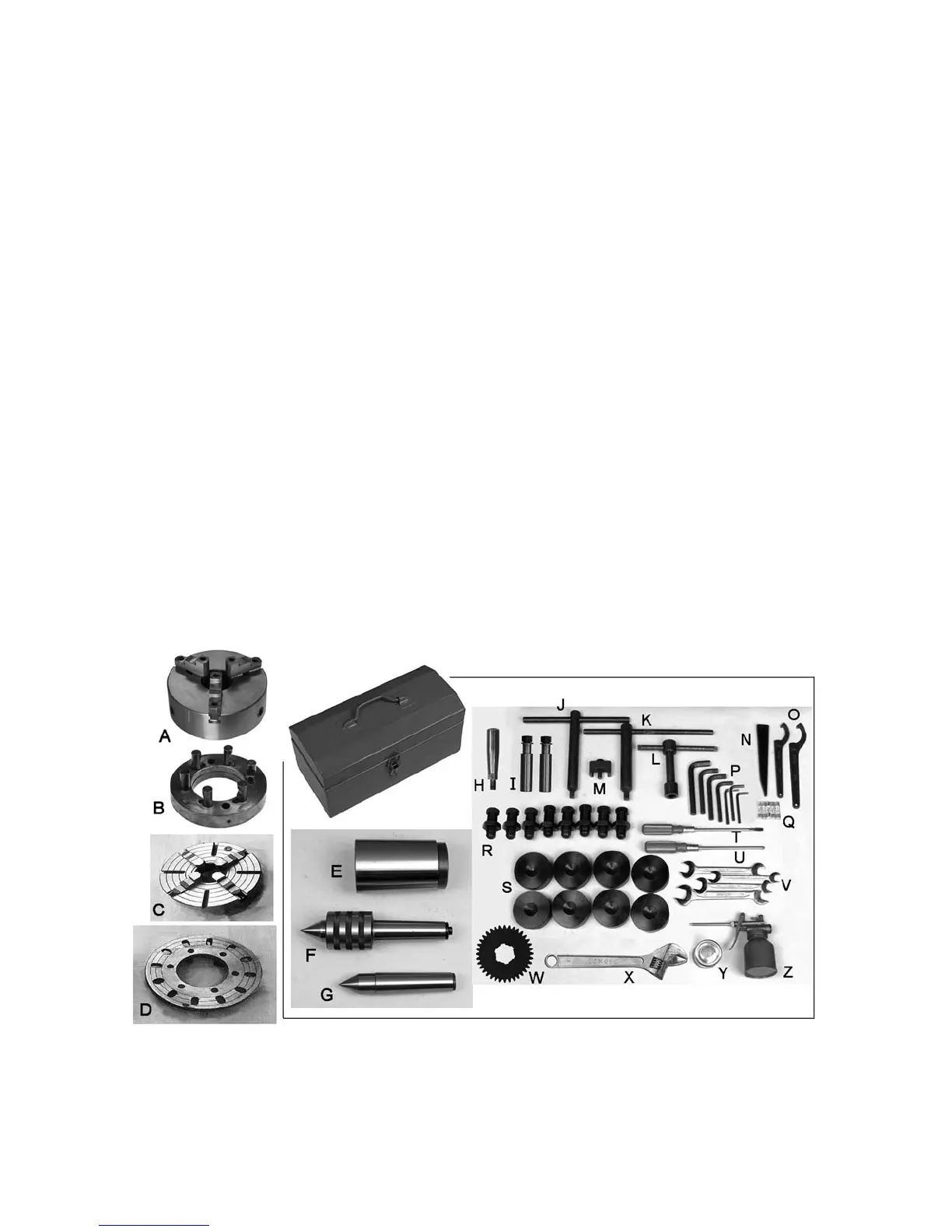

Figure 3
ZK Lathe – Contents of Shipping Container
