Jet GH-1640ZK User Manual

52

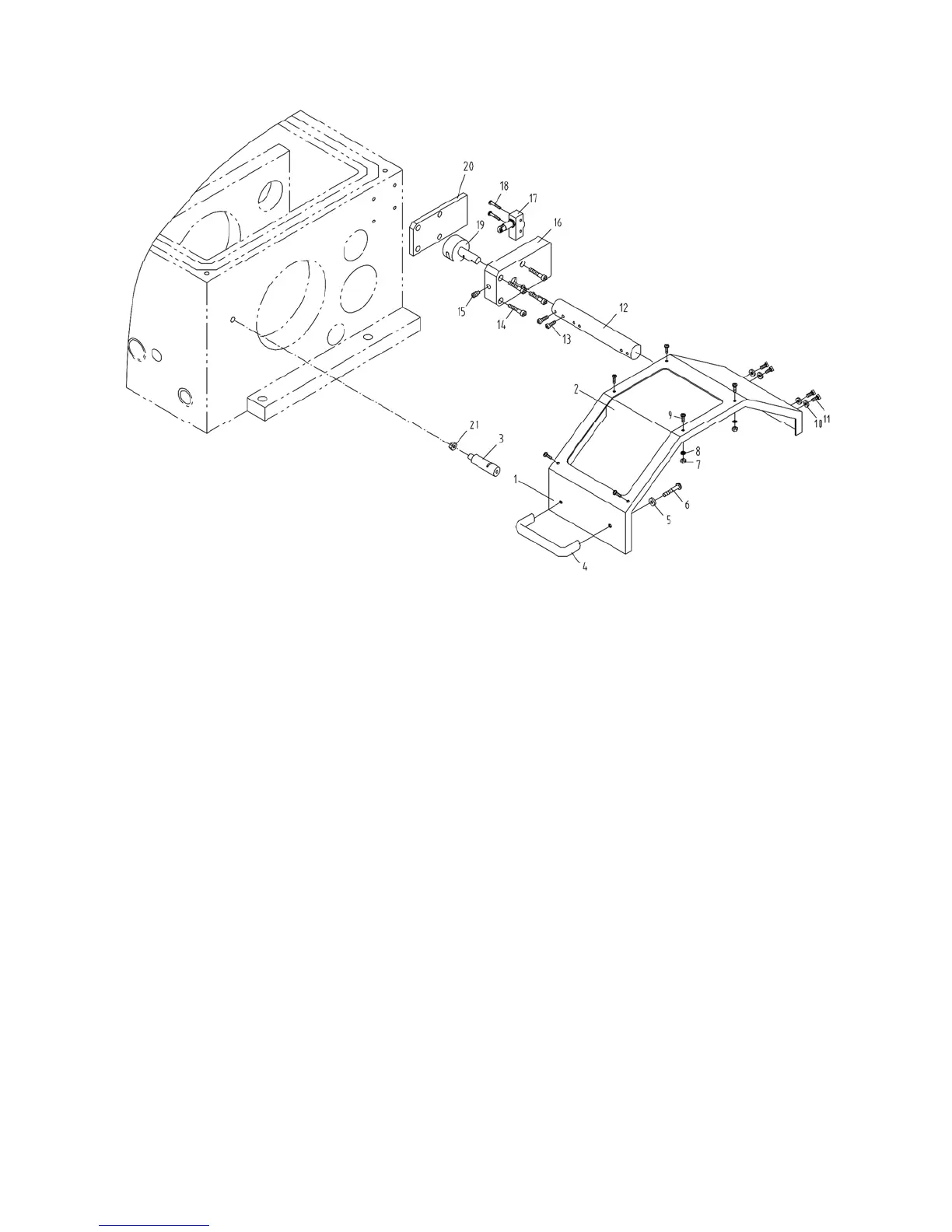

26.0 Chuck Guard Assembly – Exploded View
26.1 Chuck Guard Assembly – Parts List
IndexNo. PartNo. Description Size Qty
.................. ZK-CGA..................... Chuck Guard Assembly (# 1 thru 21) ...................... ...................................... 1
1 ................ ZX-19701E ................ Protection Guard...................................................... ...................................... 1
2 ................ ZX-19501E ................ Protection Guard Visual Glass................................. ...................................... 1
3 ................ ZX-19704E ................ Fixing Rod................................................................ ...................................... 1
4 ................ ZX-S04E.................... Handle ..................................................................... Z96-6............................. 1
5 ................ TS-1550041 .............. Plain Washer ........................................................... 6 mm ............................. 2
6 ................ TS-1534042 .............. Cross Recessed Pan Head Screw .......................... M6x12 ........................... 2
7 ................ ZX-S07E.................... Hex Thin Nut ............................................................ M4 ................................. 6
8 ................ TS-1550021 .............. Plain Washer ........................................................... 4 mm ............................. 6
9 ................ TS-1532042 .............. Cross Recessed Pan Head Screw .......................... M4x12 ........................... 6
10 .............. TS-1550031 .............. Plain Washer ........................................................... 5 mm ............................. 4
11 .............. TS-1502041 .............. Hex Socket Cap Screw ............................................ M5x16 ........................... 4
12 .............. ZX-19703E ................ Rest Bar ................................................................... ...................................... 1
13 .............. ZX-S13E.................... Slotted Set Screw .................................................... M8x10 ........................... 2
14 .............. TS-1503081 .............. Hex Socket Cap Screw ............................................ M6x35 ........................... 4
15 .............. TS-1524041 .............. Hex Socket Set Screw ............................................. M8x16 ........................... 1
16 .............. GH1440A-19101E ..... Switch Box ............................................................... ...................................... 1
19 .............. ZX-19702E ................ Shaft ........................................................................ ...................................... 1
21 .............. ZXS21E ..................... Nut ........................................................................... M8 ................................. 1
