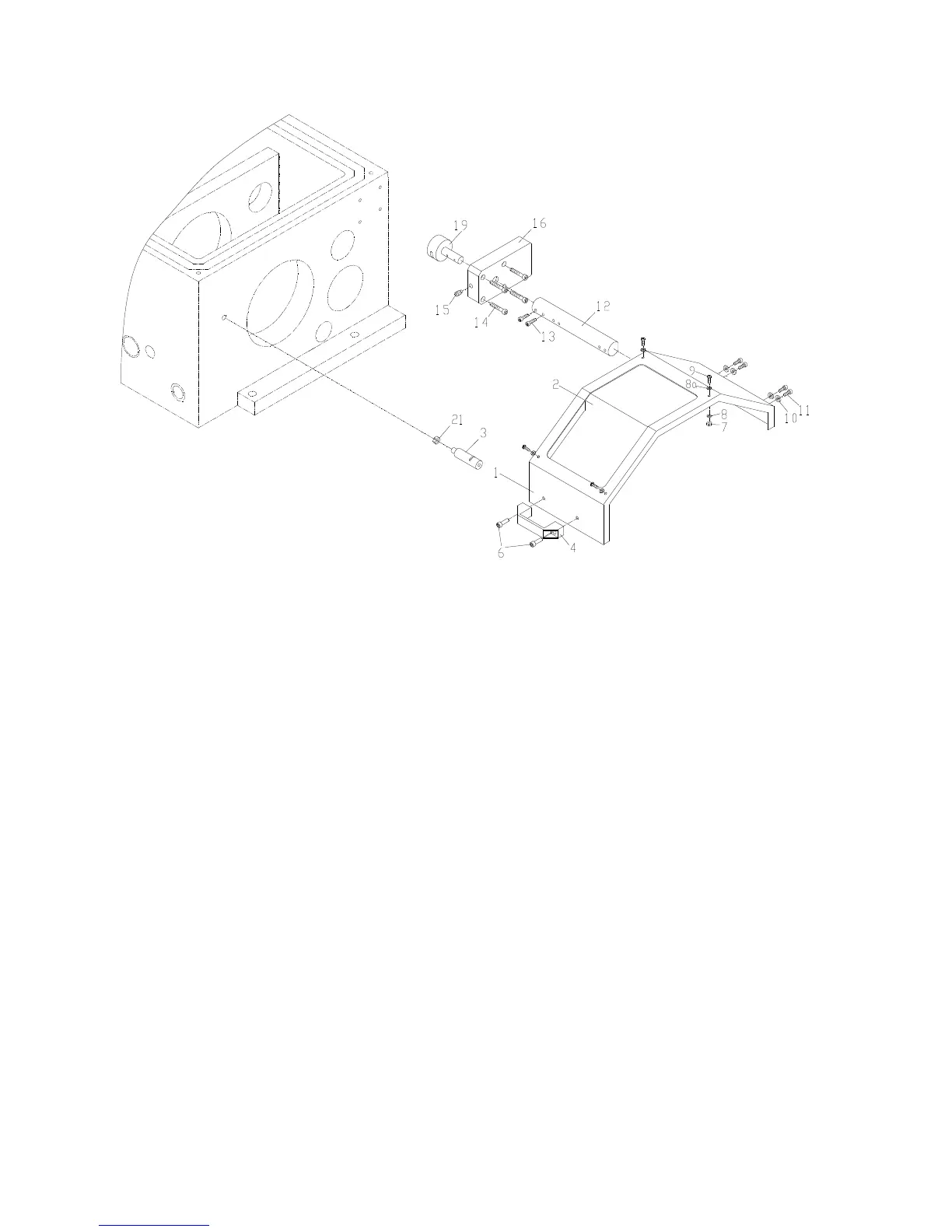

28.1 Chuck Guard Assembl – Exploded View y

28.2 Chuck Guard Assembly – Parts List

Index No. Part No. Description Size Qty

1 ............... GH1640ZX19701 ..... Protection Guard (serial #160315ZH0144 and lower) .............................. 1

................. GH1640ZX19701A ... Protection Guard (serial #160415ZH0145 and higher) ............................. 1

2 ............... ZX-19501E ............... Protection Guard Visual Glass ............................. .................................... 1

3 ............... ZX-19704E ............... Fixing Rod ............................................................ .................................... 1

4 .............. ZX-S04E .................. Handle (serial #160315ZH0144 and lower) ......... .................................... 1

................. A=90 Black ............... Handle (serial #160415ZH0145 and higher) ........ .................................... 1

5 ............... ZX-S05E .................. Plain Washer (serial #160315ZH0144 and lower) 6 mm .......................... 2

6 ............... ZX-S06E .................. Cross Recessed Pan Head Screw (serial #160315ZH0144 and lower) .....

................. ................................. ............................................................................. M6x12 ......................... 2

................. GB70-M6x12 ............ Hex Socket Cap Screw (serial #160415ZH0145 and higher) .....................

................. ................................. ............................................................................. M6x12 ......................... 2

7 ............... ZX-S07E .................. Hexagon Thin Nut ................................................ M4 ............................... 4

8 ............... ZX-S08E .................. Plain Washer ........................................................ 4 mm ........................... 4

8a ............. GB96-4 ..................... Large Plain Washer ............................................. 4 mm ........................... 4

9 ............... ZX-S09E .................. Cross Recessed Pan Head Screw ...................... M4x12 ......................... 4

10 ............. ZX-S10E .................. Plain Washer ........................................................ 5 mm ........................... 4

11 ............. ZX-S11E .................. Hexagon Socket Cap Screw ................................ M5x16 ......................... 4

12 ............. ZX-19703E ............... Rest Bar ............................................................... .................................... 1

13 ............. ZX-S13E .................. Slotted Set Screw ................................................ M8x10 ......................... 2

14 ............. GB70-M6x30 ............ Hexagon Socket Cap Screw ................................ M6x30 ......................... 4

15 ............. ZX-S15E .................. Hexagon Socket Set Screw ................................. M8x16 ......................... 1

16 ............. GH1440A19101E ..... Switch Box ........................................................... .................................... 1

19 ............. ZX-19702E ............... Shaft ..................................................................... .................................... 1

21 ............. C6266CCGA21-M12 Nut ........................................................................ M12 ............................. 1

(Note:This device is installed from serial #111105ZH0006)
