28

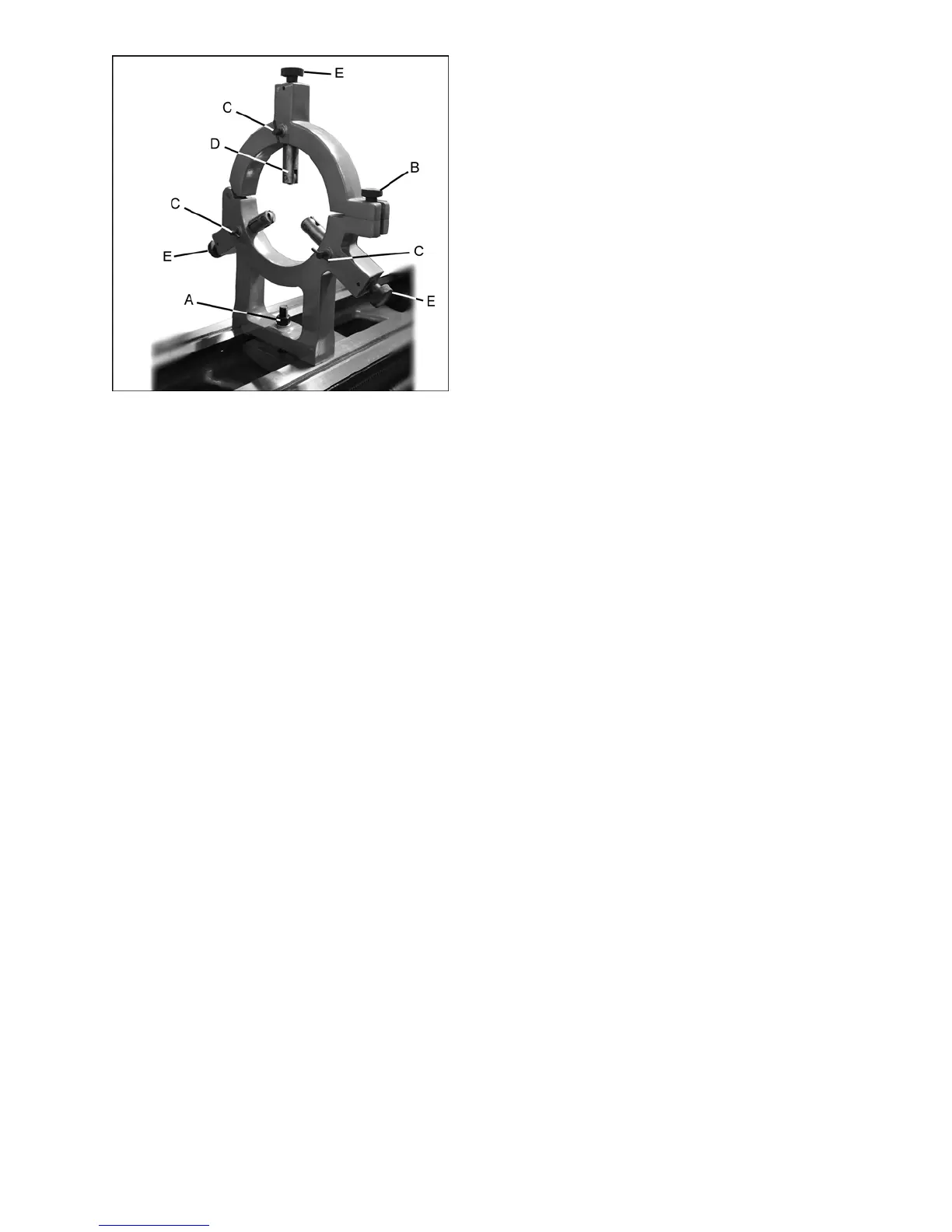

Figure 51 – Steady rest adjustment
13.17 Follow Rest Adjustment
The follow rest mounts to the saddle with two
socket head cap bolts. The follow rest should be
mounted so that the locking knobs point away from
the chuck.
The sliding fingers are set similar to those on the
steady rest – free of play, but not binding.
Always lubricate the fingers sufficiently with grease
before operating.
