67

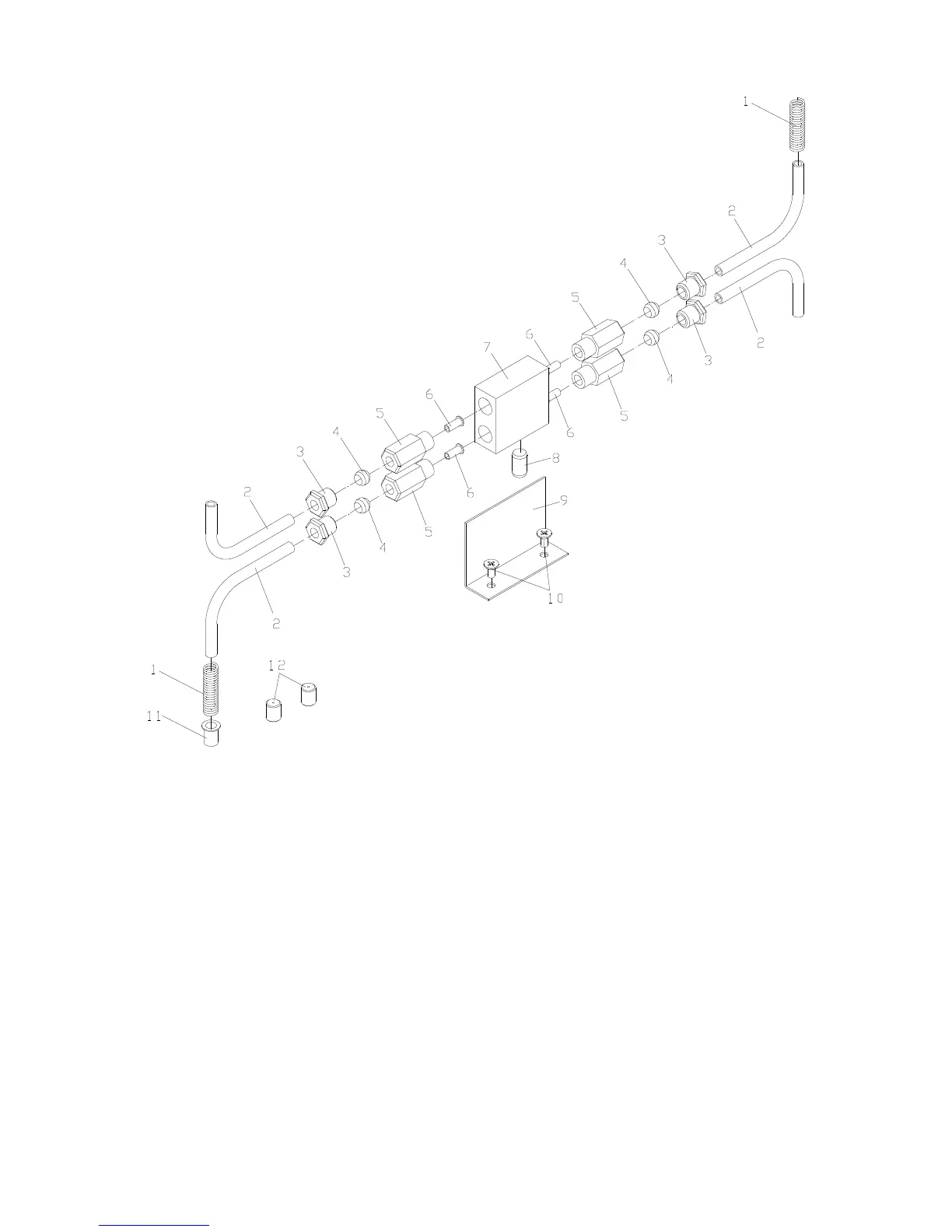

29.1 Carriage Lubrication – Exploded View
29.2 Carriage Lubrication– Parts List
Index No. Part No. Description Size Qty
1 .......... GB2089-1x8x30 ............ Spring ................................................................... 1x8x30 mm ................. 2
2 .......... ...................................... Nylon Pipe ............................................................ Ø 6x1 mm ................... 4
3 .......... CB-6 .............................. Vitta Tie-in ............................................................ M10x1 ......................... 4
4 ......... CS-6 .............................. Clip Sleeve ........................................................... Ø 6 mm ....................... 4
5 .......... ...................................... Tie-in ................................................................... M10x1 ......................... 4
6 .......... T1-6 ............................... Bushing ................................................................ Ø 6 mm ....................... 4
7 .......... C6266C04730 ............... Connector............................................................. .................................... 1
8 .......... GB119-8x10 .................. Pin ........................................................................ 8x10 mm ..................... 1
9 .......... C6266C04731 ............... Cover .................................................................... .................................... 1
10 ........ GB819-M4x8 ................. Cross Recessed Countersunk Head Screw ........ M4x8 ........................... 2
11 ........ C6266C04302Y ............. Bushing ................................................................ .................................... 1
12 ........ C6266C04303Y ............. Plug ...................................................................... .................................... 2
To Next Page
