Jet ZH Series User Manual

62

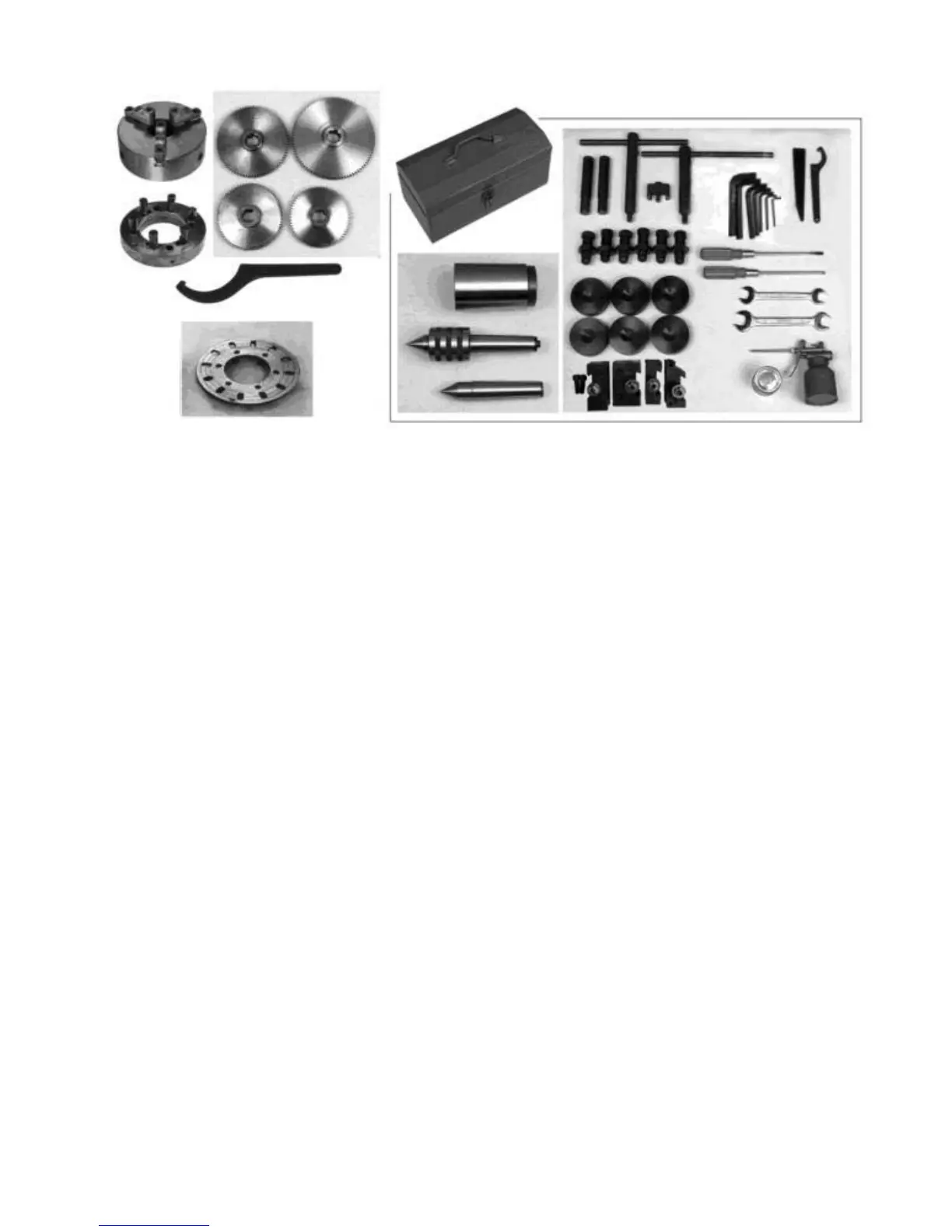

26.1 Toolbox, Accessories, and Attachments
Index No. Part No. Description Size Qty
1 ............... ZH-2501 ................... 3-Jaw Scroll Chuck .............................................. 13”, D1-8 ..................... 1
2 ............... ZH-2502 ................... Drive Plate............................................................ .................................... 1
3 ............... RNS-170/210 ........... Round Nut Spanner ............................................. 170-210 ....................... 1
5 ............... ZH-2505 ................... Face Plate ............................................................ 24-25/32” .................... 1
6 ............... C6266C08704 .......... Gear (in.) .............................................................. 2m69T ......................... 1
7 ............... C6266C08709 .......... Gear (in.) .............................................................. 2m63T ......................... 1
8 ............... C6266C08716 .......... Gear (in.) .............................................................. 2m90T ......................... 1
9 ............... C6266C08717 .......... Gear (in.) .............................................................. 2m78T ......................... 1
10 ............. ZH-OP-08 ................. Reduction Sleeve * .............................................. 113mm 1:20/MT5 ........ 1
11 ............. ZX-OP-07N .............. Live Center * ........................................................ MT5 ............................. 1
12 ............. ZX-OP-06 ................. Dead Center * ...................................................... MT5 ............................. 1
13 ............. ZH-2513 ................... Drive Pin ............................................................... .................................... 2
14 ............. ZX-OP-05 ................. Cam Wrench * ...................................................... .................................... 1
15 ............. ZX-OP-1B ................ Chuck Wrench * ................................................... .................................... 1
17 ............. ZH-2517 ................... Gap Bridge Pin Driver * ........................................ .................................... 1
18 ............. ZH-2518 ................... Drift Key * ............................................................. .................................... 1
19 ............. RNS-45/52 ............... Round Nut Spanner * ........................................... 45-52 ........................... 1
20 ............. ................................. Hex Key Set *……………………………2, 3, 4, 6, 8, 10, 12 ..... one of each
21 ............. ZH-2521 ................... Leveling Bolt (ZH-2680) * ..................................... M20x80 ....................... 6
................. ZH-2521 ................... Leveling Bolt (ZH-26120) .................................... M20x80 ....................... 8
22 ............. ZH-2522 ................... Hex Nut (ZH-2680) * ............................................ M20 ............................. 6
................. ZH-2522 ................... Hex Nut (ZH-26120) ............................................ M20 ............................. 8
23 ............. ZX-01715 ................. Leveling Pad (ZH-2680) * .................................... .................................... 6
................. ZX-01715 ................. Leveling Pad (ZH-26120) ..................................... .................................... 8
24 ............. ZX-OP-14 ................. Flat Blade Screw Driver * ..................................... .................................... 1
25 ............. ZX-OP-15 ................. Cross Point Screw Driver * .................................. .................................... 1
26 ............. ................................. Open End Wrench Set * ....................................... 17-19, 19-22 ............... 1
27 ............. ZX-OP-10 ................. Touchup Paint Can (JET Gray) * ......................... .................................... 1
28 ............. ZX-OP-09 ................. Oil Gun * ............................................................... .................................... 1
29 ............. GB70-M16x50 .......... Hex Socket Head Cap Screw .............................. M16x50 ....................... 2
30 ............. ZX-250-502 .............. Tool Holder (serial #160415ZH0145 and higher) .................................... 1
31 ............. ZX-250-504 .............. Tool Holder (serial #160415ZH0145 and higher) .................................... 1
32 ............. ZX-250-507 .............. Tool Holder (serial #160415ZH0145 and higher) .................................... 1
33 ............. ZX-250-510 .............. Tool Holder (serial #160415ZH0145 and higher) .................................... 1
34 ............. ZH-TBC .................... Tool Box Complete, ZH Lathes (includes items with asterisk * ) ................
