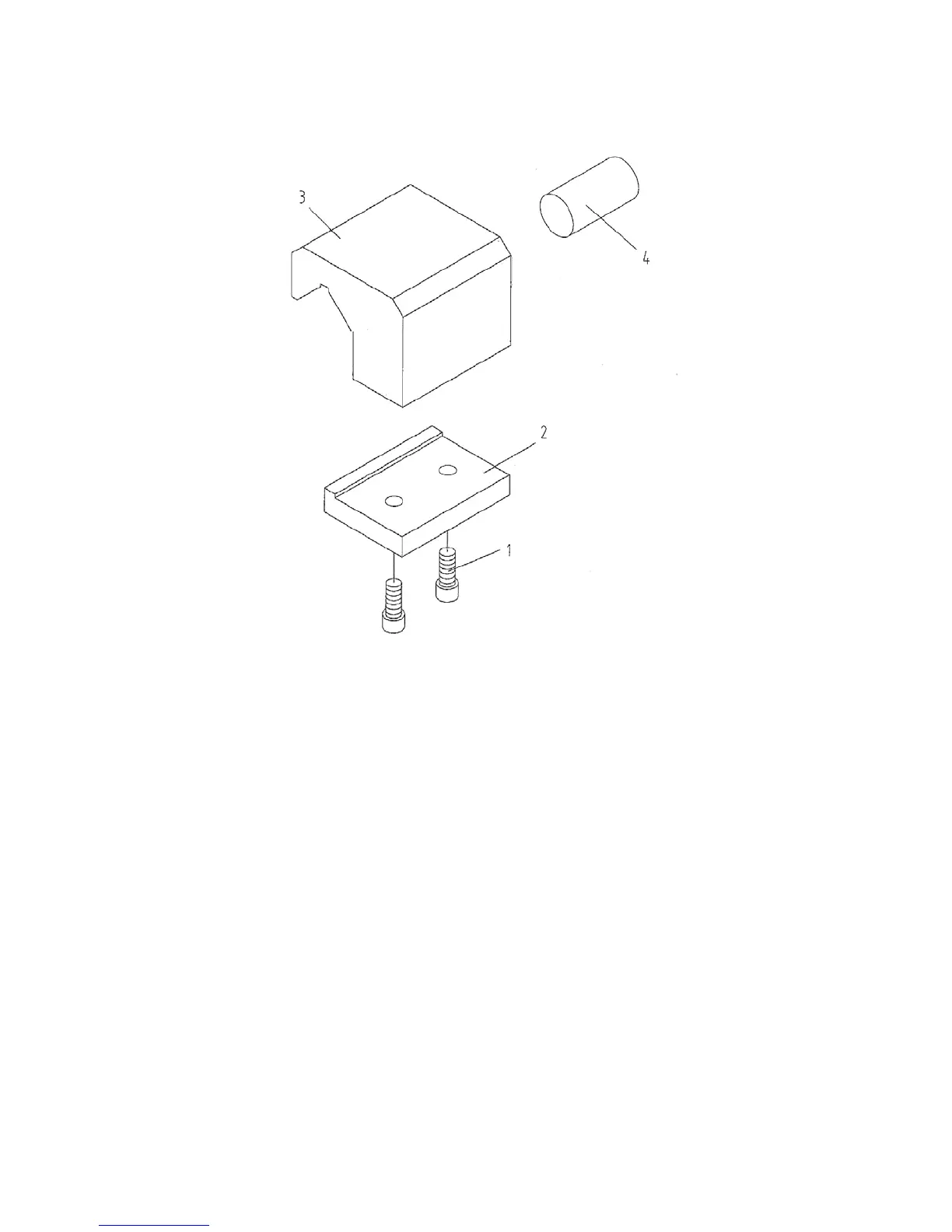

25.1 Small Carriage Stop – Exploded View
25.2 Small Carriage Stop – Parts List
Index No. Part No. Description Size Qty
1 ............... TS-1492031 ............. Hex Cap Screw .................................................... M12x35 ....................... 2
2 ............... C6266C01112 .......... Clamping Plate ..................................................... .................................... 1
3 ............... C6266C01111-G ...... Stop ...................................................................... .................................... 1
4 ............... GB119-12x40 ........... Pin ........................................................................ 12x40 mm ................... 1
