Jet ZH Series User Manual

25

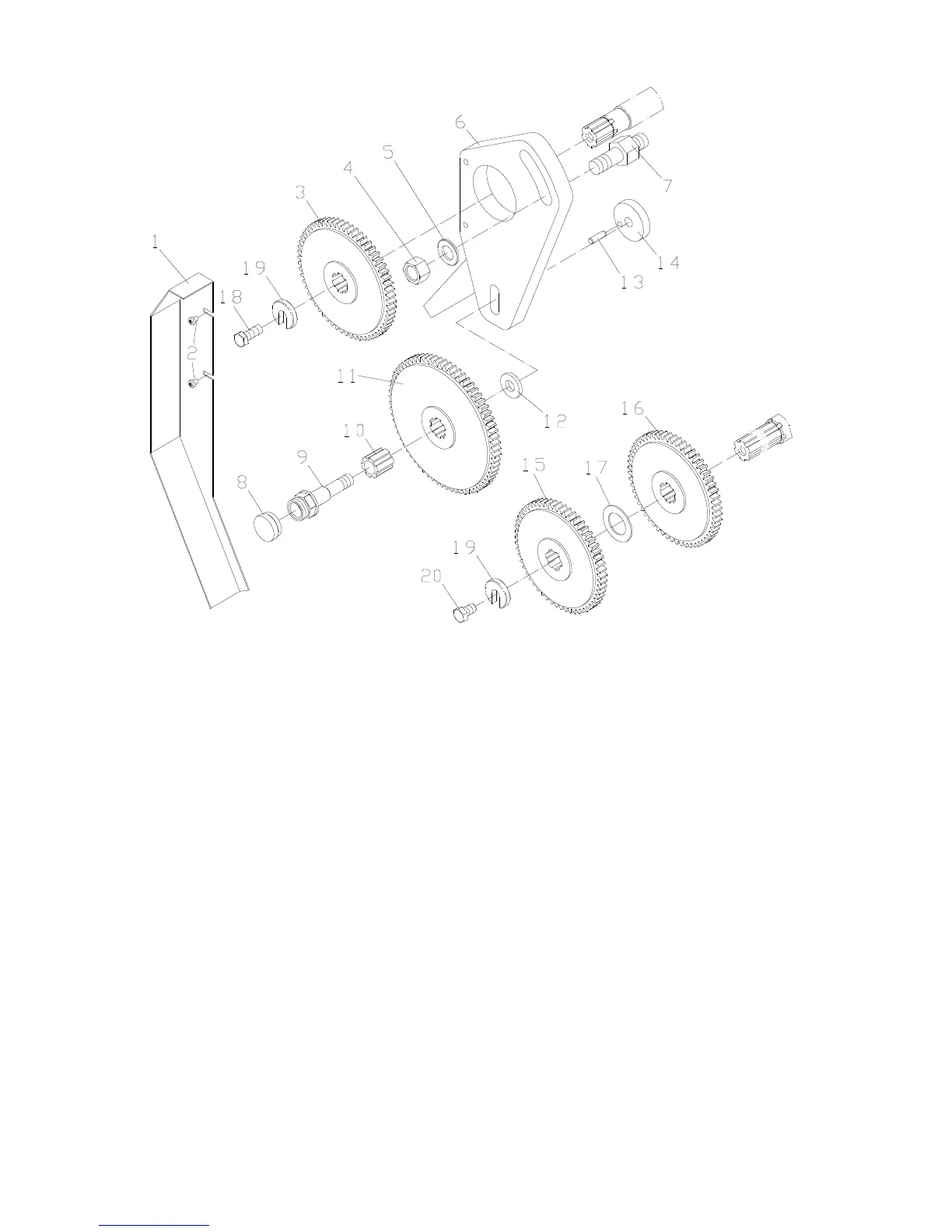

8.1 Gear Assembly – Exploded View
8.2 Gear Assembly – Parts List
Index No. Part No. Description Size Qty
1 ............... C6266C08708-G ...... Splash Guard ....................................................... .................................... 1
2 ............... GB818-M6x8 ............ Screw (serial #160315ZH0144 and lower) .......... M6x8 ........................... 2
................. GB2672-M6x8 .......... Screw (serial #160415ZH0145 and higher) ......... M6x8 ........................... 2
3 ............... C6266C08702 .......... Gear (in.) .............................................................. 2m82T ......................... 1
4 ............... GB6172-M20 ............ Hex Nut ................................................................ M20 ............................. 1
5 ............... GB97.2-20 ................ Washer ................................................................. 20 ................................ 1
6 ............... C6266C08101 .......... Quadrant .............................................................. .................................... 1
7 ............... C6266C02776 .......... Bolt ....................................................................... .................................... 1
8 ............... C6140W08703 ......... Nut Cover ............................................................. .................................... 1
9 ............... C6140W08702 ......... Gear Shaft ............................................................ .................................... 1
10 ............. C6140W08301 ......... Spline Sleeve ....................................................... .................................... 1
11 ............. C6266C08102 .......... Gear (in.) .............................................................. 2m97T ......................... 1
12 ............. C6266C08701 .......... Washer ................................................................. .................................... 1
13 ............. GB119-8n6x20 ......... Pin ........................................................................ 8n6x20 ........................ 1
14 ............. C6140W08704 ......... Position Nut .......................................................... .................................... 1
15 ............. C6266C08703 .......... Gear (in.) .............................................................. 2m81T ......................... 1
16 ............. C6266C08705 .......... Gear (in.) .............................................................. 2m57T ......................... 1
17 ............. 1440R06001C-2 ....... Collar .................................................................... ....................... may vary
18 ............. TS-1492021 ............. Hex Cap Screw .................................................... M12x30 ....................... 1
19 ............. GB851-A12x40 ........ Split Washer ......................................................... A12x40 ........................ 2
20 ............. GB5783-M12x20 ...... Hexagon Head Bolt .............................................. M12x20 ....................... 1
