16.3 Speed Selection Lever Positions
Table 6
No.
Lever Position
Spindle Speeds
(RPM)
A B
1
black black
36
2 50
3 70
4
light
grey
light
grey
100
5 140
6 200
7
red red
280
8 400
9 560
10
grey grey
800
11 1200
12 1600

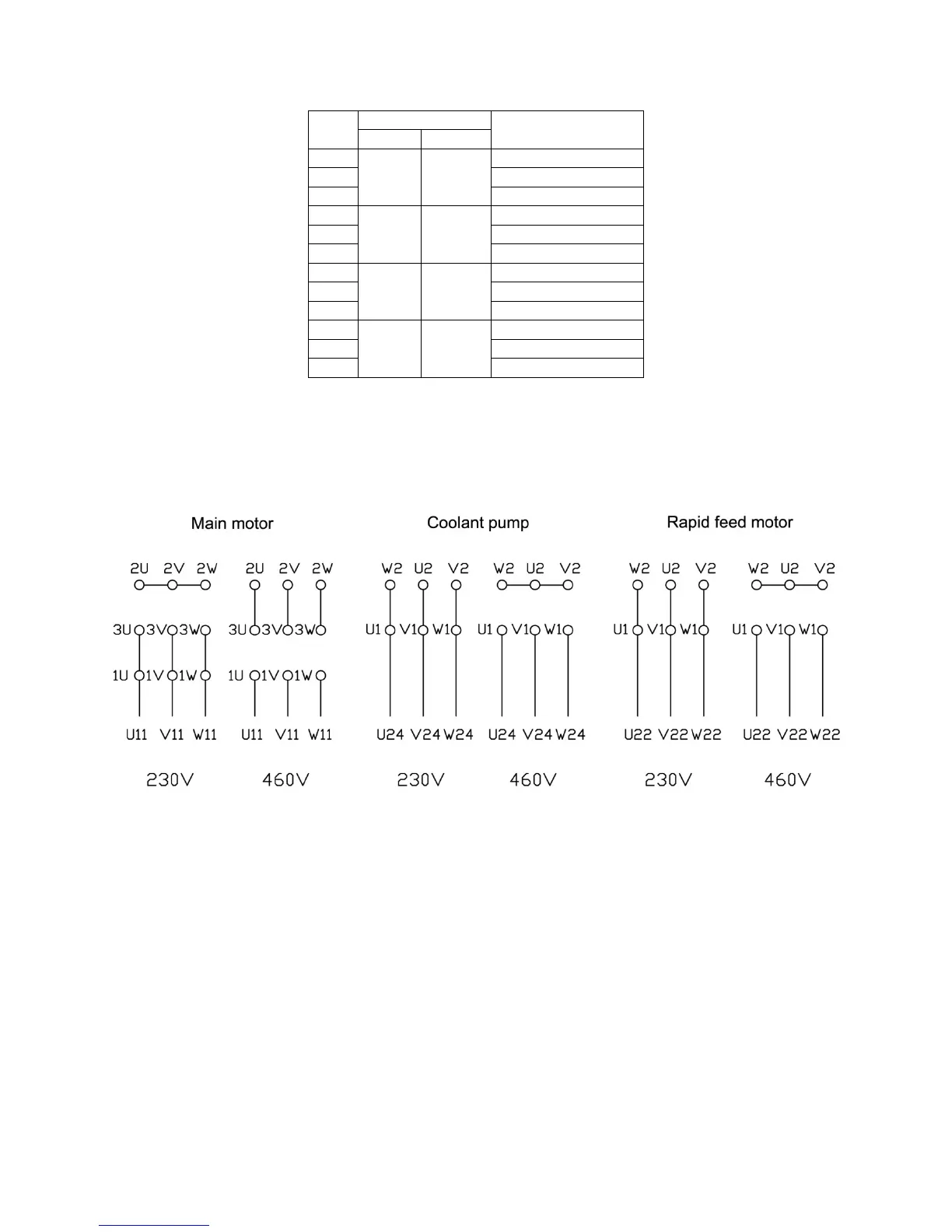

17.0 Electrical – 230 volt to 460 volt Conversion
Figure 53
