57

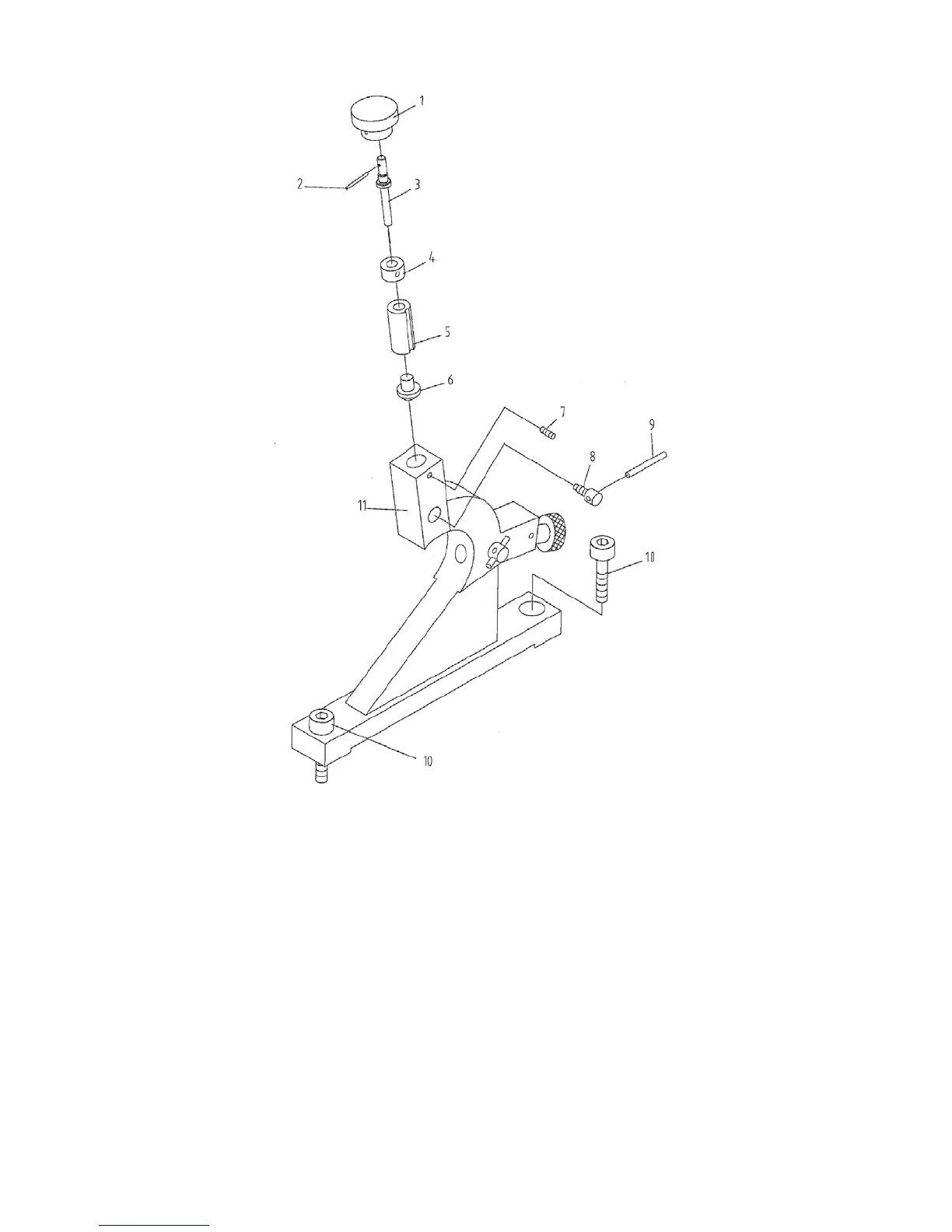

22.1 Follow Rest Assembly – Exploded View
22.2 Follow Rest Assembly – Parts List
Index No. Part No. Description Size Qty
1 ............... GB4141.29-12 .......... A-Type Knurled Handle ........................................ 12 mm ......................... 1
2 ............... GB117-4x25 ............. Pin ........................................................................ 4x25 mm ..................... 1
3 ............... C626610705 ............ Screw ................................................................... .................................... 1
4 ............... C6266C10704 .......... Nut ........................................................................ .................................... 1
5 ............... C6266C10706 .......... Sliding Sleeve ...................................................... .................................... 1
6 ............... C6266C10302 .......... Block .................................................................... .................................... 1
7 ............... GB75-M10x16 .......... Slotted Set Screw ................................................ M10x16 ....................... 2
8 ............... C6140W10704 ......... Set Screw ............................................................. .................................... 2
9 ............... GB119-A6x45 .......... Pin ........................................................................ A6x45 mm ................... 2
10 ............. GB70-M16x55 .......... Hex Socket Cap Screw ........................................ M16x55 ....................... 2
11 ............. C6266C10103-G ...... Follow Rest Casting ............................................. .................................... 1
