SECTION 3 - MACHINE OPERATION
31215821 3-11
3.7 GROUND CONTROL STATION
1. Platform/Off/Ground Selector Switch
2. Emergency Stop/Shut Down Button
3. Brake Release Button
4. Platform Up Button
5. Platform Down Button
6. Machine Status LCD Display
NOTE: The Ground Control Station Mod-
ule is fully programmable. For
operator level programmability,
refer to Section 6.
NOTE: If equipped with Programmable
Security Lock (PSL), refer to
Section 6.

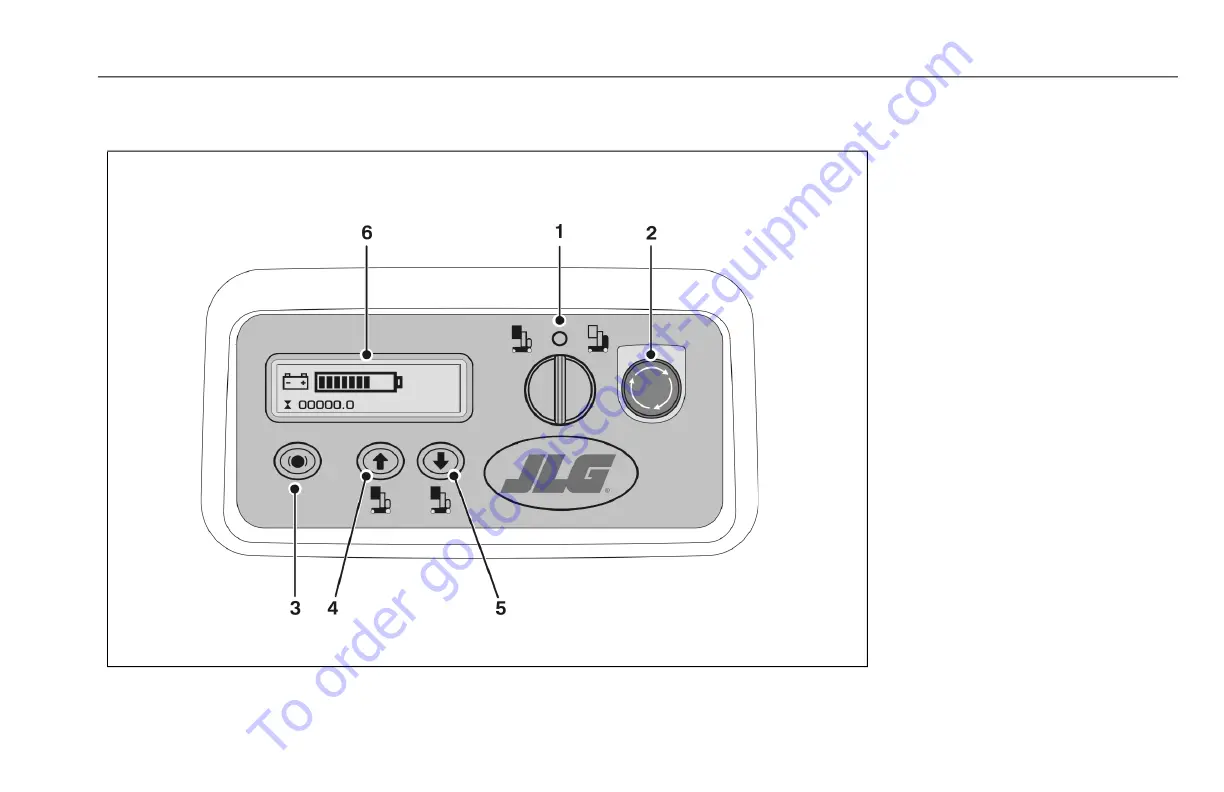

Figure 3-5. Ground Control Station
