SECTION 3 - MACHINE OPERATION
3-32 31215821
Object Detection System (If Equipped)
The Object Detection System is designed to detect an object
beneath the platform.
Operation
During platform lowering, if there is no object on the mat
beneath the platform, the platform will lower normally.
If an object is detected on the pad beneath the platform the
horn will sound three short blasts and the platform will stop
lowering.
If an object is detected, have the object cleared by someone on
the ground, reset the system by pressing the horn button once,
then continue to lower the machine normally.
Should the object detection system falsely detect an obstruc-
tion, the system can be overridden by pressing and holding the
horn button while operating the platform lowering controls.
ALWAYS ENSURE THE AREA UNDER THE PLATFORM IS CLEAR OF OBSTRUC-
TIONS BEFORE LOWERING THE PLATFORM.
Platform Gate Alarm (Australian Spec. Machines Only)
If the machine is equipped with a Platform Gate Alarm, an alarm
will sound and all lifting and driving functions will stop if either
or both gates are opened once the platform is raised approxi-
mately 1 in above the fully stowed position. If the machine is
moving forward or backward and one or both gates are opened,
the alarm will sound and all lifting and driving functions will
stop.

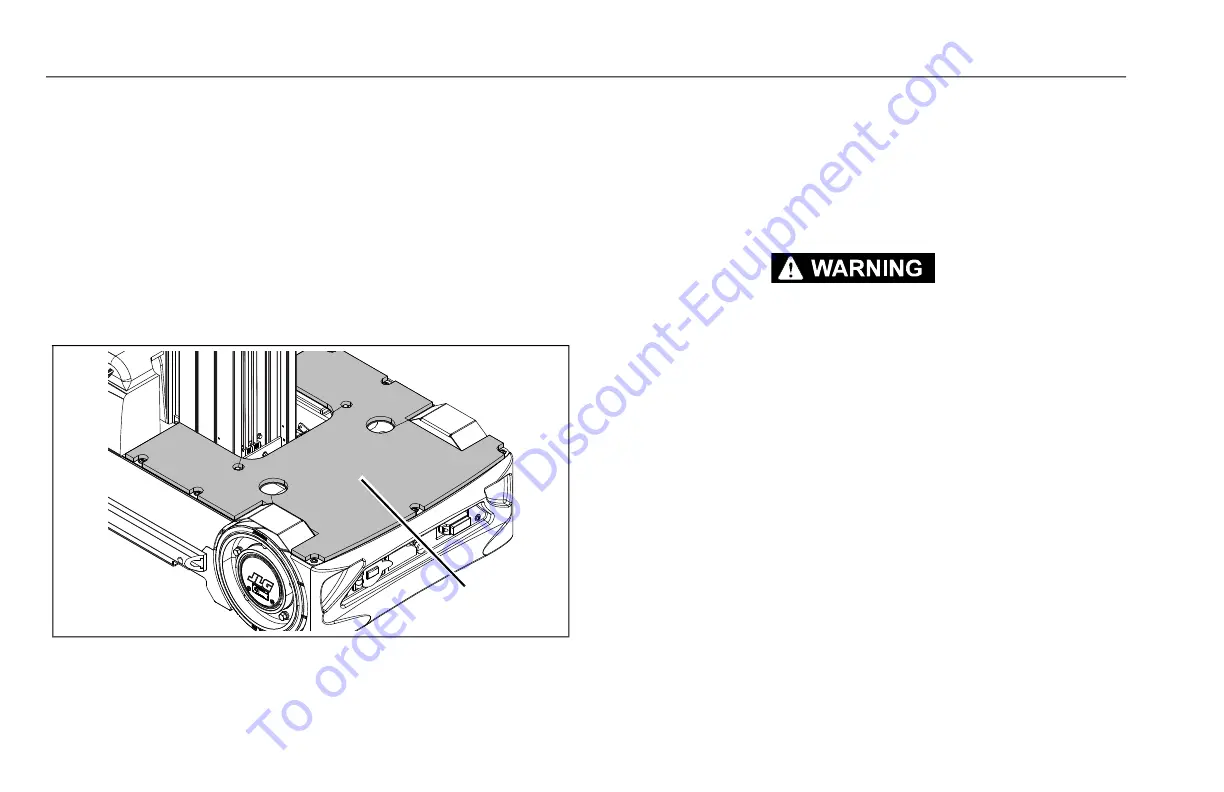

Figure 3-12. Object Detection System
1. Safety Pad Obstruction Switch
