SECTION 3 - MACHINE OPERATION
3-14 31215821
Machine Status LCD Display
At power-up and during operation, the LCD display on the
Ground Control Module displays the current machine operating
status. The following illustration explains the symbol indica-
tions.

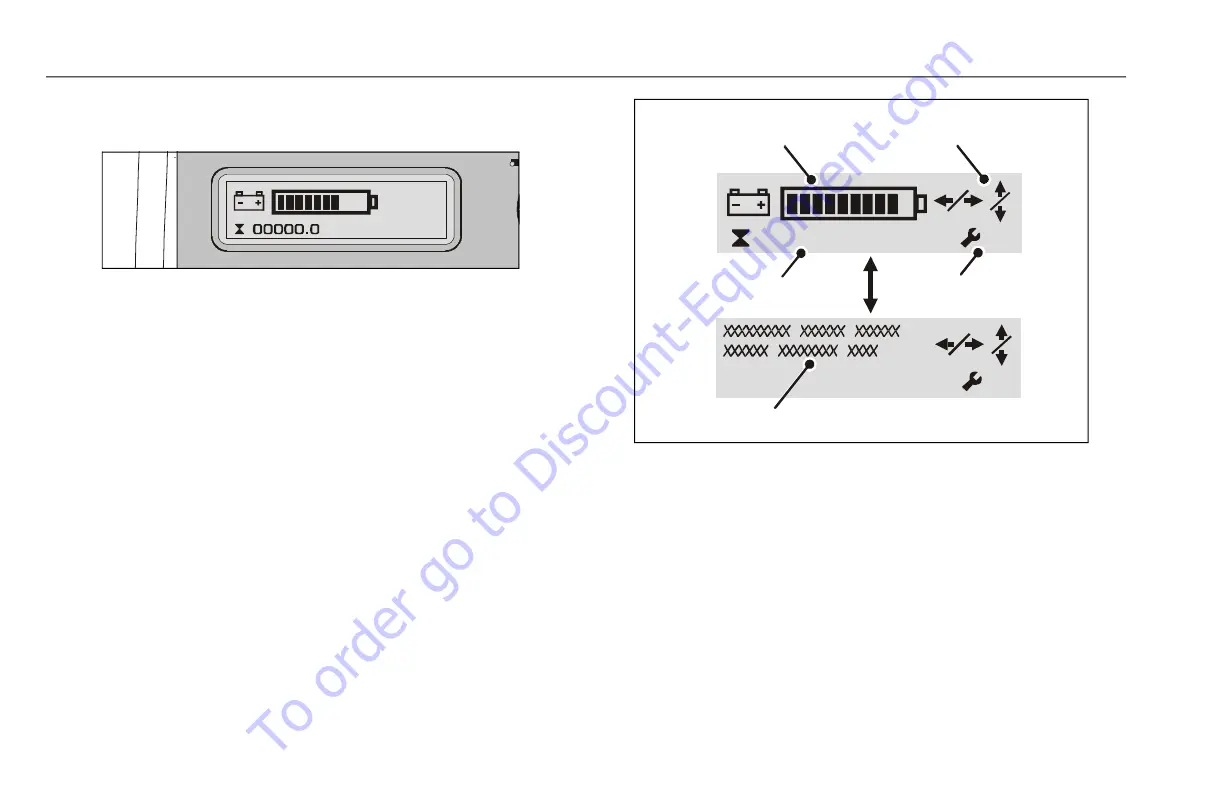

Figure 3-6. LCD Display Symbols
1. Battery Charge Indicator (BCI)
2. Function Display or Function Disabled Indicators
3. Hour Meter Display
4. Fault Code Indicator (Refer to Table 3-2)
5. Fault Text Message Display (Refer to Note)
NOTE: When a Fault Code is indicated the LCD
screen will alternate between the text and
symbol display modes.
