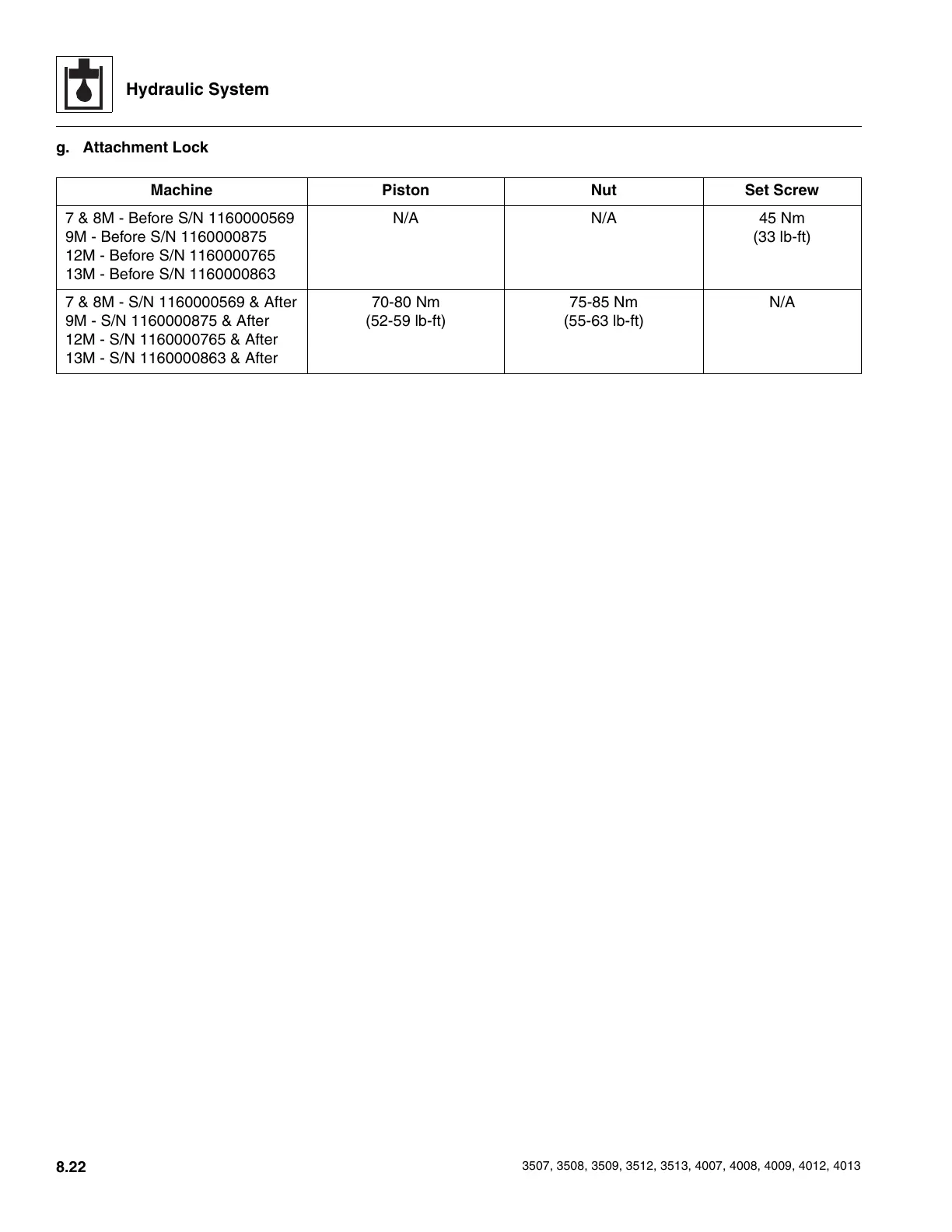

Hydraulic System
8.22
3507, 3508, 3509, 3512, 3513, 4007, 4008, 4009, 4012, 4013
g. Attachment Lock
Machine Piston Nut Set Screw
7 & 8M - Before S/N 1160000569
9M - Before S/N 1160000875
12M - Before S/N 1160000765
13M - Before S/N 1160000863
N/A N/A 45 Nm
(33 lb-ft)
7 & 8M - S/N 1160000569 & After
9M - S/N 1160000875 & After
12M - S/N 1160000765 & After
13M - S/N 1160000863 & After
70-80 Nm
(52-59 lb-ft)
75-85 Nm
(55-63 lb-ft)
N/A
