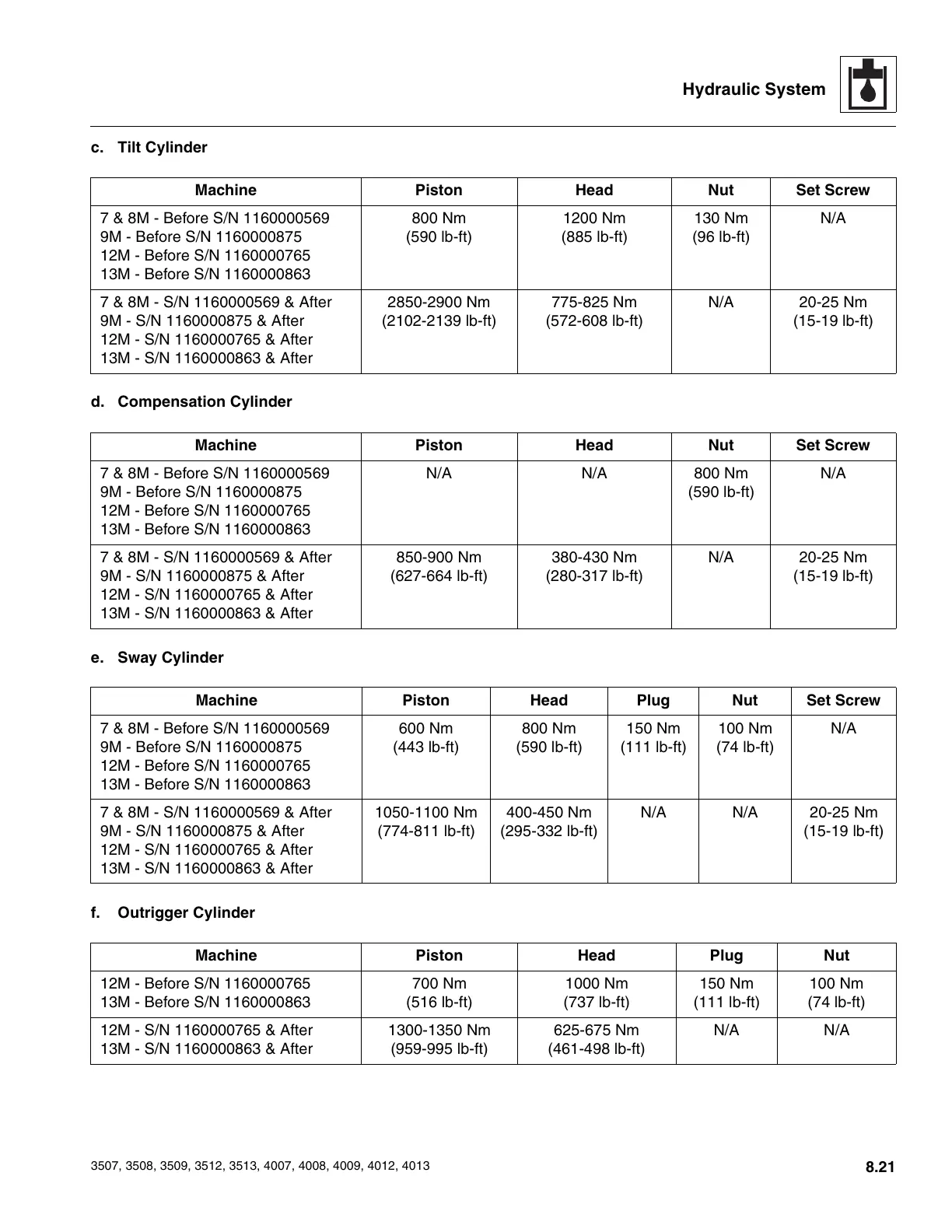

JLG 3513 - Tilt Cylinder; Compensation Cylinder; Sway Cylinder; Outrigger Cylinder

8.21
3507, 3508, 3509, 3512, 3513, 4007, 4008, 4009, 4012, 4013
Hydraulic System
c. Tilt Cylinder
d. Compensation Cylinder
e. Sway Cylinder
f. Outrigger Cylinder
Machine Piston Head Nut Set Screw
7 & 8M - Before S/N 1160000569
9M - Before S/N 1160000875
12M - Before S/N 1160000765
13M - Before S/N 1160000863
800 Nm
(590 lb-ft)
1200 Nm
(885 lb-ft)
130 Nm
(96 lb-ft)
N/A
7 & 8M - S/N 1160000569 & After
9M - S/N 1160000875 & After
12M - S/N 1160000765 & After
13M - S/N 1160000863 & After
2850-2900 Nm
(2102-2139 lb-ft)
775-825 Nm
(572-608 lb-ft)
N/A 20-25 Nm
(15-19 lb-ft)
Machine Piston Head Nut Set Screw
7 & 8M - Before S/N 1160000569
9M - Before S/N 1160000875
12M - Before S/N 1160000765
13M - Before S/N 1160000863
N/A N/A 800 Nm
(590 lb-ft)
N/A
7 & 8M - S/N 1160000569 & After
9M - S/N 1160000875 & After
12M - S/N 1160000765 & After
13M - S/N 1160000863 & After
850-900 Nm
(627-664 lb-ft)
380-430 Nm
(280-317 lb-ft)
N/A 20-25 Nm
(15-19 lb-ft)
Machine Piston Head Plug Nut Set Screw
7 & 8M - Before S/N 1160000569
9M - Before S/N 1160000875
12M - Before S/N 1160000765
13M - Before S/N 1160000863
600 Nm
(443 lb-ft)
800 Nm
(590 lb-ft)
150 Nm
(111 lb-ft)
100 Nm
(74 lb-ft)
N/A
7 & 8M - S/N 1160000569 & After
9M - S/N 1160000875 & After
12M - S/N 1160000765 & After
13M - S/N 1160000863 & After
1050-1100 Nm
(774-811 lb-ft)
400-450 Nm
(295-332 lb-ft)
N/A N/A 20-25 Nm
(15-19 lb-ft)
Machine Piston Head Plug Nut
12M - Before S/N 1160000765
13M - Before S/N 1160000863
700 Nm
(516 lb-ft)
1000 Nm
(737 lb-ft)
150 Nm
(111 lb-ft)
100 Nm
(74 lb-ft)
12M - S/N 1160000765 & After
13M - S/N 1160000863 & After
1300-1350 Nm
(959-995 lb-ft)
625-675 Nm
(461-498 lb-ft)
N/A N/A
