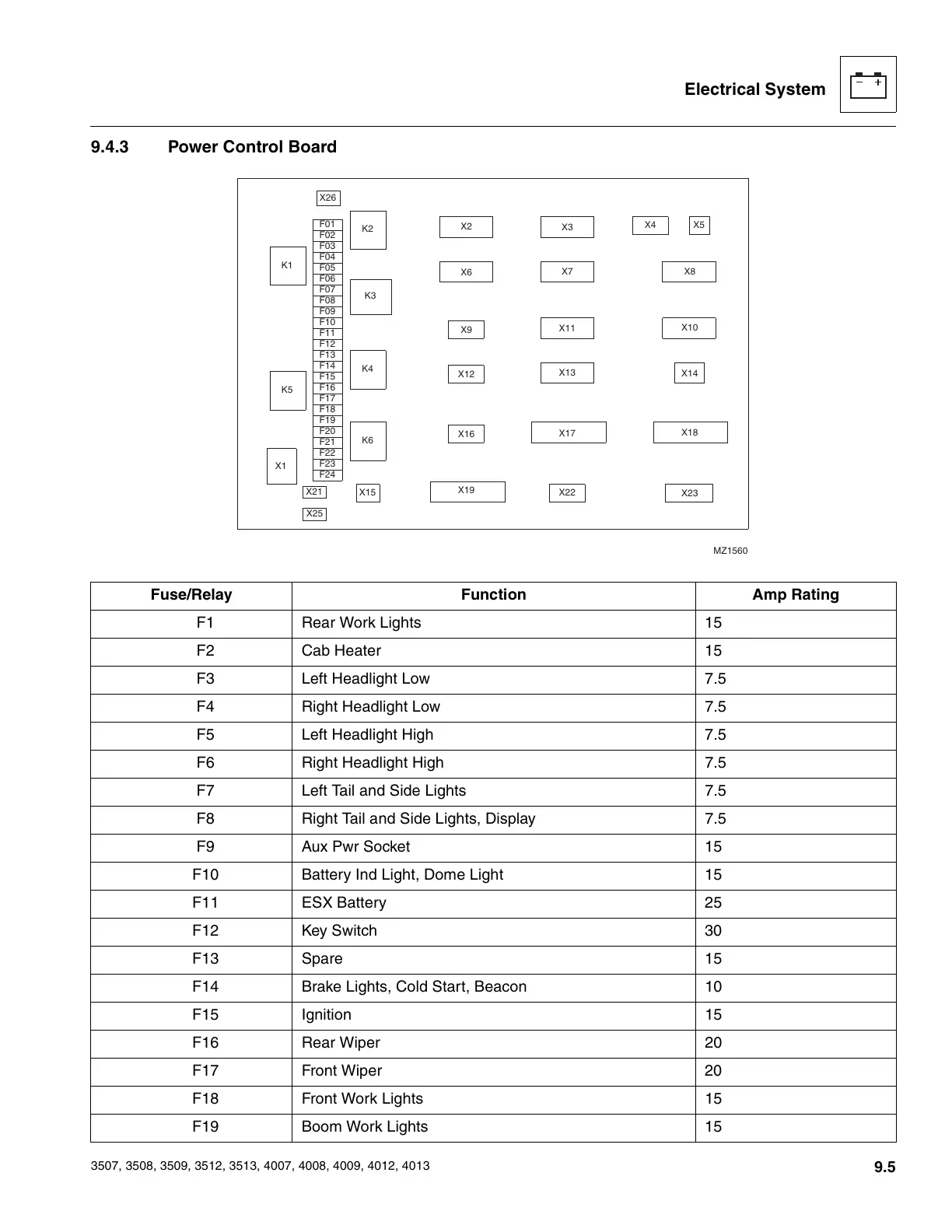

JLG 3513 - Power Control Board

9.5
3507, 3508, 3509, 3512, 3513, 4007, 4008, 4009, 4012, 4013
Electrical System
9.4.3 Power Control Board
Fuse/Relay Function Amp Rating
F1 Rear Work Lights 15
F2 Cab Heater 15
F3 Left Headlight Low 7.5
F4 Right Headlight Low 7.5
F5 Left Headlight High 7.5
F6 Right Headlight High 7.5
F7 Left Tail and Side Lights 7.5
F8 Right Tail and Side Lights, Display 7.5
F9 Aux Pwr Socket 15
F10 Battery Ind Light, Dome Light 15
F11 ESX Battery 25
F12 Key Switch 30
F13 Spare 15
F14 Brake Lights, Cold Start, Beacon 10
F15 Ignition 15
F16 Rear Wiper 20
F17 Front Wiper 20
F18 Front Work Lights 15
F19 Boom Work Lights 15
