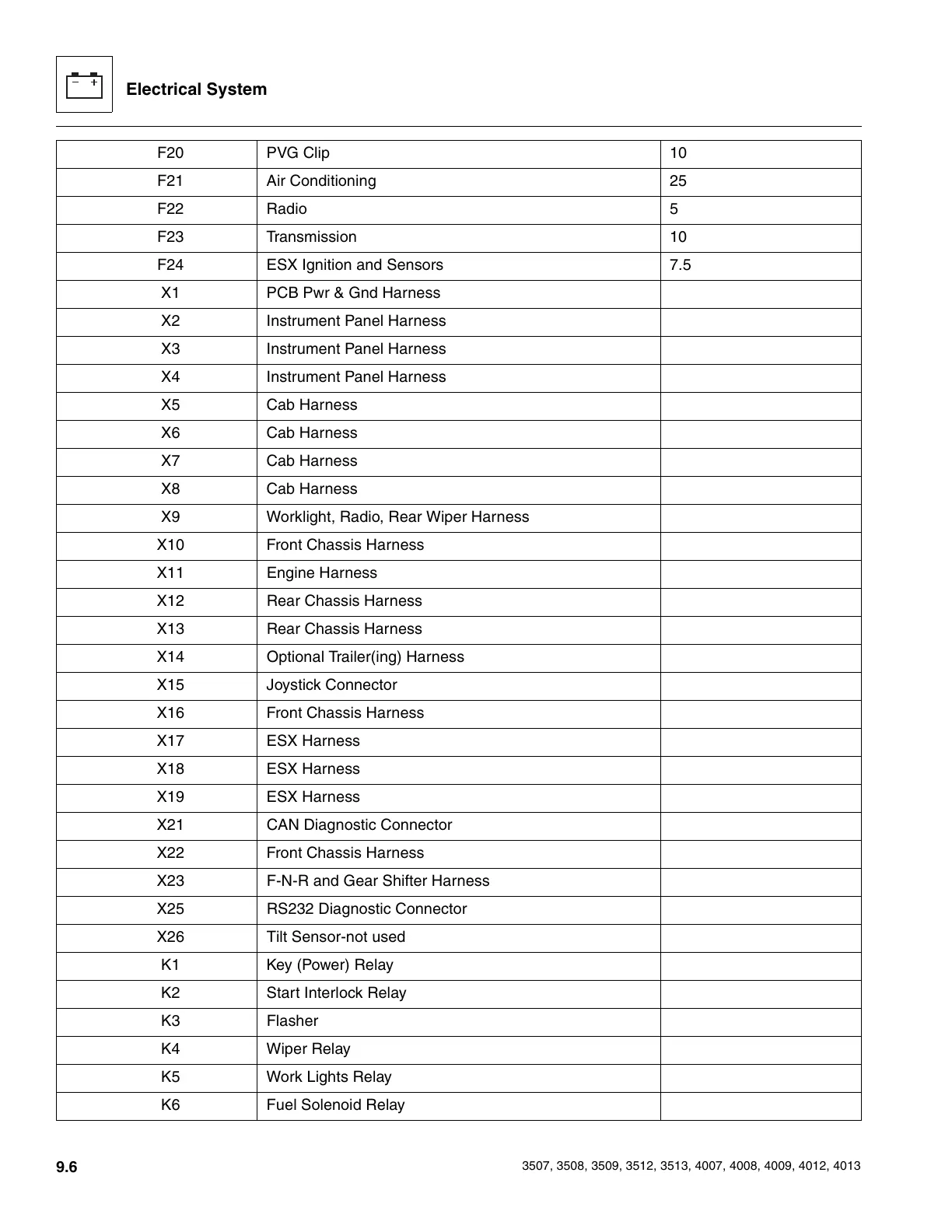

Electrical System
9.6
3507, 3508, 3509, 3512, 3513, 4007, 4008, 4009, 4012, 4013
F20 PVG Clip 10
F21 Air Conditioning 25
F22 Radio 5
F23 Transmission 10
F24 ESX Ignition and Sensors 7.5
X1 PCB Pwr & Gnd Harness
X2 Instrument Panel Harness
X3 Instrument Panel Harness
X4 Instrument Panel Harness
X5 Cab Harness
X6 Cab Harness
X7 Cab Harness
X8 Cab Harness
X9 Worklight, Radio, Rear Wiper Harness
X10 Front Chassis Harness
X11 Engine Harness
X12 Rear Chassis Harness
X13 Rear Chassis Harness
X14 Optional Trailer(ing) Harness
X15 Joystick Connector
X16 Front Chassis Harness
X17 ESX Harness
X18 ESX Harness
X19 ESX Harness
X21 CAN Diagnostic Connector
X22 Front Chassis Harness
X23 F-N-R and Gear Shifter Harness
X25 RS232 Diagnostic Connector
X26 Tilt Sensor-not used
K1 Key (Power) Relay
K2 Start Interlock Relay
K3 Flasher
K4 Wiper Relay
K5 Work Lights Relay
K6 Fuel Solenoid Relay
