9
The following is an example of how the CIW01 is utilized. If other models of the controller are used, operate
the unit according to the manual for that controller.
Display Part
OK
Menu
Back/Help ECO
On/Off
A/C
MODE SPEED TEMP
COOL
LOUV. Adj.
Meeting Room
LOUV.
FLTR
Cold draft rest.
Filter Sign Indicator
FLTR
is displayed at the set period for
lter cleaning.
Operation Lock Indicator
is displayed when the operation
lock function is set. *
Schedule Timer Indicator
is displayed when the schedule
timer function is set. *
Directional Key Enter Key
On/Off Switch
Run Indicator
Illuminates while the
unit is operating, and it
ashes during abnormal
conditions.
Operation Mode
Indicator
“HEAT” and “AUTO” are
indicated only for the
heat pump type models.
Operation Guide
Indicator
“Central Control” is
indicated while the
controller operation is
prohibited.
Operation Part
ECO Switch
*
Back/Help Switch
To return to the previous
screen.
Menu Switch
*
To display Menu.
Swing Louver Indicator
Fan Speed Indicator
Room Name
Indicator
*

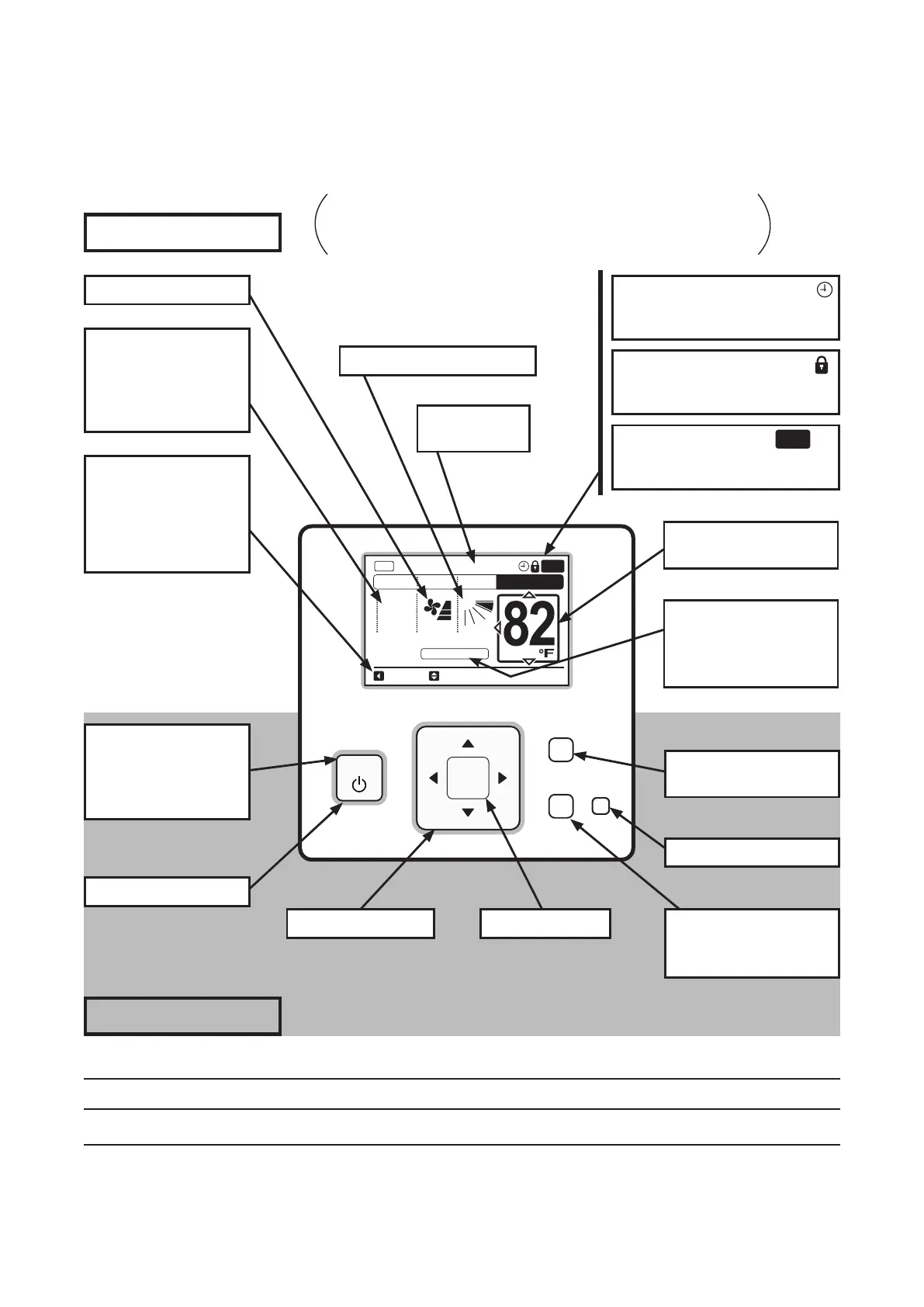

The example below references the control panel and all
adjustable settings. The wired controller display may be
different during actual operation.
Setting Temperature
Indicator
4.2 Wired Controller (CIW01)
NOTE
* For detailed descriptions, refer to the "Operation Manual" for the wired controller.
Cold Draft Rest
Indicator
is displayed when the
comfort setting is set.
