5.2.8 Identifying Indoor Units Installed Side by Side
This function is used when operating several receivers or indoor units side by side, to prevent malfunction
from incorrect signals received from the wireless controllers used in other areas.
Only the communication between the paired setting is possible, and four pairs (A, B, C, D) are available.
For example, the receiver set as “A” can only receive signals from the wireless controller set as “A”.
It cannot receive signals from a wireless controller set as B, C or D.
Refer to the “Installation and Maintenance Manual” or the “Operation Manual” for each receiver kit or indoor
unit setting. Depending on the type of receiver kit or the indoor unit, only settings A and B are available and
not C or D. In that case, set the wireless controller as A or B.
● Procedure for this function
(1) Press both “On Timer” and “Reset” switches for 3 seconds.
(2) The current value set for this function is displayed (A, B, C or D).
(3) Press “
” to change the setting in ascending order. (
A → B → C → D
)
Press “
” to change the setting in descending order. (
A ← B ← C ← D
)
NOTE:
The setting is recorded each time “ ” or “ ” switch is pressed.
(4) Press “Off
” switch to exit this function and reset.
NOTE:
If no operation is performed 30 seconds after this function is displayed, it will automatically end and
reset.

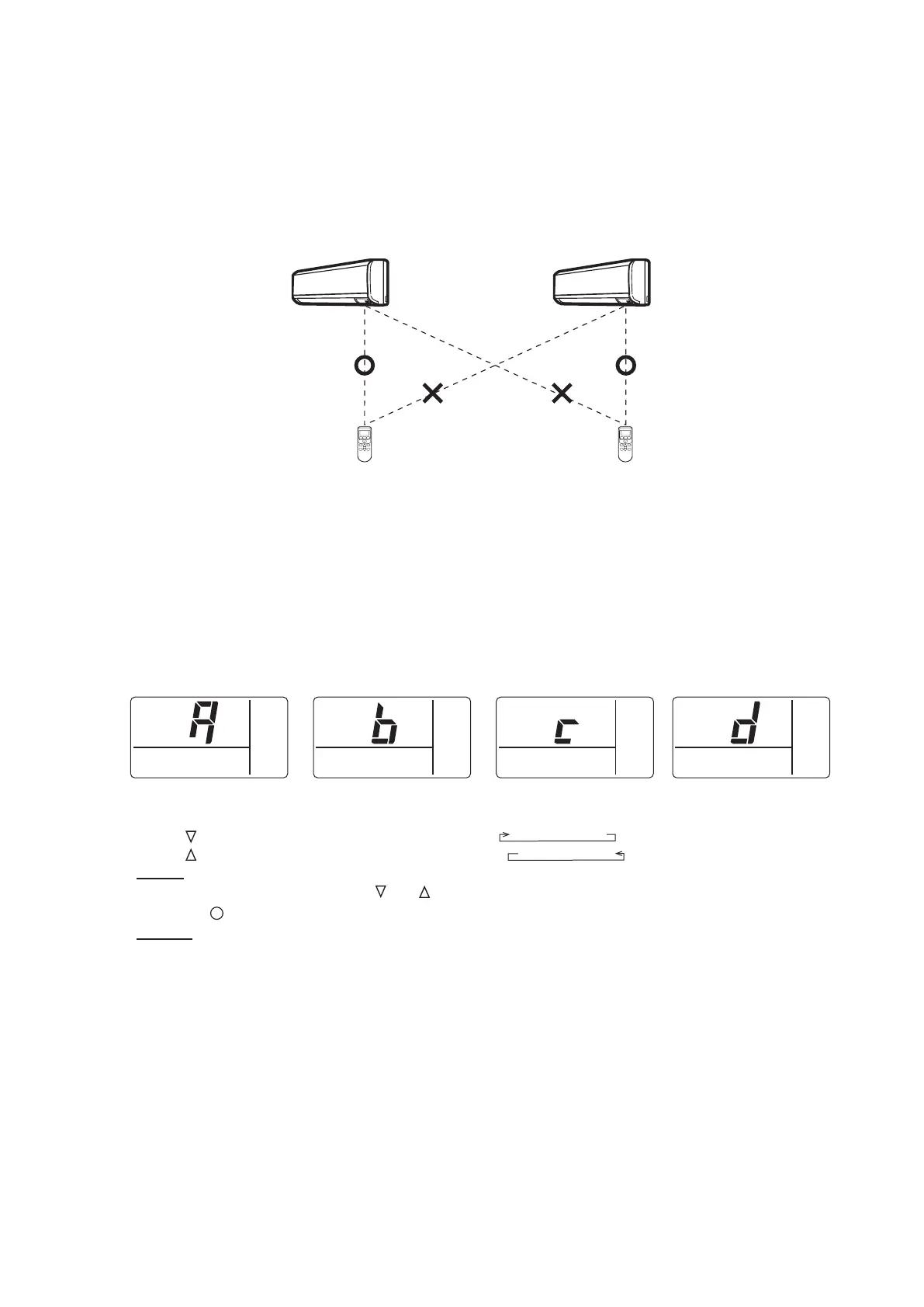

A Mode (A) B Mode (b) C Mode (c) D Mode (d)
AB
Receiver or Indoor Unit
set as “A”.
Wireless Controller
set as “A”
Receiver or Indoor Unit
set as “B”.
Wireless Controller
set as “B”
