Table 50: Dimensions of heat recovery compact waterboxes - 150 psi rectangular
Nozzle pipe size in. (mm) Condenser nozzle dimensions ft in. (mm)
Number of passes 1, 2 or 3 pass 2 pass
Condenser shell code
1 2 3 D K L I
B 10 in.
(254)
8 in.
(203)
6 in.
(152)
1 ft 8 7/8 in.
(530)
1 ft 9 1/4 in.
(540)
3 ft 6 1/2 in.
(1,018)
0 ft 9 1/16 in.
(230)
I 14 in.
(355)
10 in.
(254)
8 in.
(203)
1 ft 11 3/8 in.
(594)
1 ft 10 1/4 in.
(565)
3 ft 8 1/8 in.
(1,121)
0 ft 10 1/8 in.
(257)
O 16 in.
(406)
12 in.
(304)
10 in.
(254)
2 ft 3 3/8 in.
(695)
2 ft 0 3/8 in.
(619)
4 ft 1 1/8 in.
(1,248)
0 ft 11 13/16
in.
(300)
U 18 in.
(457)
14 in.
(355)
10 in.
(254)
2 ft 4 1/2 in.
(724)
2 ft 11 3/16 in.
(894)
5 ft 2 13/16 in.
(1,595)
1 ft 0 3/8 in.
(314)
Y 24 in.
(609)
20 in.
(508)
16 in.
(406)
3 ft 4 in.
(1,016)
3 ft 3 15/16 in.
(1,014)
6 ft 3 7/8 in.
(1,927)
1 ft 5 7/8 in.
(454)
See note in Evaporator - compact waterboxes - A through L evaporators - ft in. (mm).

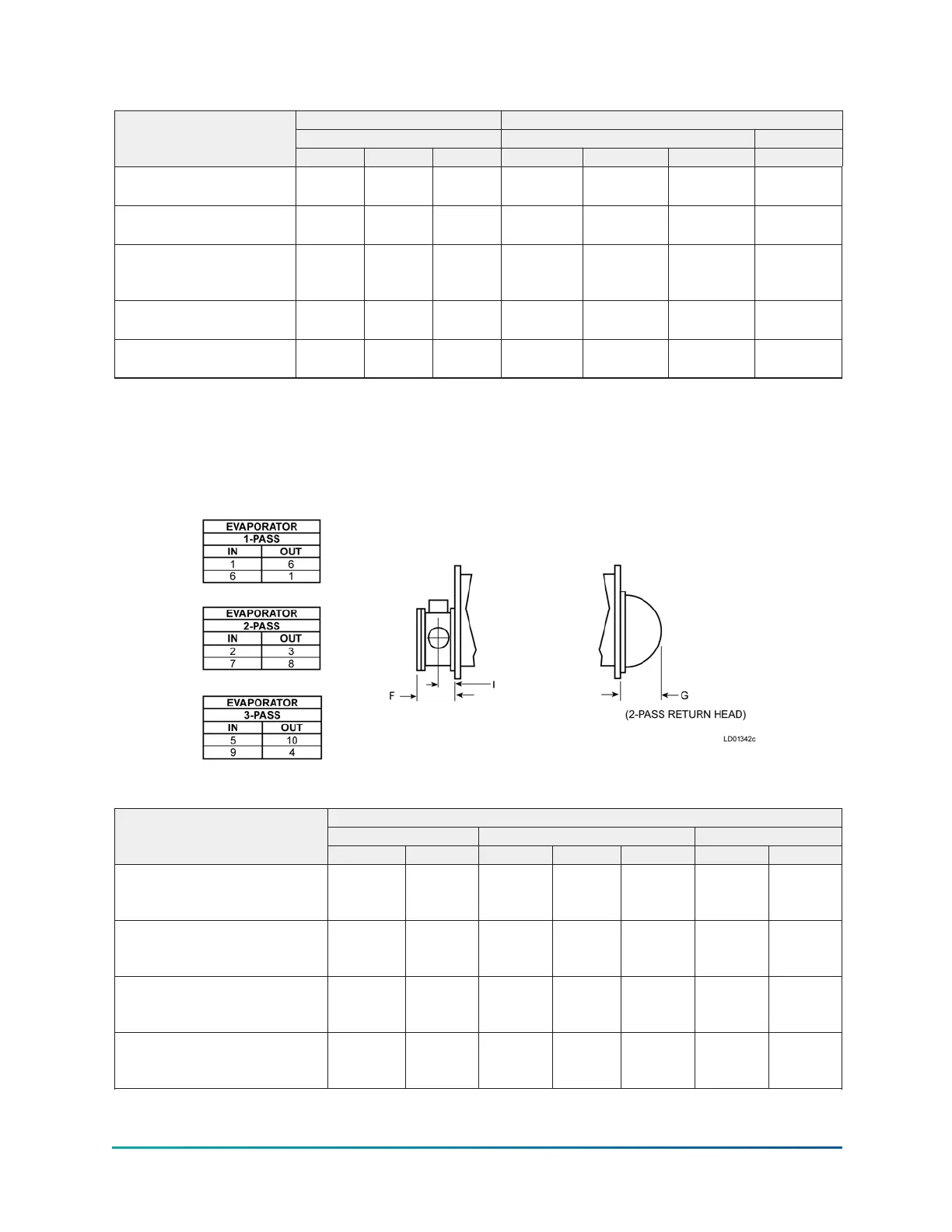

Evaporator - nozzle arrangements - standard - ft in. (mm)
Figure 30: Dimensions of evaporator - nozzle arrangements - standard (mm)
Table 51: Evaporator nozzle dimensions
Evaporator nozzle dimensions ft in. (mm)
1-pass 2-pass 3-pass
Evaporator shell code
F I F G I F I
A 1 ft 7 in.
(483)
0 ft 8 3/4 in.
(222)
1 ft 5 in.
(432)
0 ft 6 1/2
in.
(165)
0 ft 7 3/4 in.
(197)
1 ft 5 in.
(432)
0 ft 7 3/4 in.
(197)
C,D 1 ft 10 3/4
in.
(578)
0 ft 10 5/8
in.
(270)
1 ft 8 5/8 in.
(524)
0 ft 7 in.
(178)
0 ft 9 1/2 in.
(241)
1 ft 8 5/8 in.
(524)
0 ft 9 1/2 in.
(241)
E,F 2 ft 1 3/4 in.
(654)
1 ft 0 1/8 in.
(308)
1 ft 10 in.
(559)
0 ft 7 1/2
in.
(191)
0 ft 10 1/4
in.
(260)
1 ft 10 in.
(559)
0 ft 10 1/4
in.
(260)
G,H 2 ft 5 5/8 in.
(752)
1 ft 1 7/8 in.
(352)
2 ft 5 5/8 in.
(752)
1 ft 9 7/8
in.
(556)
1 ft 1 7/8 in.
(352)
2 ft 5 5/8 in.
(752)
1 ft 1 7/8 in.
(352)
Model YK (Style G) Centrifugal Liquid Chiller52
