Johnson Controls YORK YK Series - Evaporator Marine Waterbox Nozzle Arrangements - ft in. (mm)

Evaporator marine waterbox nozzle arrangements - ft in.
(mm)

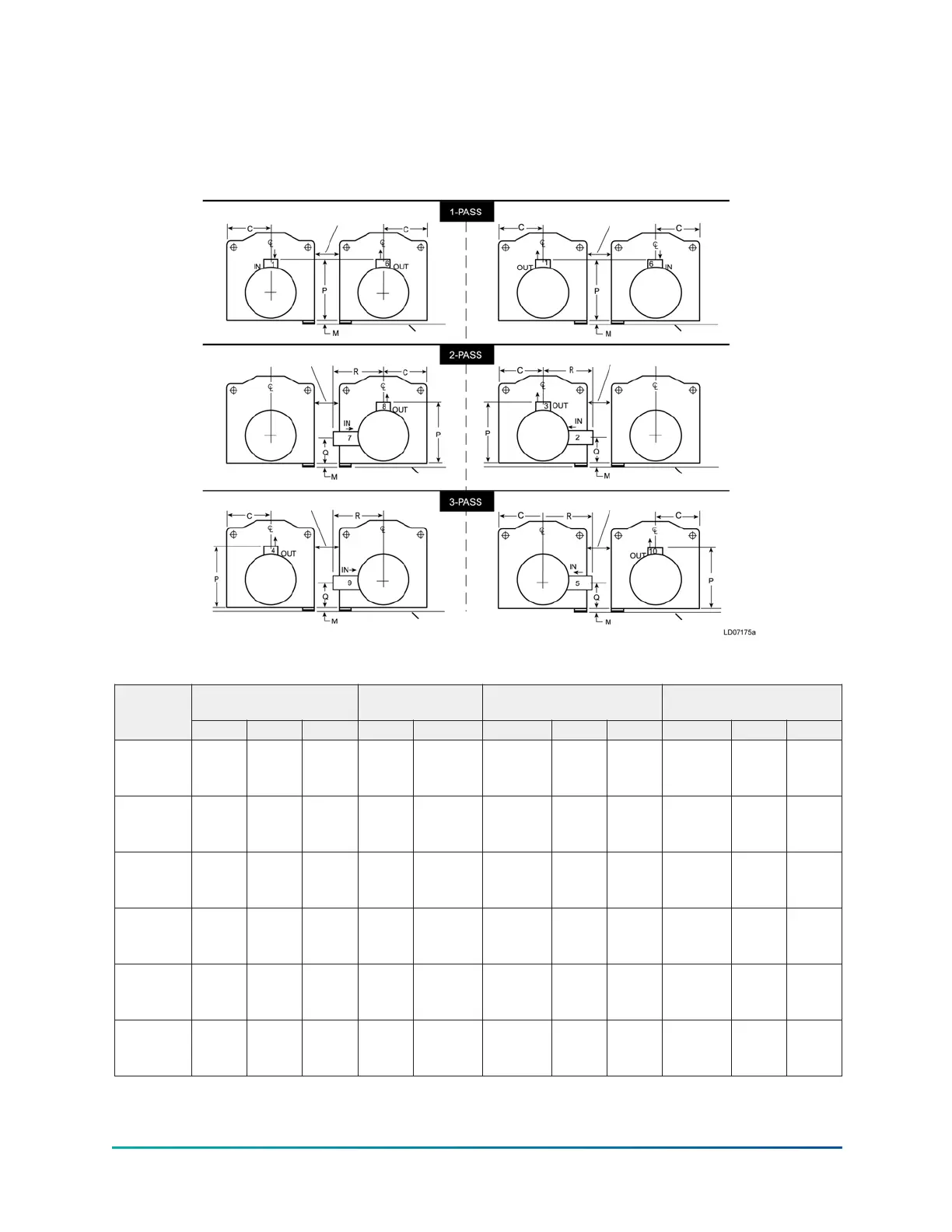

Figure 32: Dimensions of evaporator marine waterboxes ft in. (mm)
Table 53: Dimensions of marine waterboxes - 150 psi round
Nozzle pipe size in. (mm)
Number of passes
1-pass 2-pass 3-passEvaporator
shell code
1 2 3 C
P
5
P
5
Q
5
R
P
5
Q
5
R
A 8 in.
(203)
6 in.
(152)
4 in.
(101)
1 ft 3 1/2
in.
(394)
3 ft 7 in.
(1,092)
3 ft 7 in.
(1,092)
0-11 in.
(279)
1 ft 3 1/4
in.
(387)
3 ft 7 in.
(1,092)
0 ft 11
in.
(279)
1 ft 3 1/4
in.
(387)
C,D 10 in.
(254)
8 in.
(203)
6 in.
(152)
1 ft 5 1/2
in.
(445)
3 ft 11 in.
(1,194)
3 ft 11 in.
(1,194)
0 ft 10
in.
(254)
1 ft 6 1/2
in.
(470)
3 ft 11 in.
(1,194)
0 ft 10
in.
(254)
1 ft 6 1/2
in.
(470)
E,F 14 in.
(356)
10 in.
(254)
8 in.
(203)
1 ft 7 1/2
in.
(495)
4 ft 3 in.
(1,295)
4 ft 3 in.
(1,295)
0 ft 11
in.
(279)
1 ft 9 1/2
in.
(546)
4 ft 3 in.
(1,295)
0 ft 11
in.
(279)
1 ft 9 1/2
in.
(546)
G,H 14 in.
(356)
10 in.
(254)
8 in.
(203)
2 ft 0 in.
(610)
4 ft 5 1/2
in.
(1,359)
4 ft 5 1/2
in.
(1,359)
1 ft 0 1/2
in.
(318)
1 ft 11
1/2 in.
(597)
4 ft 5 1/2
in.
(1,359)
0 ft 11
in.
(279)
1 ft 9 7/8
in.
(556)
I,J,K,L 16 in.
(406)
12 in.
(305)
10 in.
(254)
2 ft 1 1/4
in.
(641)
5 ft 0 3/8
in.
(1,534)
5 ft 0 3/8
in.
(1,534)
0 ft 10
1/2 in.
(267)
2 ft 2 1/2
in.
(673)
5 ft 0 3/8
in.
(1,534)
0 ft 10
1/2 in.
(267)
2 ft 2 1/2
in.
(673)
M,N 18 in.
(457)
14 in.
(356)
12 in.
(305)
2 ft 4 1/2
in.
(724)
5 ft 8 1/2
in.
(1,740)
5 ft 8 1/2
in.
(1,740)
1 ft 2 in.
(356)
2 ft 2 1/2
in.
(673)
5 ft 8 1/2
in.
(1,740)
1 ft 2 in.
(356)
2 ft 4 3/4
in.
(730)
