P and Q compressor units (metric)

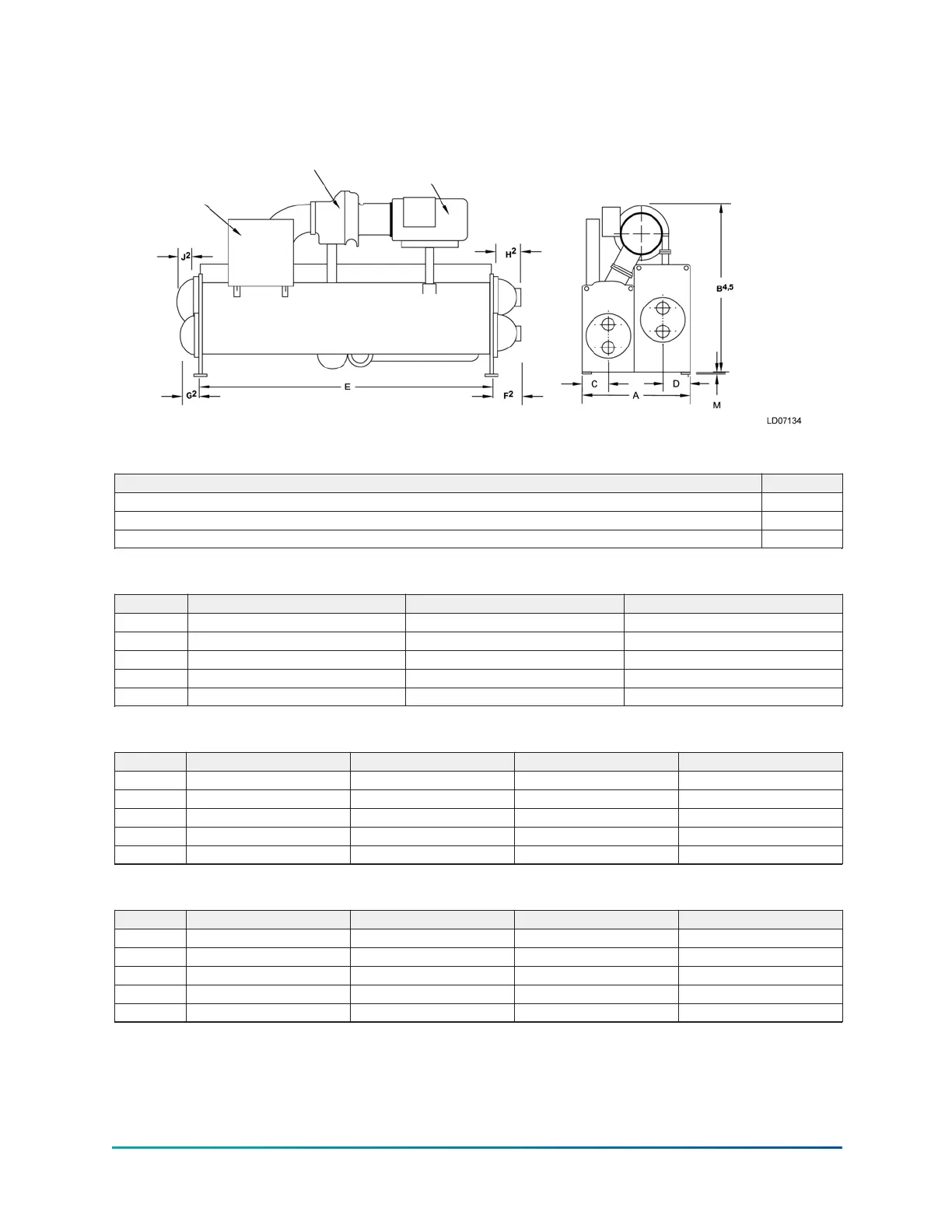

Figure 14: P and Q compressor unit dimensions (mm)
Table 13: Additional operating height clearance
Type of chiller mounting M (mm)
Neoprene pad isolators 45
Spring isolators 25 mm deflection 25
Direct mount 19
Table 14: Q3 compressor, evaporator - condenser shell codes
Series A–A (mm) C–C (mm) D–D (mm)
A 1,549 1,676 1,676
B 2,134 2,229 2,229
C 394 445 445
D 381 394 394
E 3,658 3,658 4,877
Table 15: Q4 compressor, evaporator - condenser shell codes
Series C–C (mm) C–B (mm) D–D (mm) E–E (mm)
A 1,676 1,949 1,676 2,134
B 2,197 2,423 2,197 2,350
C 445 445 445 495
D 394 530 394 445
E 3,658 3,658 4,877 3,658
Table 16: Q5 compressor, evaporator - condenser shell codes
Series C–C (mm) D–D (mm) E–E (mm) F–F (mm)
A 1,676 1,676 2,134 2,134
B 2,403 2,403 2,578 2,578
C 445 445 495 495
D 394 394 445 445
E 3,658 4,877 3,658 4,877
Model YK (Style G) Centrifugal Liquid Chiller34
