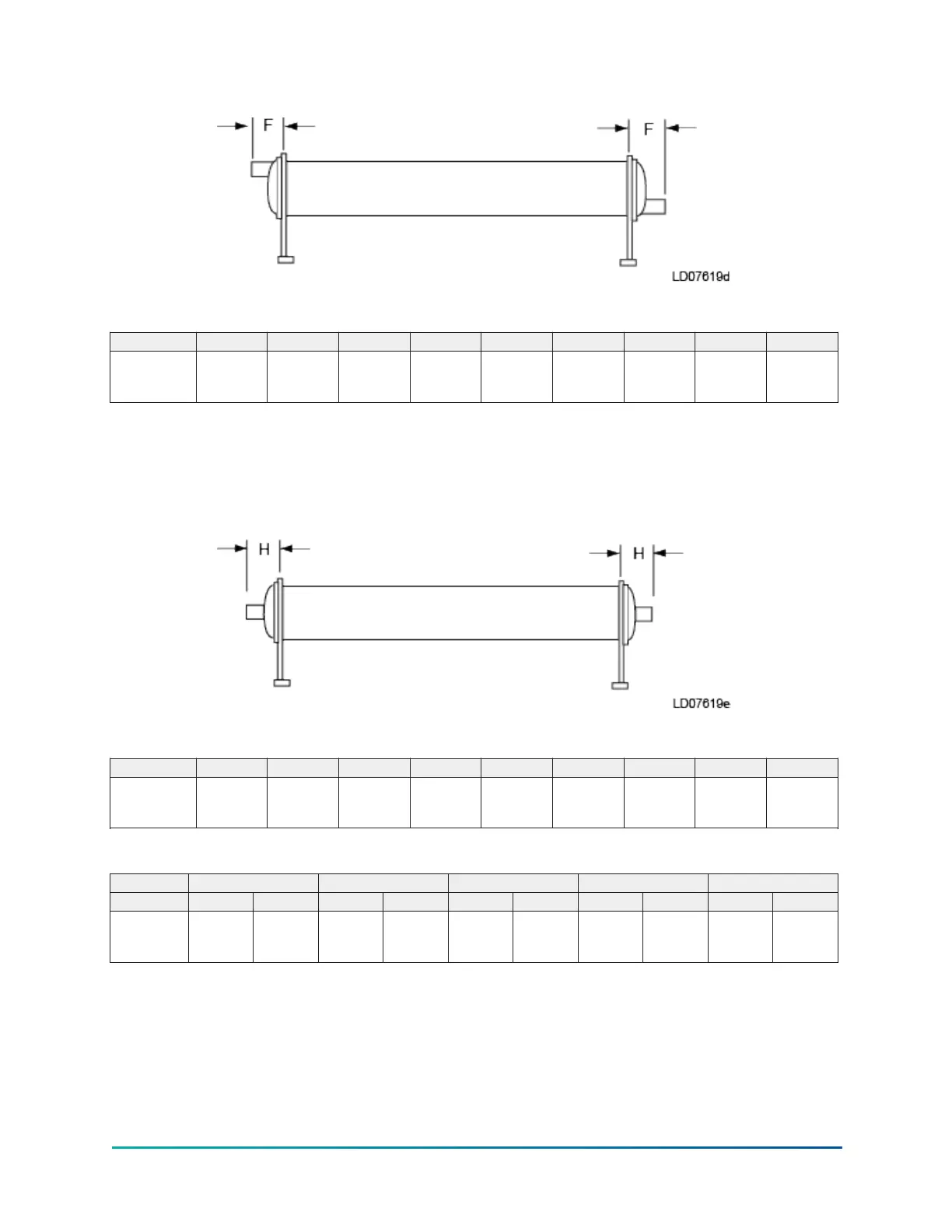

Figure 21: Three pass evaporator dimensions
Table 39: Three pass evaporators, shell codes in. (mm)
Dimensions A C,D E,F G,H I,J,K,L M,N P,Q P,S,W X,Z
F 1 ft 2 1/4
in.
(362)
1 ft 3 in.
(381)
1 ft 3 1/2
in.
(394)
1 ft 3 3/4
in.
(400)
1 ft 5 1/2
in.
(445)
1 ft 11 5/8
in.
(600)
1 ft 11 5/8
in.
(600)
2 ft 0 5/8
in.
(625)
2 ft 1 3/4
in.
(654)
See note in P and Q compressor units (standard).
Condenser compact waterboxes - ft in. (mm)
Figure 22: One pass condensers dimensions
Table 40: One pass condensers, shell codes ft in. (mm)
Dimensions A C,D E,F J,K,L M,N P,Q R,S T,V,W X,Z
H 1 ft 1 7/8
in.
(352)
1 ft 1 7/8
in.
(352)
1 ft 3 in.
(381)
1 ft 4 in.
(406)
1 ft 2 7/8
in.
(378)
1 ft 4 7/8
in.
(429)
1 ft 7 1 3/8
in.
(492)
1 ft 7 1/2
in.
(495)
1 ft 9 3/4
in.
(552)
Table 41: Double bundle heat recovery condensers, shell codes
B I O U Y
Dimensions Tower Heating Tower Heating Tower Heating Tower Heating Tower Heating
H 1 ft 6 1/2
in.
(470)
1 ft 5 in.
(432)
1 ft 7 1/2
in.
(495)
1 ft 4 3/4
in.
(425)
1 ft 9 1/2
in.
(546)
1 ft 6 in.
(457)
1 ft 10 1/4
in.
(565)
1 ft 8 in.
(508)
2 ft 4 3/4
in.
(730)
1 ft 10 1/2
in.
(572)
43Model YK (Style G) Centrifugal Liquid Chiller
