Johnson Controls YORK YK Series - K Compressor Units (Standard)

K compressor units (standard)

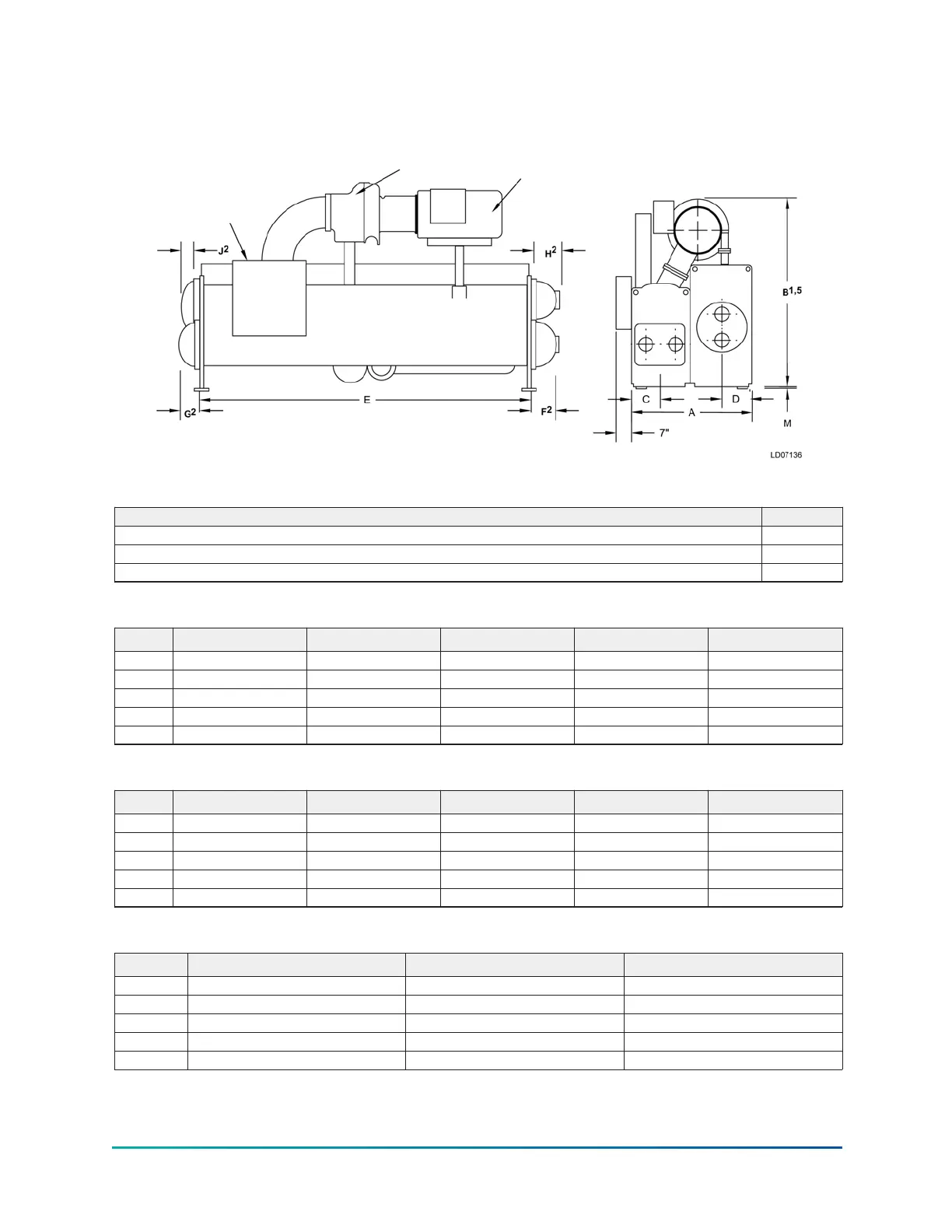

Figure 17: K compressor unit dimensions (ft in.)
Table 25: Additional operating height clearance
Type of chiller mounting M (in.)
Neoprene pad isolators 1 3/4
Spring isolators 1 in. deflection 1
Direct mount 3/4
Table 26: K1 compressor, evaporator - condenser shell
I-K, K–K M–M N–N P–P Q–Q
A 7 ft 6 1/2 in. 8 ft 7 in. 8 ft 7 in. 9 ft 1 1/2 in. 9 ft 1 1/2 in.
B 9 ft 7 in. 11 ft 4 in. 11 ft 4 in. 11 ft 5 1/2 in. 11 ft 5 1/2 in.
C 2 ft 1 1/4 in. 2 ft 4 1/2 in. 2 ft 4 1/2 in. 2 ft 5 1/2 in. 2 ft 5 1/2 in.
D 1 ft 8 in. 1 ft 11 in. 1 ft 11 in. 2 ft 1 1/4 in. 2 ft 1 1/4 in.
E 14 ft 0 in. 14 ft 0 in. 16 ft 0 in. 14 ft 0 in. 16 ft 0 in.
Table 27: K2 compressor, evaporator - condenser shell codes
M–M M–U N–N P–P Q–Q
A 8 ft 7 in. 9 ft 6 in. 8 ft 7 in. 9 ft 1 1/2 in. 9 ft 1 1/2 in.
B 11 ft 4 in. 11 ft 10 in. 11 ft 4 in. 11 ft 5 in. 11 ft 5 in.
C 2 ft 4 1/2 in. 2 ft 4 1/2 in. 2 ft 4 1/2 in. 2 ft 5 1/2 in. 2 ft 5 1/2 in.
D 1 ft 11 in. 2 ft 4 1/2 in. 1 ft 11 in. 2 ft 1 1/4 in. 2 ft 1 1/4 in.
E 14 ft 0 in. 14 ft 0 in. 16 ft 0 in. 14 ft 0 in. 16 ft 0 in.
Table 28: K3 compressor, evaporator - condenser shell codes
N–N Q–Q R–R
A 8 ft 7 in. 9 ft 1 1/2 in. 9 ft 9 in.
B 10 ft 8 in. 11 ft 6 in. 11 ft 10 in.
C 2 ft 4 1/2 in. 2 ft 5 1/2 in. 2 ft 8 in.
D 1 ft 11 in. 2 ft 1 1/4 in. 2 ft 3 1/2 in.
E 16 ft 0 in. 16 ft 0 in. 16 ft 0 in.
Model YK (Style G) Centrifugal Liquid Chiller38
