Johnson Controls YORK YK Series User Manual

Table 56: 2 pass condenser nozzle options
Cooling water
IN OUT
12 13
17 18
Table 57: 3 pass condenser nozzle options
Cooling water
IN OUT
15 20
19 14

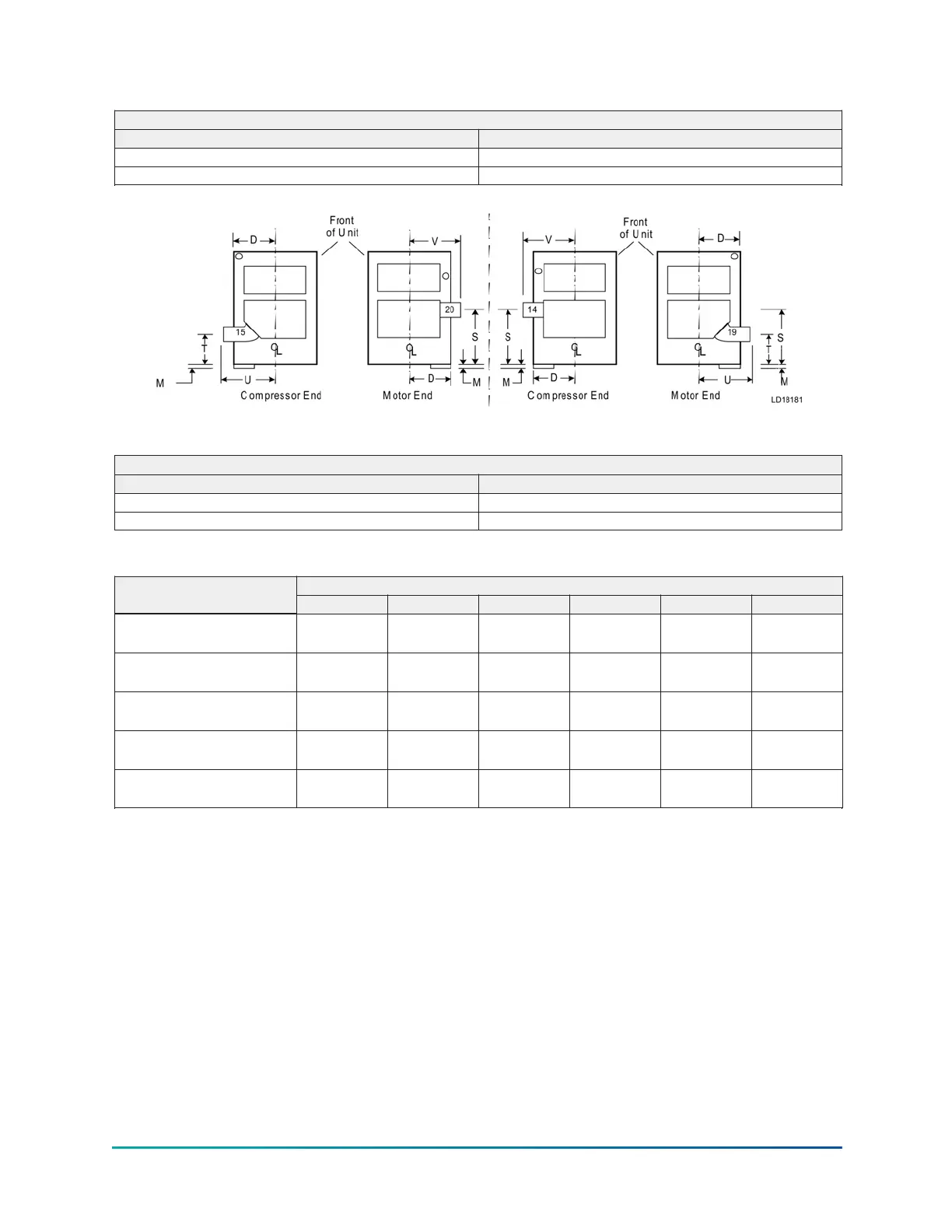

Table 58: Dimensions of 1 pass marine waterboxes - 150 psi (rectangular) - ft in. (mm)
Nozzle pipe size in. (mm)Condenser shell code
1 2 3 D S U
B 10 in.
(254)
8 in.
(203)
6 in.
(152)
1 ft 8 7/8 in.
(530)
1 ft 9 1/4 in.
(539)
2 ft 6 3/4 in.
(780)
I 14 in.
(355)
10 in.
(254)
8 in.
(203)
1 ft 11 3/8 in.
(593)
1 ft 10 1/4 in.
(559)
2 ft 9 3/8 in.
(838)
O 16 in.
(406)
12 in.
(305)
10 in.
(254)
2 ft 3 3/8 in.
(695)
2 ft 0 3/8 in.
(610)
3 ft 2 3/8 in.
(975)
U 18 in.
(457)
14 in.
(355)
10 in.
(254)
2 ft 4 1/2 in.
(723)
2 ft 11 3/16 in.
(893)
3 ft 5 9/16 in.
(1,056)
Y 24 in.
(610)
20 in.
(508)
16 in.
(406)
3 ft 4 in.
(1,016)
3 ft 3 15/16 in.
(1,014)
4 ft 7 9/16 in.
(1,411)
Model YK (Style G) Centrifugal Liquid Chiller60
