Johnson Controls YORK YK Style G OPTIVIEW User Manual

JOHNSON CONTROLS
13
SECTION 1 - INTRODUCTION
FORM 160.75-N1
ISSUE DATE: 4/30/2014
1
ALL DIMENSIONS ARE IN INCHES (MM)

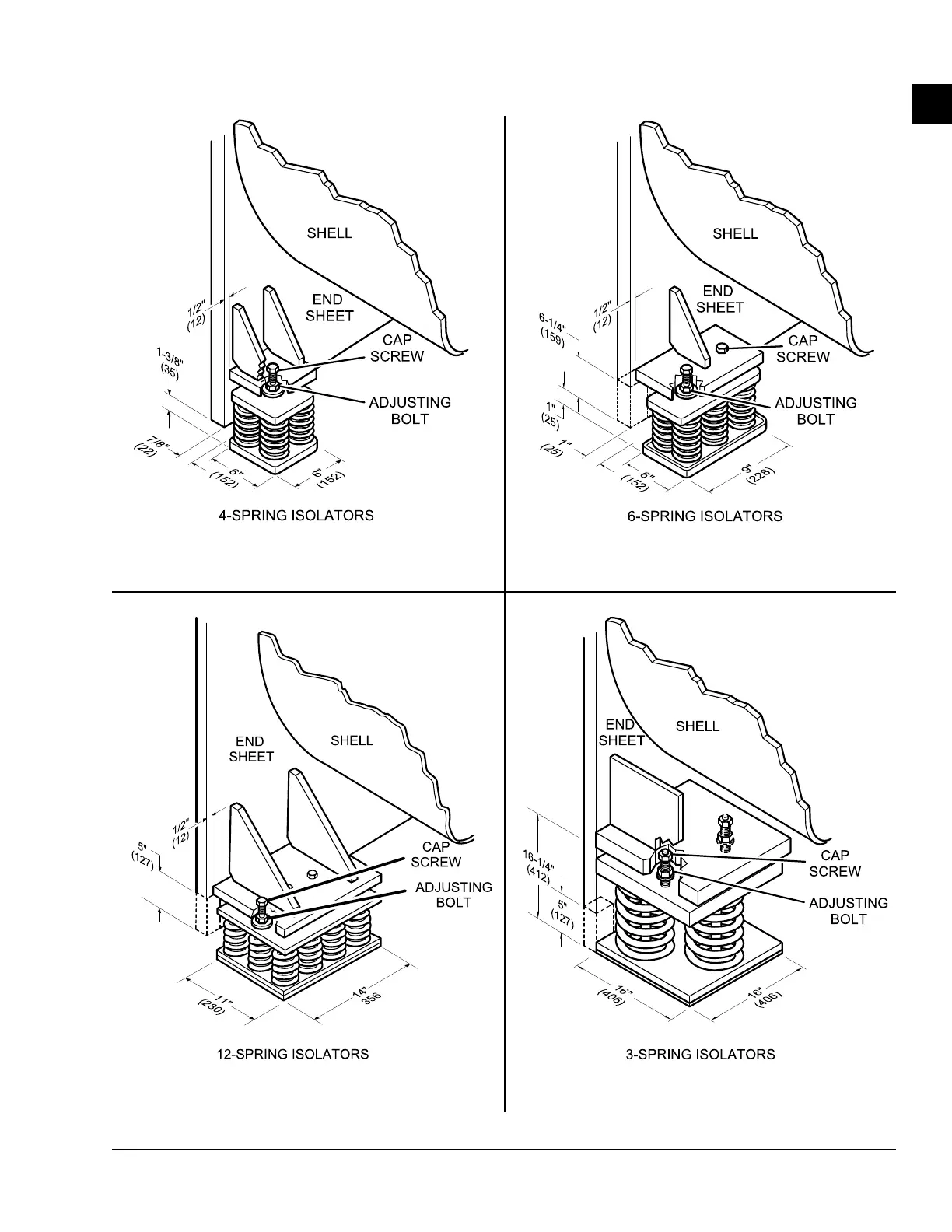

FIGURE 5 - SPRING ISOLATORS
LD12645LD126544
UNIT WEIGHT
10,000 Lbs UP TO 35,009 Lbs
(4,536 Kgs UP TO 15,880 Kgs)
UNIT WEIGHT
35,010 Lbs UP TO 58,349 Lbs
(15,881 Kgs UP TO 26,467 Kgs)
UNIT WEIGHT
89,341 Lbs UP TO 115,000 Lbs
(40,252 Kgs UP TO 52,164 Kgs)
LD12646
UNIT WEIGHT
115,000 Lbs. UP TO 190,000 Lbs
(52,163 Kgs UP TO 86,182 Kgs)
LD12647
