JOHNSON CONTROLS
14
FORM 160.75-N1
ISSUE DATE: 4/30/2014
SECTION 1 - INTRODUCTION

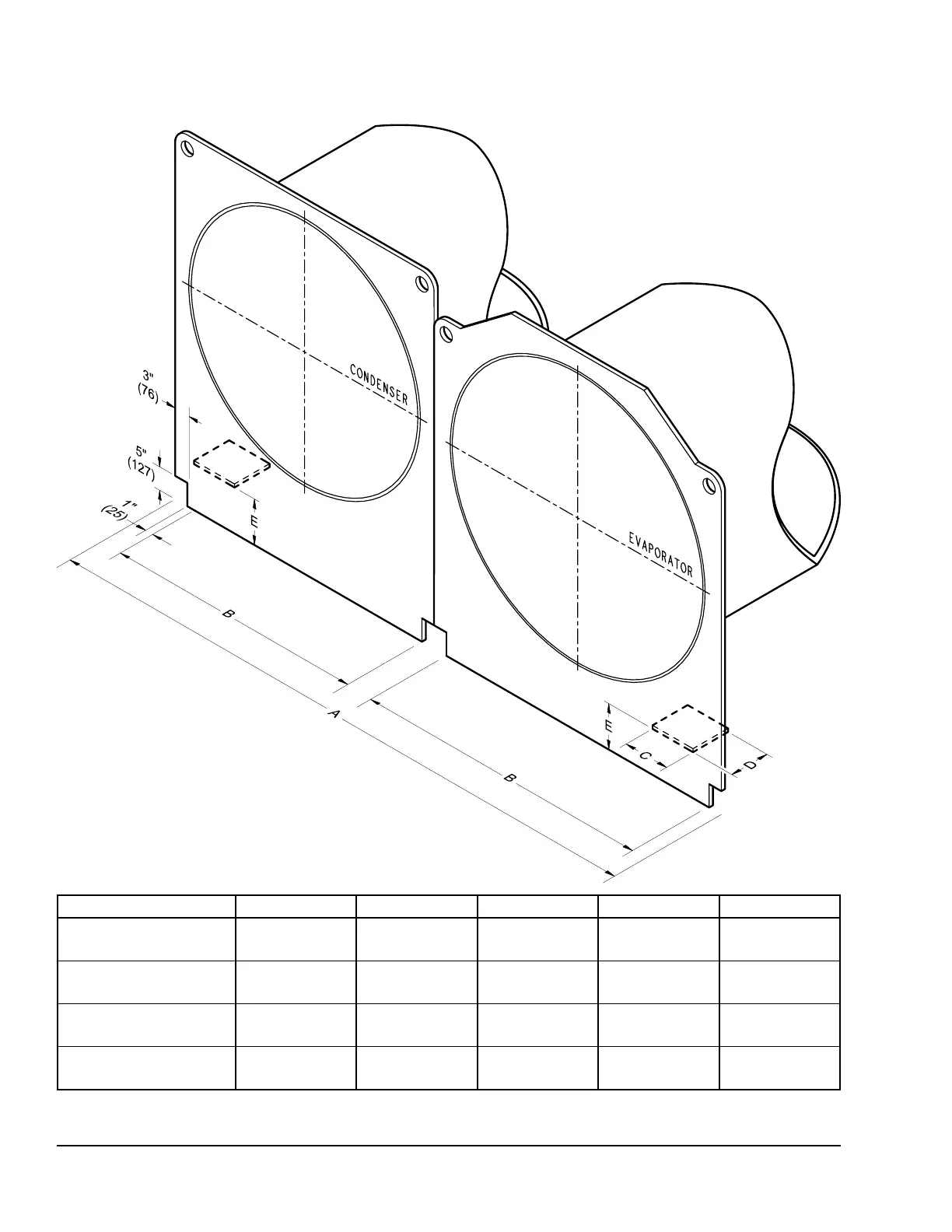

FIGURE 6 - SPRING ISOLATORS
ALL DIMENSIONS ARE IN INCHES (MM)
UNIT WEIGHT DIM "A" DIM "B" DIM "C" DIM "D" DIM "E"
10,000 - 35,009 Lbs
(4,536 - 15,880 Kgs)
See
Figures 11-16
See
Figures 11-16
6"
(152)
6-7/8"
(175)
5-1/2"
(140)
35,010 - 58,349 Lbs
(15,881 - 26,467 Kgs)
See
Figures 11-16
See
Figures 11-16
9"
(229)
7"
(178)
6-1/4"
(159)
89,341 - 115,000 Lbs
(40,252 - 52,164 Kgs)
See
Figures 11-16
See
Figures 11-16
13-1/2"
(343)
8"
(203)
5"
(127)
115,000 - 190,000 Lbs
(52,163 - 86,182 Kgs)
See
Figures 11-16
See
Figures 11-16
16"
(406)
17"
(432)
16-1/4"
(413)
LD12643a
