SECTION 2 - INSTALLATION
FRONT
OF
UNIT
FLOOR
LINE
FLOOR
LINE
FLOOR
LINE
FLOOR
LINE
FRONT
OF
UNIT
FRONT
OF
UNIT
COMPRESSOR END MOTOR END
COMPRESSOR END MOTOR END
COMPRESSOR END MOTOR END
COMPRESSOR END MOTOR END
EVAPORATORS – COMPACT WATERBOXES – M THRU Z EVAPORATORS - FT - IN (MM)
SHELL
CODES
1 PASS
IN OUT
M–Z
AA HH
HH AA
SHELL
CODES
2 PASS
IN OUT
M,N,P,Q
CC BB
KK JJ
SHELL
CODES
2 PASS
IN OUT
R,S,W,
X and Z
DD CC
EE BB
LL KK
MM JJ
SHELL
CODES
3 PASS
IN OUT
M–Z
GG NN
PP FF
COMPACT WATERBOXES – 150 PSI RECTANGULAR
EVAPORATOR
SHELL CODE
NOZZLE PIPE SIZE IN (MM) EVAPORATOR NOZZLE DIMENSIONS FT-IN (MM)
NUMBER OF PASSES 1-PASS 2-PASS 3-PASS
1 2 3 C AA
5
BB
5
DD
5
EE BB
5
DD
5
M,N
18"
(457)
14"
(356)
12"
(304)
2'-4 1/2"
(724)
3'-0"
(914)
1'-8 1/2"
(521)
4'-3 1/2"
(1308)
-
1'-8 1/2"
(521)
4'-3 1/2"
(1308)
P, Q
18"
(457)
14"
(356)
12"
(304)
2'-5 1/2"
(749)
3'-1 1/2"
(953)
1'-10"
(559)
4'-5"
(1346)
-
1'-10"
(559)
4'-5"
(1346)
QV, QT
20"
(508)
16"
(406)
12"
(305)
2'-5 1/2"
(749)
3'-1 1/2"
(953)
1'-11 1/2"
(597)
4'-3 1/2"
(1308)
-
1'-11 1/2"
(597)
4'-3 1/2"
(1308)
R,S,W
20"
(508)
18"
(457)
14"
(356)
2'-8"
(813)
3'-5 1/4"
(1048)
2'-4 1/2"
(724)
4'-6 1/2"
(1384)
0'-10 1/2"
(267)
2'-1"
(635)
4'-10"
(1473)
X,Z
20"
(508)
18"
(457)
14"
(356)
2'-11 1/2"
(902)
3'-9 3/4"
(1162)
2'-8 3/4"
(832)
4'-10 3/4"
(1492)
0'-11"
(279)
2'-2 7/8"
(683)
5'-4 5/8"
(1641)

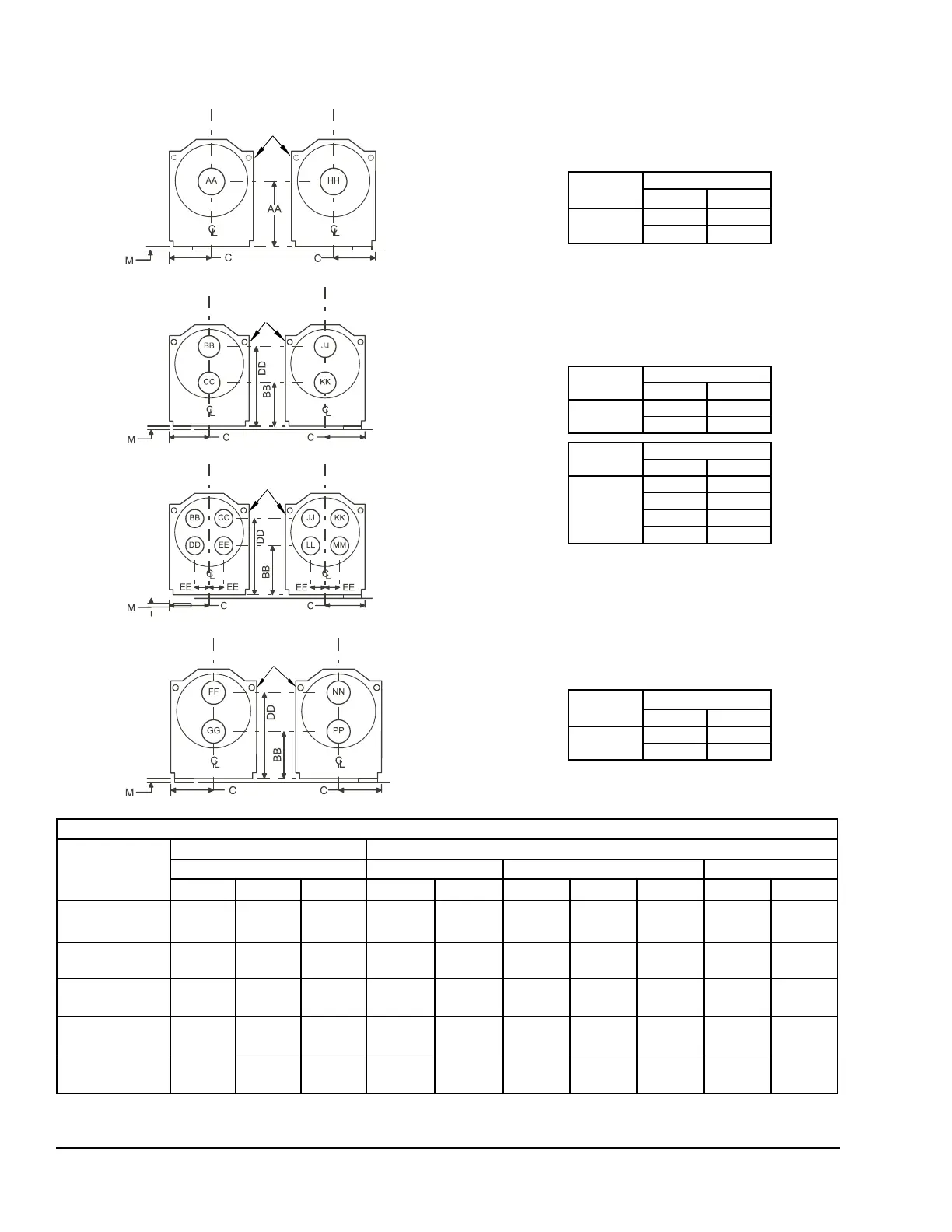

FIGURE 20 - DIMENSIONS – EVAPORATOR COMPACT WATERBOXES M THRU Z EVAPORATORS
LD07173a
See Notes on page 30.
