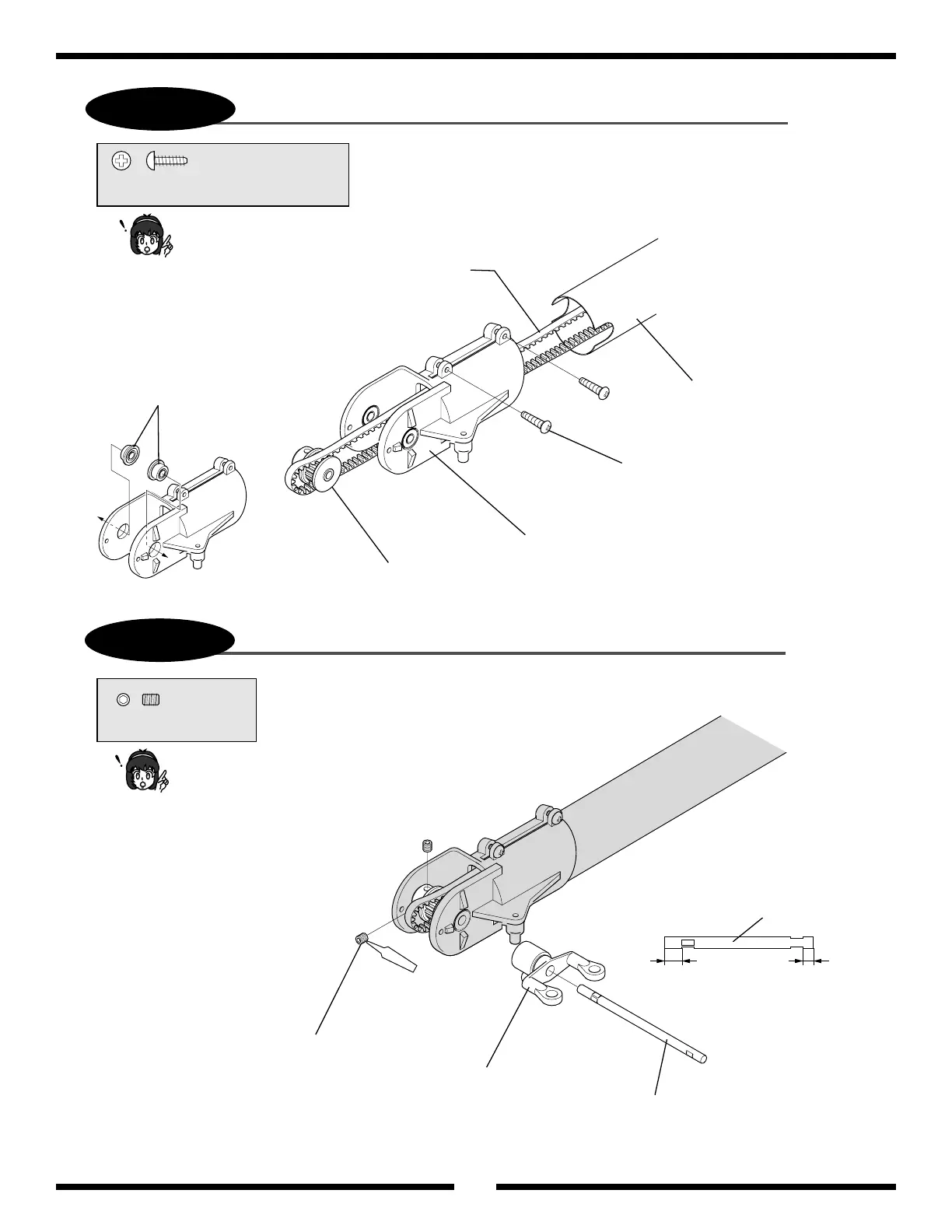

3-1
3-2
..................................... 2 pcs
2.6 x 8 mm Self Taping Screw
Tail Boom
2.6 x 8 mm Self Tapping Screw (2)
Tail Case
Tail Drive Pulley
Tail Output Shaft Bearing
................ 2 pcs
3 x 4 mm Set Screw
3 x 4 mm Set Screw (2)
Use Threadlock on
both set of screws.
Tail Pitch Slider Assembly
Tail Output Shaft
Install tail output shaft assembly in this direction.
6.5 mm
4 mm
15
Tail Gear Case Assembly
Tail Output Shaft/Pitch Slider Installation
Use caution not to over tighten the screw when
securing the tail gear case as it could cause
damage to the case or distort the shape of the
tail boom.
Be sure to note the correct orientation of the
tail boom so the slotted side is toward the tail
gear case. Insert the tail boom fully into the
tail gear case before tightening.
Position the tail output shaft so that the
two 90° flat spots are aligned with the set
screws in the tail case pulley. Before securing
the set screws, please be sure that the tail
output shaft is positioned correctly into the
2 bearings of the tail gear case.
To Next Page
