120 3-SERVO CCPM SWASHPLATE MIXING
The JR 120° CCPM or Cyclic/Collective Pitch Mixing system offers the user a control system that can accomplish the same control inputs as
the one servo standard system mentioned above, but with increased precision and reduced complexity.
As with the one servo system, the JR CCPM system utilizes three servos for the three main controls: aileron (roll), elevator(pitch), and
collective. The CCPM lower swashplate ring is designed with only three control balls, spaced at 120° from each other, hence the 120° CCPM
designation. Although the control balls are not at 90° as in the standard system, the aileron (roll) axis is still parallel to the main mechanics of the
helicopter, and the elevator (pitch) axis still functions at 90° to the mechanics as does the one servo system. Please refer to the diagram below
for clarification.
The main difference in the way that these two systems operate is that unlike the one servo system where the three servos work completely
independent from each other, the CCPM systems work as a team to achieve the same control inputs. For example, if an aileron (roll) input is given,
two servos work together to move the swashplate left and right. If an elevator (pitch) input is given, all three servos work together to move the
swashplate fore and aft. For collective, it’s also the strength of three servos that will move the swashplate up and down the main rotor shaft. With
two or three servos working at the same time during any given control input, servo torque is maximized and servo centering is also increased. In
addition to these benefits, CCPM achieves these control responses without the need for complex mechanical mixing systems that require many
more control rods and parts to set up.
This amazing CCPM control is achieved through special CCPM swashplate mixing that is preprogrammed into many of today’s popular radio
systems. Since the 120° CCPM function is preprogrammed, CCPM is no more complicated to set up than a conventional one servo standard
system. When you factor in the reduced parts count and easy programming, CCPM is actually easier to set up and operate than many
conventional systems.
For JR radio owners, please refer to the radio information contained at the front of this manual or on the following page to determine if your
radio system has the CCPM function. For other brands of radio systems, please contact the radio manufacturer for CCPM information. Please note
that it is not possible to program a non-CCPM radio system for CCPM operation.
UNDERSTANDING SWASHPLATE CONTROL SYSTEMS

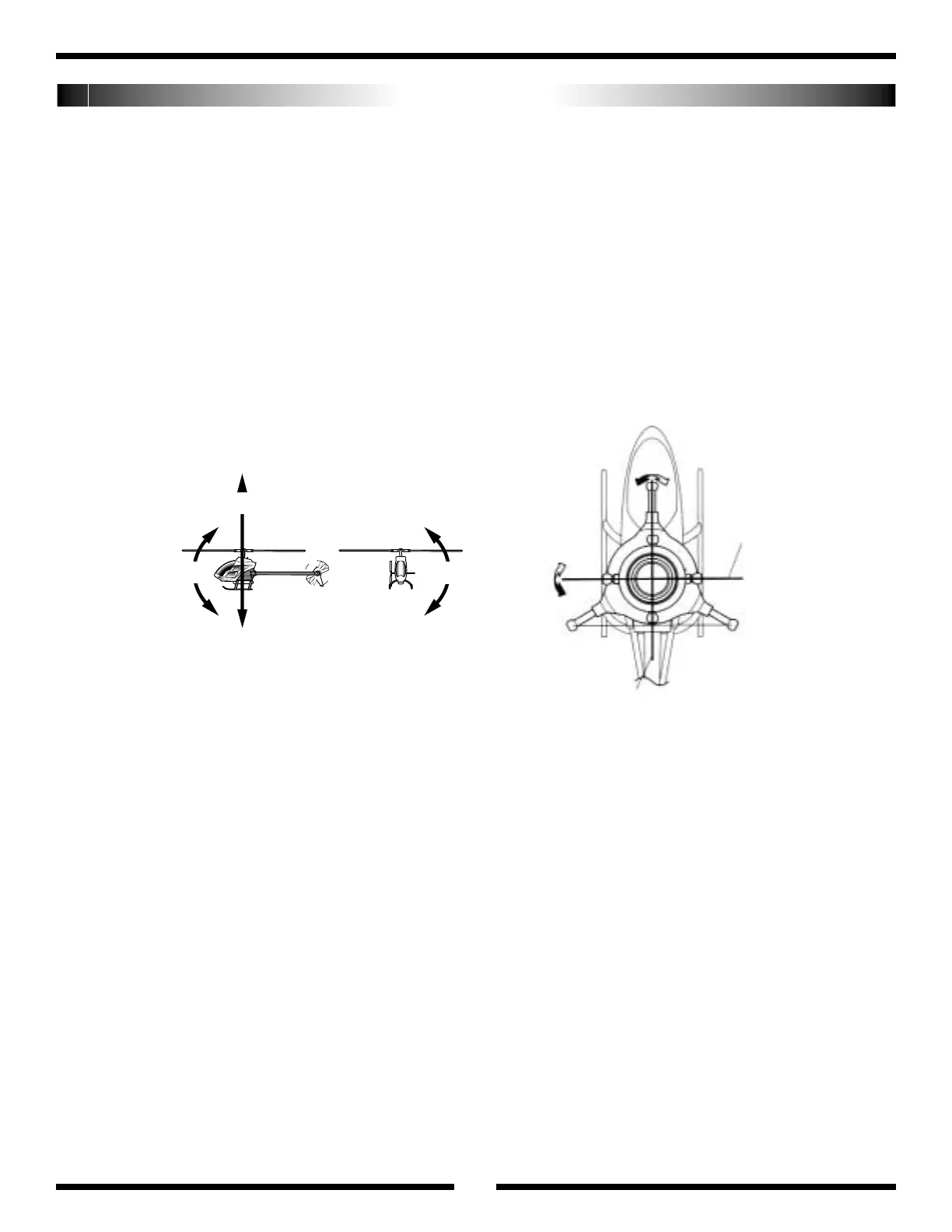

Elevator Axis
120°
JR 120° 3 Servo CCPM Control System
Aileron Axis
23
Pitch Axis
Elevator Axis
Aileron Axis
