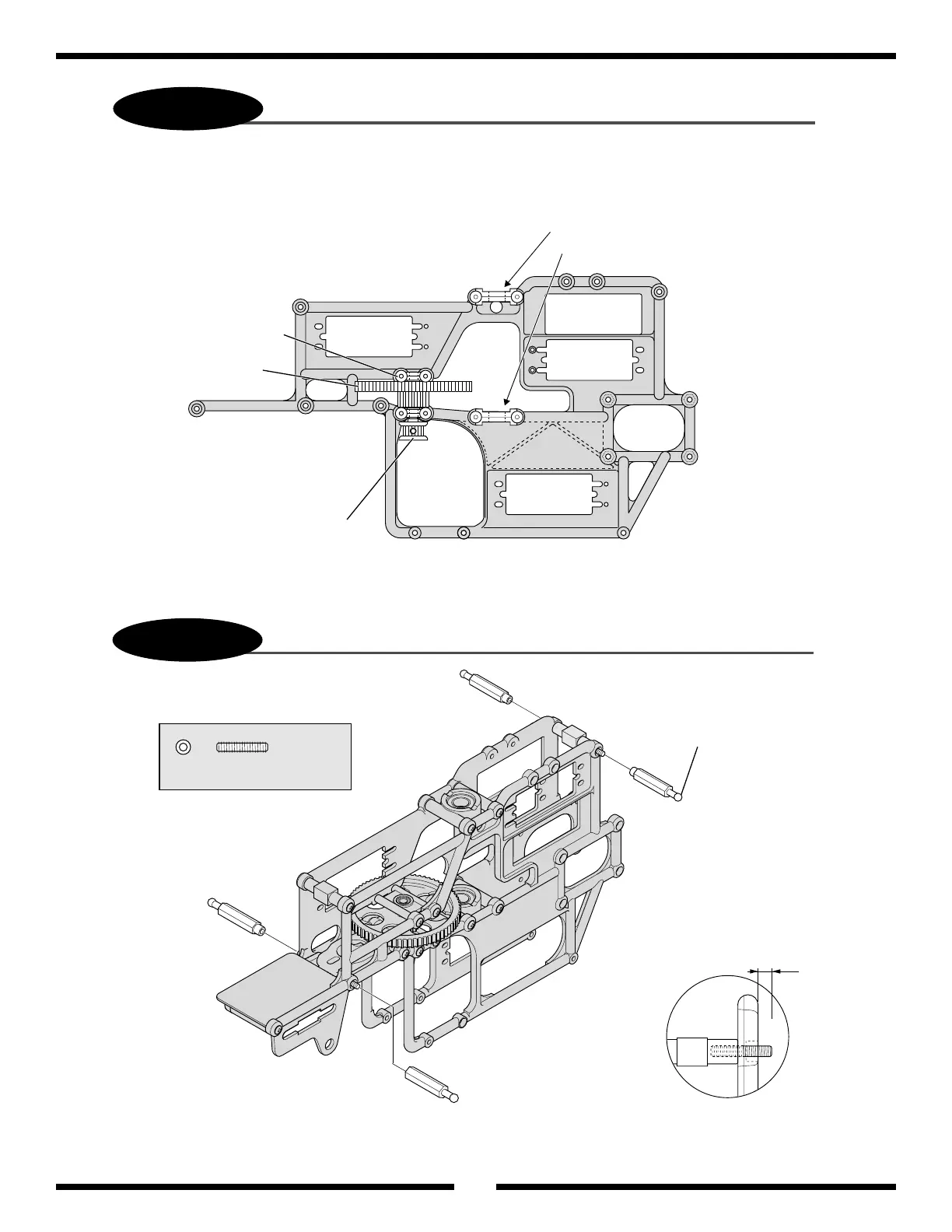

1-1

1-2

Upper Main Shaft Bearing Block

Lower Main Shaft Bearing Block

Front Tail Rotor Drive Pulley

Upper Intermediate Gear

Bearing Block

Intermediate Gear

Body Mount 25.5 mm (x4)

The 2.6 x 15 mm set

screw should protrude

past the main frame

side by 4 mm.

2.6 x 15 mm Set Screw

............ 4 pcs

Attach the body mounts to the frame as shown

Preassembled Main Frame Components

Body Mount Attachment

Attach the body mounts to the frame as shown.

Note: Please familiarize yourself with

the components in this assembly

before proceeding to the next step.
