HELI - SYSTEM MENU - ADVANCED FUNCTIONS
ADDITIONAL FLIGHT MODES 3 and 4
H-10
There are two functions in the SYSTEM Menu that
control some of the more advanced features of the X9303
2.4 system. They are the Devic. SEL and
Swash Type functions.
The Devic. SEL function is used to activate and deactivate
2 additional Flight Modes; change switch assignments
from the system defaults; activate and deactivate switches/
channels and to activate/deactivate the Hover Throttle,
and Hover Pitch levers, and to Activate/Deactivate the
Governor function.
The Swash Type function is used to indicate the
Swashplate type (Normal (1 Servo), CCPM 180, 120, 140,
and both 3 and 4 servo 90).
Each of the options in these two functions is described
below to the extent necessary to determine if they should
be used for the helicopter being programmed.
The X9303 2.4 is capable of offering the pilot up to 6
separate flight modes. The X9303 2.4 is factory preset to
offer the pilot 4 separate Flight Modes (N, 1, 2, H). There
are 2 additional flight modes, numbered 3 and 4, that can
be activated through the Device Select function.
If the additional flight modes are desired, please follow
the activation procedure below.
To Activate 2 Additional Flight Modes
(Flight Modes 3 and 4)
1. From the SYSTEM Menu highlight and select Devic.
SEL by using the Rolling Selector.
2. Highlight and select F.MOD Extra using the Rolling
Selector. When selected, five options appear: AIL D/
R, ELE D/R, RUD D/R, HOLD SW, and GEAR SW.
Highlight and select the switch that is to be used to

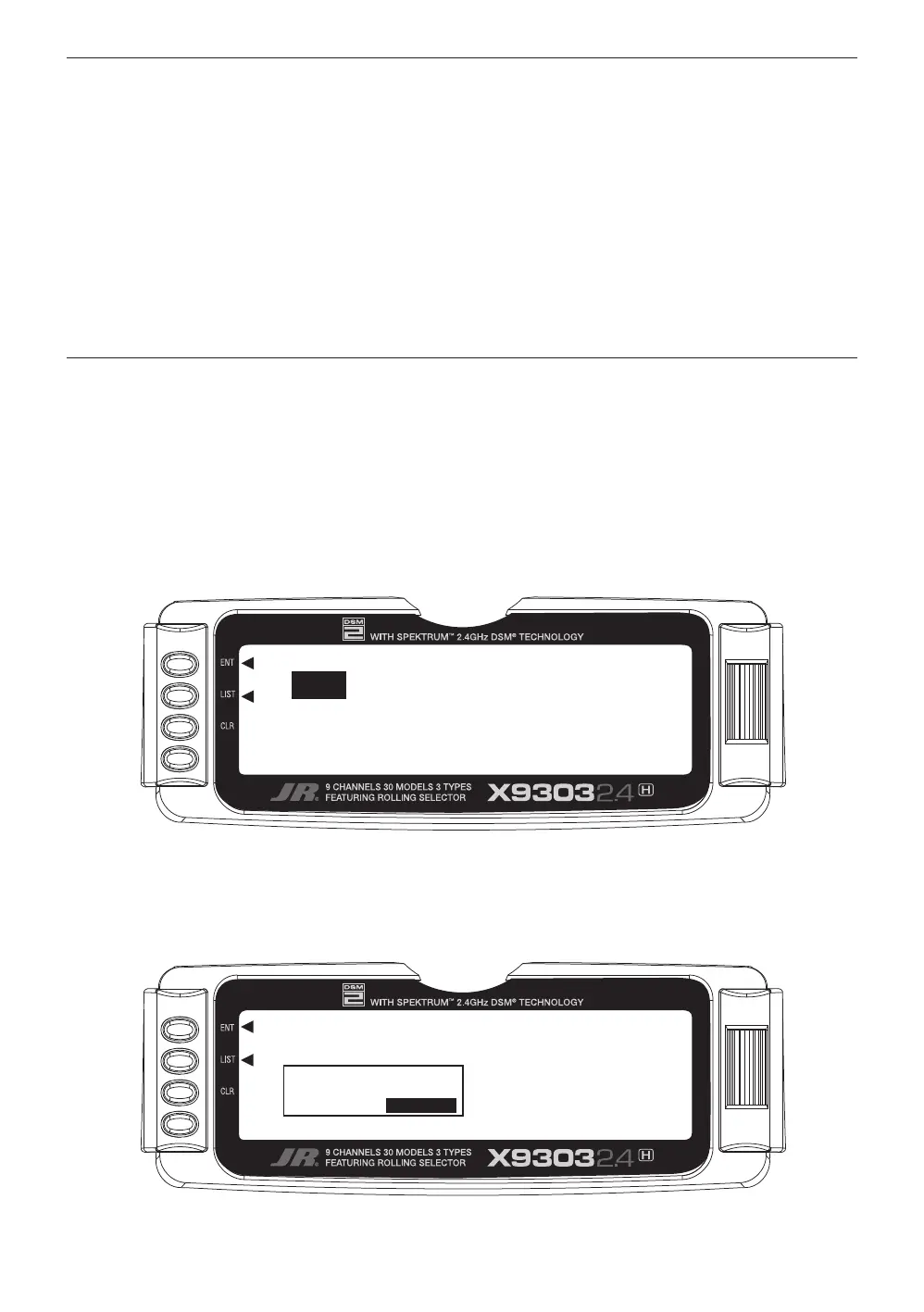

access Flight Modes while flying. The example below
shows that the GEAR switch has been selected.
Once Flight Modes have been activated, two additional
sets of Throttle and Pitch curves numbered 3 and 4 will
appear in the Function Mode.
RUD TRIM:COM
GEAR AUX2 AUX3 AUX4
GEAR AUX2 AUX3 FMOD
SW SW LEV SW
OUT: ACT ACT ACT ACT
[Devic. SEL]
F.MOD THRO Pit.
EXTRA HOLD TRIM
INH HOLD PitT
SW LEV
RUD TRIM:COM
GEAR AUX2 AUX3 AUX4
GEAR AUX2 AUX3 FMOD
SW SW LEV SW
OUT: ACT ACT ACT ACT
[Devic. SEL]
F.MOD THRO Pit.
EXTRA HOLD TRIM
INH HOLD PitT
SW LEV
INH RUD D/R
AIL D/R HOLD SW
ELE D/R GEAR SW
To Next Page
