PIT. CURV/PITCH CURVES Function
Accessing the Pitch Curve Function
H-25
Adjustment of the pitch curve is very similar to the throttle
curve adjustment described in the preceding section. A
thorough understanding of the Throttle Curve Section will
make pitch curve adjustment easier to understand. There
are up to six independent types of pitch curves available:
Normal, Stunt-1, Stunt-2, Stunt-3, and Stunt-4 (Stunt 3
and 4 optional) and Hold. Each pitch curve contains up to
seven adjustable points: L, 1, 2, 3, 4, 5, and H.
Note: The pitch curve for the Throttle Hold
function and Stunt Modes 3 and 4 can only be
set if these functions have been activated in the
System mode previously.
Note: In each curve, the factory setting indicates INH
for points 1, 2, 4 and 5. These values are 16.5%,
33%, 66.5% and 83.5% respectively if no value
changes are made to any other points. If any of the
other points have been changed while these points
were inhibited, the inhibited points will also change
to plot a smooth curve.
1. Place the transmitter switch in the ON position.
2. Press the LIST key to enter the Function mode.
3. Use the Selector to highlight the PIT. CURV function,
and press the Selector to access.
Note: The Letter, numbers directly to the
right of PIT. CURV at the top right portion of
the LCD is the current flight mode switch position.
(N, 1, 2, 3, 4 or H).
Use NORMAL for hover curves and 1 through 4 (3 and
4 optional) for stunt curves. We will concentrate on the
hovering curve during this example.
4. Move the Rolling Selector and highlight the desired
Pitch point to be adjusted. Press the Rolling Selector
to open the point value, and then roll the Rolling
Selector to increase and decrease the point value.
5. To set curves for flight mode switch position 1,
highlight NORM with the Selector, press,
then select ST-1 from the drop down box
and repeat steps 4 and 5.
6. To set curves for flight mode switch positions 2
through 5, repeat step 6 above.
7. To exit the Pitch Curve function, highlight the LIST with
the Selector, and press.
If you want to keep this from happening, highlight each
point and press the Rolling Selector twice to activate
each of the points. Repeat as necessary. The values
for each of these points can then be fully adjusted by
the Rolling Selector. To inhibit the points, highlight
the desired point with the Rolling Selector, press the
Selector to open the point, then press the clear key
(CLR) to inhibit.

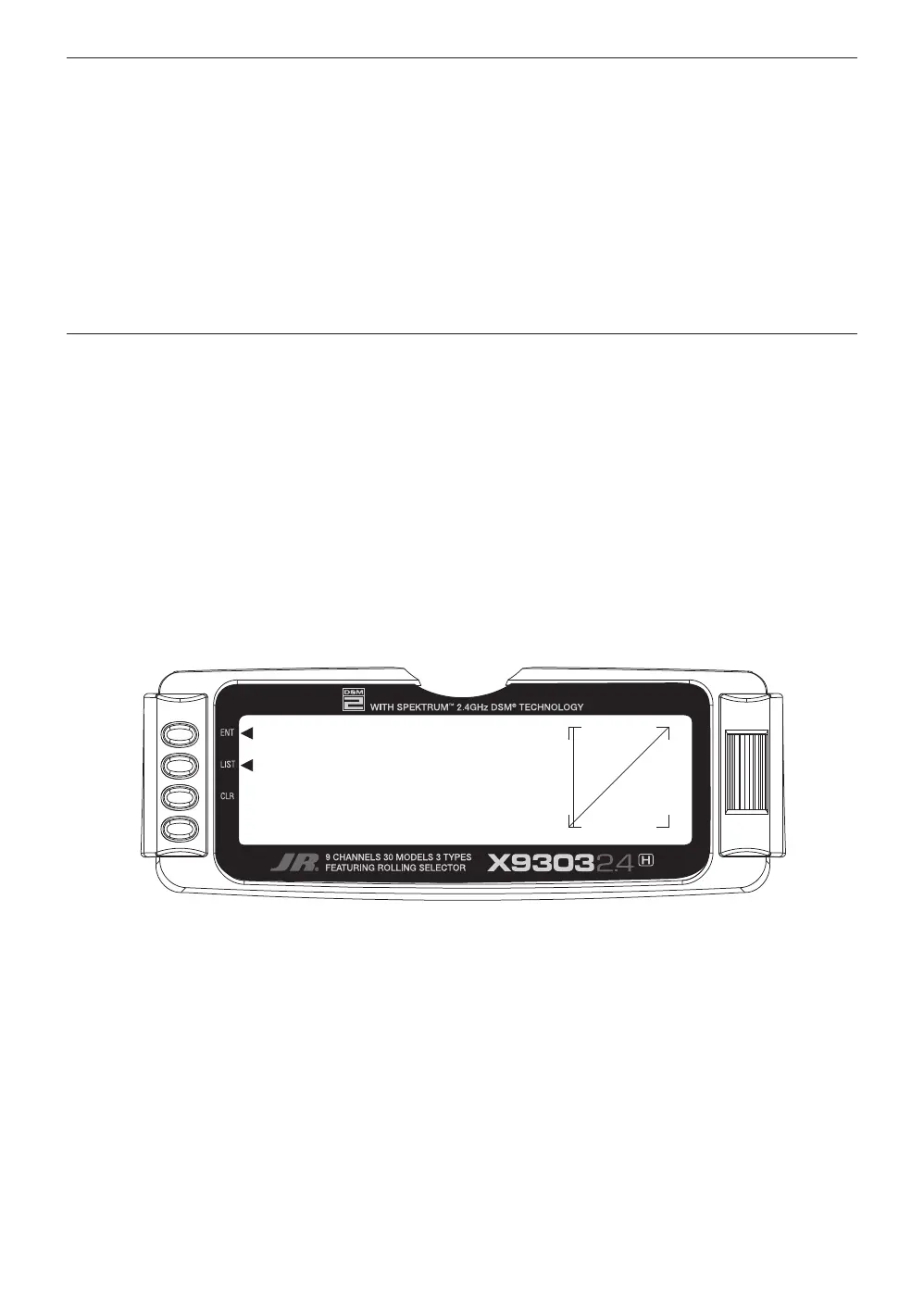

[PIT. CURV]◊N
Point-L
Point-1
Point-2
Point-3
Point-4
Point-5
Point-H
0.0%
INH
INH
50.0%
INH
INH
100.0%
NORM
EXP OFF
IN 5
OUT 5
L 1 2 3 4 5 H
