GOVERNOR- GOVERNOR FUNCTION
H-32
Note: The GOVERNOR function is only listed/shown
in the Function Mode when first activated/selected in
the Device Select function in System Mode.
The X9303 2.4’s Governor function is designed to be used
with most currently available Governors on the Market.
The Governor function allows the Governor rpm values
to be set for each of the Active Flight modes, and will
automatically change the Governor rpm values as set
when the Flight Mode switch is moved through each of
the active flight modes.
The value range in the Governor function is +/- 0%–
125%, and its values follow the Travel Adjust values
exactly. In other words, a desired Travel Adjust value of
+55% would also be +55% in the Governor function.
The Governor program, when activated in System Mode,
functions through the GEAR channel (Channel 5) of
the X9303 2.4. When connecting a Governor to the
receiver, the rpm signal lead from the Governor would be
connected to the Gear (CH5) channel for proper operation.
Accessing the Governor Function
1. Place the transmitter switch in the ON position.
2. Press the LIST key to enter the Function mode.
3. Move the Selector and highlight the GOVERNOR
function. Press the Selector to access.
4. Highlight the desired value to be adjusted with the
Selector, and then press to access the value. Roll the
Selector to adjust the value as needed.
5. To exit the Governor function, move the Selector to
highlight LIST, and press.
Note: Flight Modes ST-3 and ST-4 will only be
shown if activated previously in System Mode.
For Governors like the Model Avionics “Throttle Jockey,”
you would leave the Travel Adjust values for the Gear
channel at +/-100%, and you would then set your
Governor rpm values from the rpm calculator in the
Governor function.
For other brand Governors, you would also leave
the Travel Adjust values for the Gear Channel (CH5)
at +/-100%. You could then increase the values in the
Governor function above +/-100% up to +/-125% to
increase the rpm remotely from the preset rpm selected at
the Governor.
Note: To turn off the Governor Function for engine
tuning, etc. it will be necessary to return the value for
the desired flight mode to zero. Remember the value
so it can be re-entered after tuning.

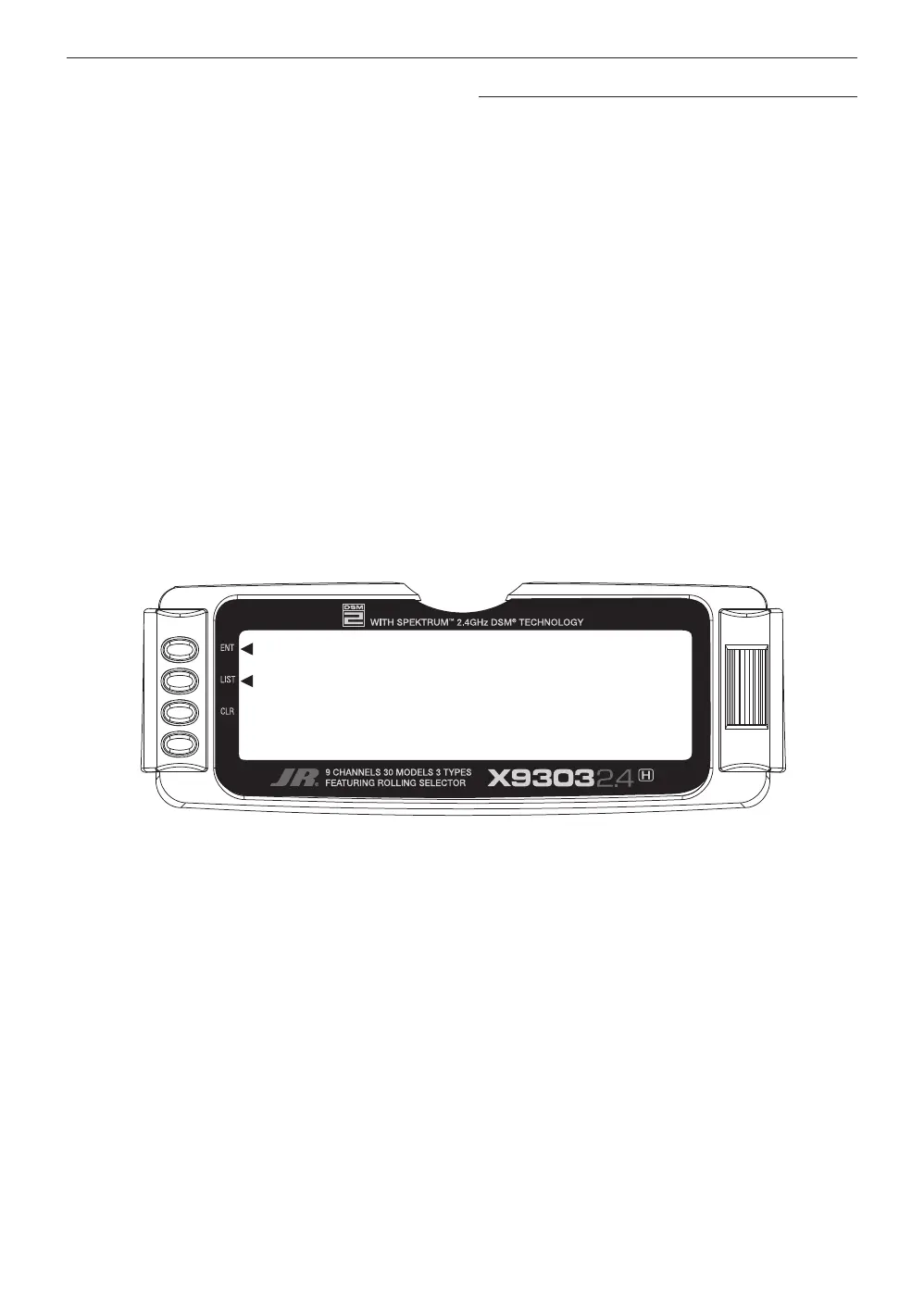

[GOVERNOR]
NORM: + 55%
ST-1: + 80%
ST-2: + 85%
ST-3: + 0%
ST-4: + 0%
HOLD: + 0%
◊
