RUD TRIM: COM (Flight Mode Trim Options)
SWITCH ASSIGNMENTS
H-11
The Rud Trim function is designed to allow the pilot to
choose between 1 set of trim settings for the Rudder
channel only in all flight modes (COM) or a separate set
of trim settings for each of the flight modes (FM).
The RUD TRIM: COM parameter can be toggled back
and forth between COM and FM by pressing the Rolling
Selector when COM or FM is highlighted. If left in
the COM mode, the digital trim for rudder is Common
or shared by the 3 Flight Modes. If FM is selected, the
X9303 2.4 keeps track of the digital trims independently
for each Flight Mode, which means the pilot can re-trim
the rudder using the digital trims for each Flight Mode.
To change one or more switch assignments:
1. From within the Devic.SEL function, use the
Selector to highlight and select THRO HOLD, PIT
Trim, GEAR, AUX2, AUX3, or AUX4 along the top
line of the display.
2. Once a switch is selected, a list of available
replacement switches is displayed. Highlight and select
the desired switch with the Selector.
The X9303 2.4 provides the ability to change the
standard default switch assignments for THRO Hold,
PIT Trim, GEAR, AUX2, AUX3, and AUX4. Changing the
assignments may be a matter of preference or to help
overcome a disability in one hand. In any event, the
standard switch assignments may be changed in Devic.
SEL function contained in the SYSTEM Menu.
3. Repeat for as many switches as desired.

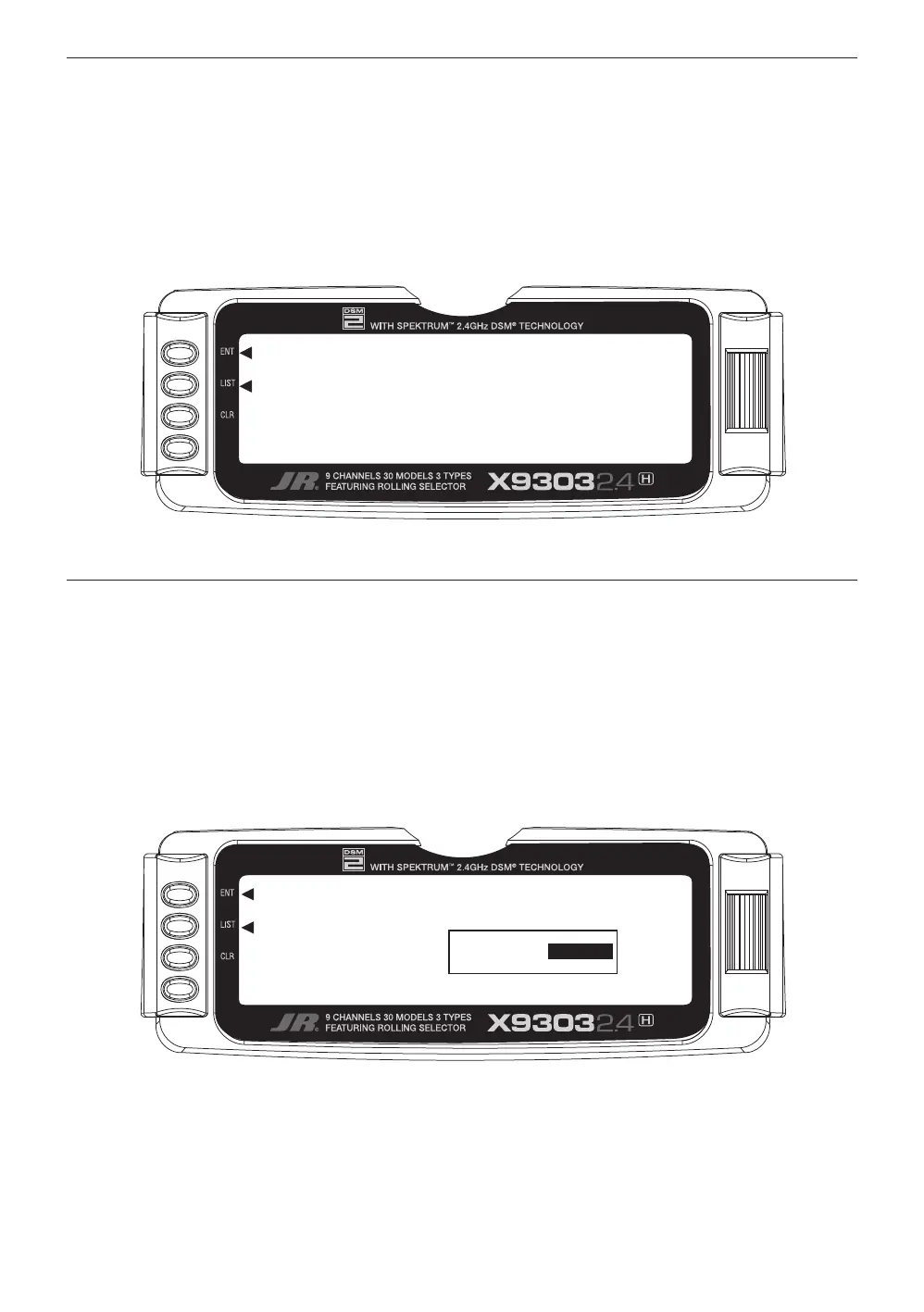

[Devic. SEL]
F.MOD THRO Pit.
EXTRA HOLD TRIM
INH HOLD PitT
SW LEV
RUD TRIM:FM
OUT: ACT ACT ACT ACT
GEAR AUX2 AUX3 FMOD
SW SW LEV SW
GEAR AUX2 AUX3 AUX4
RUD TRIM:COM
GEAR AUX2 AUX3 AUX4
GEAR AUX2 AUX3 FMOD
SW SW LEV SW
OUT: ACT ACT ACT ACT
[Devic. SEL]
F.MOD THRO Pit.
EXTRA HOLD TRIM
INH HOLD PitT
SW LEV
AIL D/R HOLD SW
ELE D/R GEAR SW
RUD D/R
